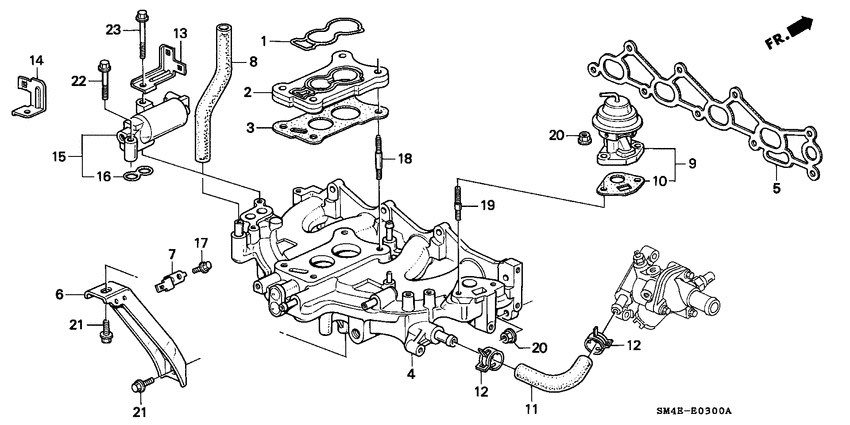

Intake manifold (CARBURETOR) Diagram Honda ACCORD
- Year
- 1992
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.0
- abs
- +
- area code
- KS
- left-hand drive
- +
- sunroof
- +
- catalyst
- +
- made in japan
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16105-PJ7-000
O-ring
|
16105-PJ7-000 |
— | ||
|
2
|
2
16210-PT0-000
Insulator
|
16210-PT0-000 |
— | ||
|
3
|
3
16215-PT0-003
Packing
|
16215-PT0-003 |
— | ||
|
3
|
3
16215-PT0-004
Packing
|
16215-PT0-004 |
— | ||
|
4
|
4
17100-PT1-X00
Manifold comp
|
17100-PT1-X00 |
— | ||
|
5
|
5
17105-PT0-004
Packing
|
17105-PT0-004 |
— | ||
|
5
|
5
17105-PT0-003
Packing
|
17105-PT0-003 |
— | ||
|
6
|
6
17125-PT1-X00
Stay comp
|
17125-PT1-X00 |
— | ||
|
7
|
7
17133-PT0-000
Stay
|
17133-PT0-000 |
— | ||
|
8
|
8
17510-PT0-000
Tube
|
17510-PT0-000 |
— | ||
|
9
|
9
18011-PT1-000
Valve set
|
18011-PT1-000 |
— | ||
|
10
|
10
18715-PB2-000 GASKET, EGR VALVE (ISHINO GASKET) |
18715-PB2-000 |
from US $6.51 |
||
|
11
|
11
19504-PT0-000 HoseBYPASS IN. |
19504-PT0-000 |
US $5.32 |
||
|
12
|
12
19513-PE0-003 ClampWATER HOSE (21.7MM) (CHUO SPRING) |
19513-PE0-003 |
from US $2.75 |
||
|
13
|
13
32753-PT0-000
Stay
|
32753-PT0-000 |
— | ||
|
15
|
15
36450-PT1-X01
Valve assy.
|
36450-PT1-X01 |
— | ||
|
16
|
16
36455-PM3-J01 PackingELECTRONIC AIR CONTROL VALVE (TEC) |
36455-PM3-J01 |
from US $3.06 |
||
|
17
|
17
90023-PE0-000
Bolt
|
90023-PE0-000 |
— | ||
| replacement | |||||
|
17
|
17
95701-060-100-4 BoltFLANGE, 6X10 |
95701-060-100-4 |
US $0.52 |
||
|
18
|
18
90064-PH1-300
Bolt
|
90064-PH1-300 |
— | ||
|
19
|
19
92900-08022-0B BoltSTUD, 8X22 |
92900-08022-0B |
from US $0.74 |
||
|
20
|
20
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
21
|
21
95701-080-180-8 Bolt, FLANGE, 8X18 |
95701-080-180-8 |
from US $0.59 |
||
|
22
|
22
95701-080-400-8 BoltFLANGE, 8X40 |
95701-080-400-8 |
from US $0.74 |
||
|
23
|
23
95701-080-500-8 BoltFLANGE, 8X50 |
95701-080-500-8 |
from US $0.81 |
||
