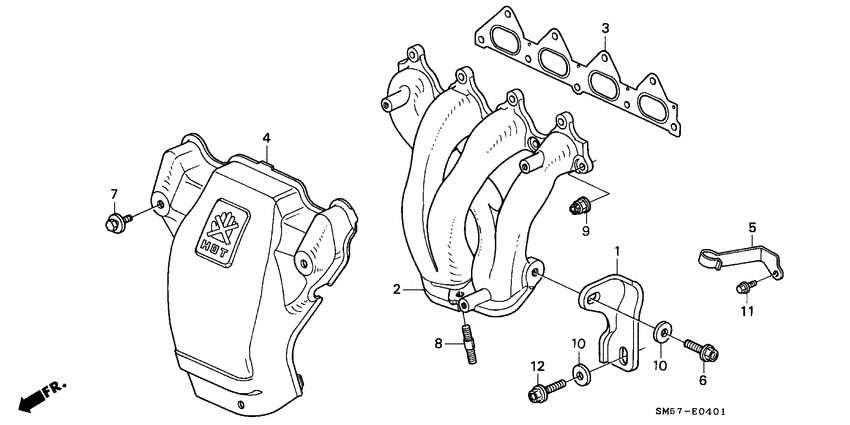

Exhaust manifold (2.2LXI) Diagram Honda ACCORD
- Year
- 1992
- Model code
- ACCORD WAGON
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 5
- grade
- 2.2LXI
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11942-PT2-000
Stay
|
11942-PT2-000 |
— | ||
|
2
|
2
18100-PT6-A00
Manifold
|
18100-PT6-A00 |
— | ||
|
3
|
3
18115-PT0-003
Gasket
|
18115-PT0-003 |
— | ||
| replacement | |||||
|
3
|
3
18115-PT0-004
Gasket
|
18115-PT0-004 |
— | ||
|
3
|
3
18115-PT0-004
Gasket
|
18115-PT0-004 |
— | ||
|
4
|
4
18120-PT6-A00
Cover comp. a
|
18120-PT6-A00 |
— | ||
|
5
|
5
32747-PT0-010
Clamp g
|
32747-PT0-010 |
— | ||
|
6
|
6
90010-PE2-900 BoltSPECIAL, 10X22 |
90010-PE2-900 |
US $3.02 |
||
|
7
|
7
90015-PT0-B00
Bolt-washer
|
90015-PT0-B00 |
— | ||
| replacement | |||||
|
7
|
7
90015-PT0-J00 Bolt-washer8X14 |
90015-PT0-J00 |
US $1.70 |
||
|
8
|
8
90065-PC1-300 BoltSTUD, 10X34.5 |
90065-PC1-300 |
US $9.77 |
||
|
9
|
9
90212-PD2-003
Nut
|
90212-PD2-003 |
— | ||
| replacement | |||||
|
9
|
9
90212-RCA-A01 NutSELF-LOCK, 8MM |
90212-RCA-A01 |
from US $2.86 |
||
|
10
|
10
90451-PE2-000 WasherSPECIAL, 11X28 |
90451-PE2-000 |
US $12.39 |
||
|
11
|
11
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
12
|
12
95701-100-250-8 BoltFLANGE, 10X25 |
95701-100-250-8 |
from US $0.81 |
||
