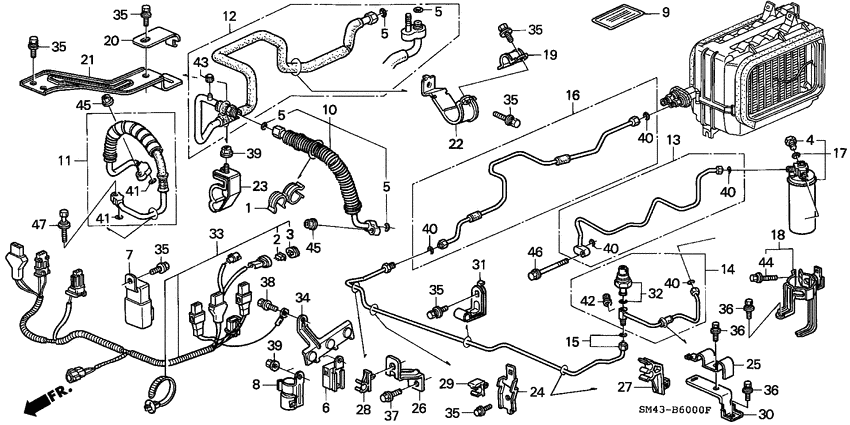

Hoses/pipes Diagram Honda ACCORD
- Year
- 1991
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.0I
- area code
- KB
- left-hand drive
- +
- made in usa
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17304-PT0-004 Clamp aHOT AIR PIPE |
17304-PT0-004 |
US $4.06 |
||
|
4
|
4
38642-692-013
Plug
|
38642-692-013 |
— | ||
|
5
|
5
38648-692-660 O-ring5/8" |
38648-692-660 |
US $2.87 |
||
|
6
|
6
38725-SA5-003
Diode assy.
|
38725-SA5-003 |
— | ||
|
8
|
8
39798-SE0-003
Relay assy
|
39798-SE0-003 |
— | ||
| replacement | |||||
|
8
|
8
80490-SM4-A01
Relay assy
|
80490-SM4-A01 |
— | ||
|
10
|
10
80310-SM1-A21 Hose comp.SUCTION (NICHIRIN INC.) |
80310-SM1-A21 |
US $230.40 |
||
|
11
|
11
80315-SM1-A21
Hose comp.
|
80315-SM1-A21 |
— | ||
|
12
|
12
80321-SM1-A17 Pipe compSUCTION (FAYETTE) |
80321-SM1-A17 |
US $131.84 |
||
|
13
|
13
80331-SM1-A16 PipeCONDENSER (FAYETTE) |
80331-SM1-A16 |
US $65.92 |
||
|
14
|
14
80341-SM1-A16 Pipe compRECEIVER (A) (FAYETTE) (WITH VALVE) |
80341-SM1-A16 |
US $92.16 |
||
|
15
|
15
80342-SM4-A05 Pipe bRECEIVER (SAK) |
80342-SM4-A05 |
US $87.04 |
||
|
16
|
16
80343-SM4-G00 Pipe cRECEIVER |
80343-SM4-G00 |
US $78.08 |
||
|
17
|
17
80351-SM1-A11 Receiver compPARKER |
80351-SM1-A11 |
US $163.84 |
||
|
18
|
18
80352-SM4-A00
Bracket
|
80352-SM4-A00 |
— | ||
|
19
|
19
80361-SM4-A00
Clamp
|
80361-SM4-A00 |
— | ||
|
20
|
20
80362-SM4-A00
Clamp
|
80362-SM4-A00 |
— | ||
|
21
|
21
80363-SM4-A00
Stay
|
80363-SM4-A00 |
— | ||
|
22
|
22
80364-SM4-A00
Stay
|
80364-SM4-A00 |
— | ||
|
23
|
23
80365-SM4-A00
Clamp
|
80365-SM4-A00 |
— | ||
|
24
|
24
80367-SM4-A00
Stay
|
80367-SM4-A00 |
— | ||
|
25
|
25
80381-SM4-A00
Clamp
|
80381-SM4-A00 |
— | ||
|
27
|
27
80383-SM4-003
Clip c
|
80383-SM4-003 |
— | ||
|
29
|
29
80385-SM4-A00
Clamp
|
80385-SM4-A00 |
— | ||
|
30
|
30
80386-SM4-A00
Stay
|
80386-SM4-A00 |
— | ||
|
32
|
32
80440-SM4-003 SwitchDUAL PRESSURE (FUJI) |
80440-SM4-003 |
US $45.70 |
||
|
33
|
33
80460-SM4-Y03
Harness
|
80460-SM4-Y03 |
— | ||
|
34
|
34
80491-SM4-A00
Bracket
|
80491-SM4-A00 |
— | ||
|
35
|
35
90003-PG7-660
Bolt-washer
|
90003-PG7-660 |
— | ||
| replacement | |||||
|
35
|
35
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
36
|
36
90003-PG7-660
Bolt-washer
|
90003-PG7-660 |
— | ||
| replacement | |||||
|
36
|
36
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
38
|
38
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
||
|
39
|
39
90308-SD2-A00 NutFLANGE, 6MM (DACRO COATING) |
90308-SD2-A00 |
US $4.45 |
||
|
40
|
40
91301-SM4-A00 O-ring8MM |
91301-SM4-A00 |
US $1.75 |
||
|
41
|
41
91315-SE0-000 O-ring1/2" |
91315-SE0-000 |
US $2.10 |
||
|
42
|
42
91638-SF1-A11
Cap
|
91638-SF1-A11 |
— | ||
|
43
|
43
91639-SF1-A11
Cap
|
91639-SF1-A11 |
— | ||
|
44
|
44
93403-060-200-8 Bolt-washer6X20 |
93403-060-200-8 |
from US $0.62 |
||
|
45
|
45
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
46
|
46
95701-060-400-7 BoltFLANGE, 6X40 |
95701-060-400-7 |
from US $0.59 |
||
|
47
|
47
95701-080-450-8 BoltFLANGE, 8X45 |
95701-080-450-8 |
from US $0.81 |
||
