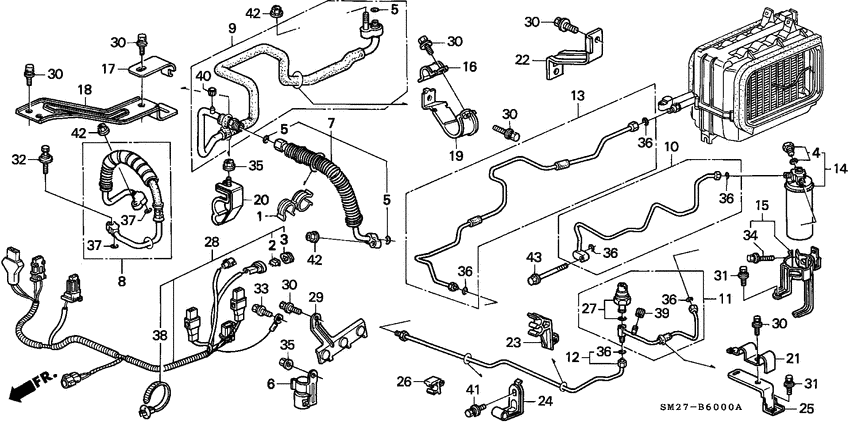

Air conditioner (HOSES/PIPES; LH) Diagram Honda ACCORD
- Year
- 1993
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- F20A
- transmission
- 5MT
- Number of doors
- 2
- grade
- 2.0I
- area code
- KG
- left-hand drive
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17304-PT0-004 Clamp aHOT AIR PIPE |
17304-PT0-004 |
US $4.06 |
||
|
2
|
2
32147-SF1-003 ConnectorDIODE(3P) |
32147-SF1-003 |
from US $11.62 |
||
|
3
|
3
32148-SF1-003 RubberSEAL |
32148-SF1-003 |
US $2.17 |
||
|
4
|
4
38642-692-661
Plug
|
38642-692-661 |
— | ||
|
5
|
5
38648-692-660 O-ring5/8" |
38648-692-660 |
US $2.87 |
||
|
6
|
6
39798-SE0-003
Relay assy
|
39798-SE0-003 |
— | ||
| replacement | |||||
|
6
|
6
80490-SM4-A01
Relay assy
|
80490-SM4-A01 |
— | ||
|
7
|
7
80310-SM1-A23
Hose comp.
|
80310-SM1-A23 |
— | ||
|
8
|
8
80315-SM1-A23
Hose comp.
|
80315-SM1-A23 |
— | ||
|
9
|
9
80321-SM1-A21
Pipe comp
|
80321-SM1-A21 |
— | ||
|
10
|
10
80331-SM1-A18
Pipe
|
80331-SM1-A18 |
— | ||
|
11
|
11
80341-SM1-A18
Pipe comp
|
80341-SM1-A18 |
— | ||
|
12
|
12
80342-SM1-A19
Pipe b
|
80342-SM1-A19 |
— | ||
|
13
|
13
80343-SM4-G02
Pipe c
|
80343-SM4-G02 |
— | ||
|
14
|
14
80351-SM1-A13 Receiver compPARKER |
80351-SM1-A13 |
US $163.84 |
||
|
15
|
15
80352-SM4-A02
Bracket
|
80352-SM4-A02 |
— | ||
|
16
|
16
80361-SM4-A00
Clamp
|
80361-SM4-A00 |
— | ||
|
17
|
17
80362-SM4-A00
Clamp
|
80362-SM4-A00 |
— | ||
|
18
|
18
80363-SM4-A00
Stay
|
80363-SM4-A00 |
— | ||
|
19
|
19
80364-SM4-A00
Stay
|
80364-SM4-A00 |
— | ||
|
20
|
20
80365-SM4-A00
Clamp
|
80365-SM4-A00 |
— | ||
|
21
|
21
80381-SM4-A00
Clamp
|
80381-SM4-A00 |
— | ||
|
22
|
22
80382-SM4-A00
Stay
|
80382-SM4-A00 |
— | ||
|
23
|
23
80383-SM4-003
Clip c
|
80383-SM4-003 |
— | ||
|
24
|
24
80385-SM4-A00
Clamp
|
80385-SM4-A00 |
— | ||
|
25
|
25
80386-SM4-A00
Stay
|
80386-SM4-A00 |
— | ||
|
26
|
26
80387-SM4-A01 ClipRECEIVER PIPE |
80387-SM4-A01 |
US $2.37 |
||
|
27
|
27
80440-SM4-003 SwitchDUAL PRESSURE (FUJI) |
80440-SM4-003 |
US $45.70 |
||
|
28
|
28
80460-SM4-A05
Harness
|
80460-SM4-A05 |
— | ||
|
29
|
29
80491-SM4-A00
Bracket
|
80491-SM4-A00 |
— | ||
|
30
|
30
90003-PG7-660
Bolt-washer
|
90003-PG7-660 |
— | ||
| replacement | |||||
|
30
|
30
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
31
|
31
90012-PC6-000 BoltSPECIAL, 6X12 (+) (DACRO COATING) |
90012-PC6-000 |
US $1.75 |
||
|
32
|
32
90128-SM4-000
Bolt
|
90128-SM4-000 |
— | ||
|
33
|
33
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
||
|
34
|
34
90199-SM4-000
Screw-washer
|
90199-SM4-000 |
— | ||
|
35
|
35
90308-SD2-A00 NutFLANGE, 6MM (DACRO COATING) |
90308-SD2-A00 |
US $4.45 |
||
|
36
|
36
91301-SM4-A00 O-ring8MM |
91301-SM4-A00 |
US $1.75 |
||
|
37
|
37
91315-SE0-000 O-ring1/2" |
91315-SE0-000 |
US $2.10 |
||
|
38
|
38
91547-SF4-003 BandWIRE HARNESS (BLUE) (123.5MM) |
91547-SF4-003 |
from US $5.03 |
||
|
39
|
39
91638-SF1-A11
Cap
|
91638-SF1-A11 |
— | ||
|
40
|
40
91639-SF1-A11
Cap
|
91639-SF1-A11 |
— | ||
|
41
|
41
93403-060-160-7 Bolt-washer6X16 |
93403-060-160-7 |
from US $0.59 |
||
|
42
|
42
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
43
|
43
95701-060-400-7 BoltFLANGE, 6X40 |
95701-060-400-7 |
from US $0.59 |
||
