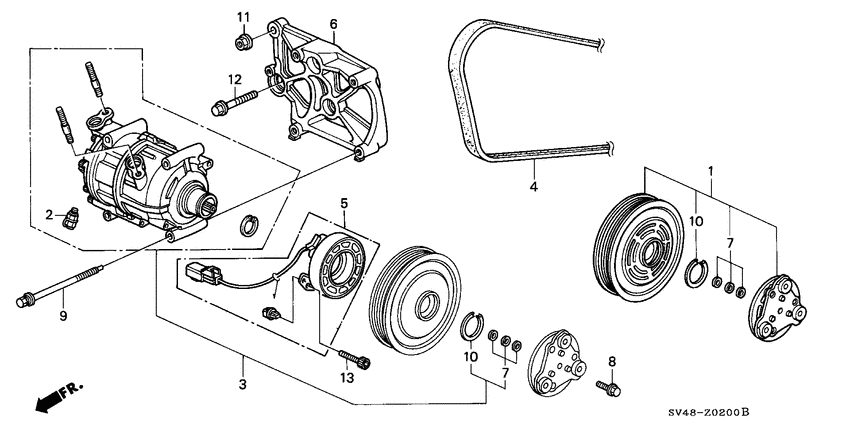

Air conditioner (COMPRESSOR; HADSYS) Diagram Honda ACCORD
- Year
- 1995
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX
- area code
- KU
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38011-P0A-A04
Clutch set
|
38011-P0A-A04 |
— | ||
|
2
|
2
38801-P0A-006
Valve sub assy.
|
38801-P0A-006 |
— | ||
|
3
|
3
38810-P0A-006
Compressor comp.
|
38810-P0A-006 |
— | ||
|
4
|
4
38920-P0A-003
Belt
|
38920-P0A-003 |
— | ||
| replacement | |||||
|
4
|
4
38920-P0A-509
Belt
|
38920-P0A-509 |
— | ||
|
4
|
4
38920-P0A-004
Belt
|
38920-P0A-004 |
— | ||
| replacement | |||||
|
4
|
4
38920-P0A-J01
Belt
|
38920-P0A-J01 |
— | ||
|
5
|
5
38924-P0A-A04
Solenoid comp.
|
38924-P0A-A04 |
— | ||
|
6
|
6
38930-PT2-N00
Bracket
|
38930-PT2-N00 |
— | ||
|
7
|
7
38951-P0A-006
Shim set
|
38951-P0A-006 |
— | ||
|
8
|
8
90001-P0A-006
Bolt
|
90001-P0A-006 |
— | ||
|
9
|
9
90380-PT0-000
Bolt-washer
|
90380-PT0-000 |
— | ||
|
10
|
10
90602-PT2-006
Circlip
|
90602-PT2-006 |
— | ||
|
11
|
11
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
12
|
12
95701-100-300-8 BoltFLANGE, 10X30 |
95701-100-300-8 |
from US $0.81 |
||
|
13
|
13
96600-060-201-8 BoltSOCKET, 6X20 |
96600-060-201-8 |
US $0.59 |
||
