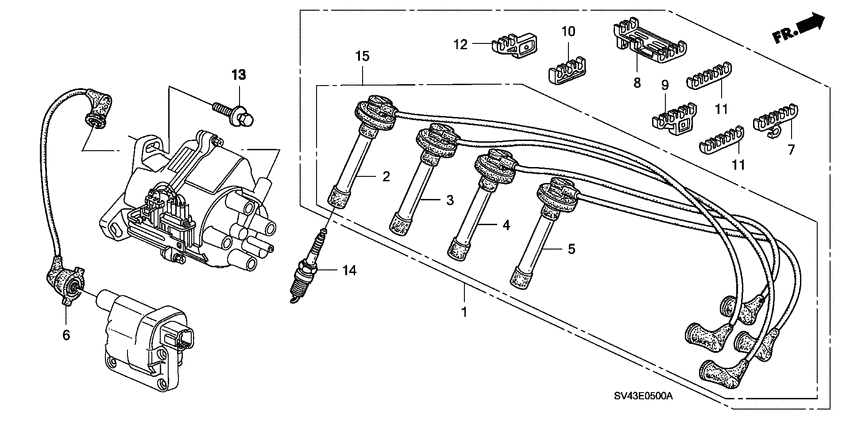

High tension cord/ spark plug Diagram Honda ACCORD
- Year
- 1995
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20B
- transmission
- 5MT
- Number of doors
- 4
- grade
- LX
- abs
- +
- area code
- KB
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32700-P0K-G00
Cord assy
|
32700-P0K-G00 |
— | ||
|
2
|
2
32701-P0J-A00
Cord comp
|
32701-P0J-A00 |
— | ||
|
3
|
3
32702-P0J-A00
Cord comp
|
32702-P0J-A00 |
— | ||
|
4
|
4
32703-P0J-A00
Cord comp
|
32703-P0J-A00 |
— | ||
|
5
|
5
32704-P0J-A00
Cord comp
|
32704-P0J-A00 |
— | ||
|
7
|
7
32765-P0J-A02
Clamp a
|
32765-P0J-A02 |
— | ||
|
8
|
8
32766-P0J-A02 Clamp bHIGH TENSION CORD |
32766-P0J-A02 |
US $3.57 |
||
|
11
|
11
32767-PT0-000
Grommet
|
32767-PT0-000 |
— | ||
|
13
|
13
90003-P01-000 Bolt-washer8X28 |
90003-P01-000 |
from US $3.58 |
||
|
14
|
14
98079-5514G PlugSPARK (ZFR5F-11) (NGK) |
98079-5514G |
from US $4.57 |
||
|
14
|
14
98079-5614G PlugSPARK (ZFR6F-11) (NGK) |
98079-5614G |
from US $5.20 |
||
|
14
|
14
98079-5615G PlugSPARK (KJ20CR-L11) (DENSO) |
98079-5615G |
from US $5.31 |
