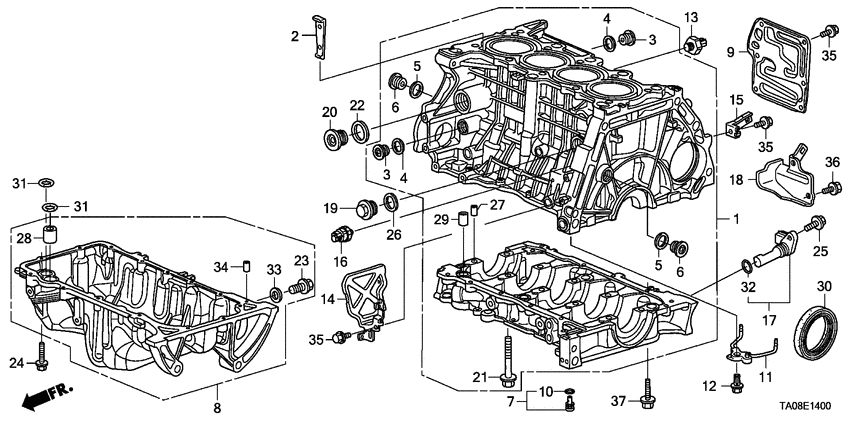

Cylinder block/oil pan (2.0L) Diagram Honda ACCORD
- Year
- 2008
- Model code
- ACCORD
- Sales region
- General
- Engine
- R20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.0 EX
- abs
- +
- area code
- KW
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11000-R60-U00 Block assyCYLINDER |
11000-R60-U00 |
US $1,804.80 |
||
|
2
|
2
11103-RNA-A01 PlatePARTITION |
11103-RNA-A01 |
US $4.90 |
||
|
3
|
3
11105-RNA-A00 BoltSEALING, 20MM |
11105-RNA-A00 |
US $3.22 |
||
|
4
|
4
11106-RNA-A00
Washer
|
11106-RNA-A00 |
— | ||
|
5
|
5
11107-PWA-300 WasherSEALING, 24MM |
11107-PWA-300 |
from US $1.48 |
||
|
6
|
6
11107-RNA-A00 BoltSEALING, 24MM |
11107-RNA-A00 |
US $4.20 |
||
|
7
|
7
11135-RZP-000 Orifice assyLOWER BLOCK |
11135-RZP-000 |
US $3.08 |
||
|
8
|
8
11200-RZP-020 Pan assyOIL |
11200-RZP-020 |
US $212.48 |
||
|
9
|
9
11850-RNA-A00 Cover comp.BREATHER |
11850-RNA-A00 |
US $12.54 |
||
|
10
|
10
15142-PE0-000 O-ring4.8X1.9 |
15142-PE0-000 |
from US $1.32 |
||
|
11
|
11
15280-RZP-000 Body compOIL JET |
15280-RZP-000 |
US $17.54 |
||
|
12
|
12
15290-RZP-000 Bolt compOIL JET |
15290-RZP-000 |
US $13.82 |
||
|
13
|
13
30530-RNA-A01 Sensor compKNOCK |
30530-RNA-A01 |
from US $55.32 |
||
|
14
|
14
32179-RZP-G00 InsulatorOIL PRESSURE SWITCH HEAT |
32179-RZP-G00 |
US $18.30 |
||
|
15
|
15
32747-R60-U00
Stay g
|
32747-R60-U00 |
— | ||
|
16
|
16
37241-RNA-A01 Switch assy, OIL PRESSUREOIL PRESSURE |
37241-RNA-A01 |
from US $33.05 |
||
|
17
|
17
37500-R60-U01 SENSOR ASSY CRANKCRANK |
37500-R60-U01 |
from US $53.68 |
||
|
18
|
18
37501-R60-U00 CoverCRANK SENSOR |
37501-R60-U00 |
US $8.26 |
||
|
19
|
19
90001-PM3-003 BoltDRAIN PLUG, 28MM |
90001-PM3-003 |
from US $7.16 |
||
|
20
|
20
90002-RNA-A00 BoltSEALING, 36MM |
90002-RNA-A00 |
US $4.20 |
||
|
21
|
21
90007-RNA-A01 Bolt-washer10X97 |
90007-RNA-A01 |
US $3.22 |
||
|
22
|
22
90008-RNA-000
Washer
|
90008-RNA-000 |
— | ||
|
23
|
23
90009-PY3-000 DRAIN PLUG BOLT, 14MM |
90009-PY3-000 |
from US $3.26 |
||
|
24
|
24
90016-RNA-A00 BoltFLANGE, 6X35 |
90016-RNA-A00 |
US $1.61 |
||
|
25
|
25
90028-PNB-003 BoltSPECIAL, 6X20.5(GUIDE) |
90028-PNB-003 |
US $1.63 |
||
|
26
|
26
90401-PR4-000 WasherSEALING, 28MM |
90401-PR4-000 |
from US $2.18 |
||
|
27
|
27
90701-PD2-000 Dowel pin12X14 |
90701-PD2-000 |
from US $2.59 |
||
|
28
|
28
90703-PE0-000 Dowel pin18X22 |
90703-PE0-000 |
from US $3.29 |
||
|
29
|
29
90705-RNA-A00 Dowel pin20X22 |
90705-RNA-A00 |
from US $2.45 |
||
|
30
|
30
91214-PWA-003 Oil seal80X98X10 (NOK) |
91214-PWA-003 |
from US $13.87 |
||
|
30
|
30
91214-RTA-004 Oil seal80X98X10 (ARAI) |
91214-RTA-004 |
US $17.51 |
||
| replacement | |||||
|
30
|
30
91214-RNB-A01 Oil seal (80x98x10) |
91214-RNB-A01 |
from US $21.90 |
||
|
31
|
31
91301-RNA-A02 O-ring20X2.3 (ARAI) |
91301-RNA-A02 |
US $1.89 |
||
|
31
|
31
91301-RNA-A01 O-ring20X2.3 (NOK) |
91301-RNA-A01 |
from US $1.89 |
||
|
32
|
32
91333-PNC-006 O-ring |
91333-PNC-006 |
from US $1.33 |
||
|
33
|
33
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
|
34
|
34
94301-08100 Dowel pin8X10 |
94301-08100 |
from US $0.89 |
||
|
35
|
35
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
36
|
36
95701-060-140-5 BoltFLANGE, 6X14 |
95701-060-140-5 |
US $0.55 |
||
|
37
|
37
95701-080-350-8 BoltFLANGE, 8X35 |
95701-080-350-8 |
from US $0.74 |
||
