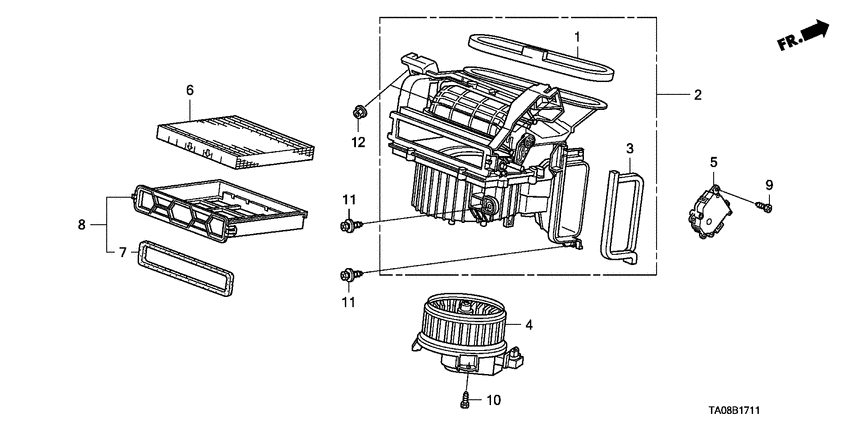

Heater blower (RH) Diagram Honda ACCORD
- Year
- 2010
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 4
- grade
- VTI
- abs
- +
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79022-TA0-A01 PackingAIR INTAKE |
79022-TA0-A01 |
US $3.36 |
||
|
2
|
2
79305-TA0-J21 Blower sub assy. |
79305-TA0-J21 |
US $171.52 |
||
|
3
|
3
79306-TA0-A01 SealBLOWER OUTER |
79306-TA0-A01 |
US $3.43 |
||
|
4
|
4
79310-TA0-J21 Motor assy.FAN |
79310-TA0-J21 |
US $206.08 |
||
|
5
|
5
79350-TA0-J21 Motor assy.FRESH & RECIRCULAR |
79350-TA0-J21 |
US $69.76 |
||
|
6
|
6
80292-SWA-003
Element
|
80292-SWA-003 |
— | ||
| replacement | |||||
|
6
|
6
80292-SWA-013 Filter |
80292-SWA-013 |
US $54.40 |
||
|
7
|
7
80293-SEA-941 SealFILTER |
80293-SEA-941 |
US $4.07 |
||
|
8
|
8
80297-SEA-941 Frame set |
80297-SEA-941 |
US $26.33 |
||
|
9
|
9
90127-S84-003 ScrewTAPPING, 4X16 |
90127-S84-003 |
US $1.05 |
||
|
10
|
10
90132-SR3-003 ScrewTAPPING, 5X16 |
90132-SR3-003 |
US $1.12 |
||
|
11
|
11
90155-SE0-003 ScrewTAPPING, 6X20 |
90155-SE0-003 |
US $1.54 |
||
|
12
|
12
90321-SV4-003 Nut-washer6MM (PAINT CUTTING) |
90321-SV4-003 |
US $1.47 |
||
