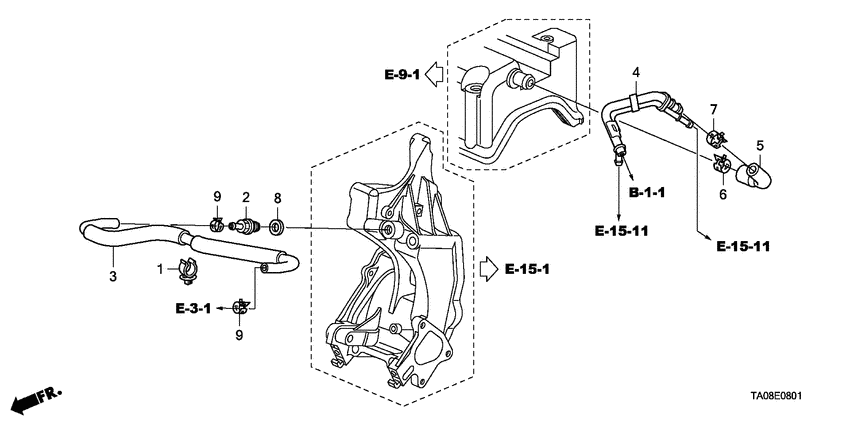

Breather tube (2.4L) Diagram Honda ACCORD
- Year
- 2009
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 4
- grade
- VTI-L
- abs
- +
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- side srs
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16725-PNA-003 Clamp aFUEL HOSE |
16725-PNA-003 |
from US $1.21 |
||
|
2
|
2
17130-RBB-A01 Valve assy.PCV |
17130-RBB-A01 |
from US $28.27 |
||
|
3
|
3
17131-R40-A00
Tube comp
|
17131-R40-A00 |
— | ||
|
4
|
4
17137-R40-A00 Pipe compBREATHER |
17137-R40-A00 |
US $19.33 |
||
|
5
|
5
17153-R40-A00
Tube
|
17153-R40-A00 |
— | ||
|
6
|
6
19512-PC6-003 ClipHOSE, 18.7MM |
19512-PC6-003 |
from US $3.18 |
||
|
7
|
7
91405-679-004 ClampTUBE (D17) |
91405-679-004 |
from US $3.92 |
||
| replacement | |||||
|
7
|
7
91405-PM5-004 ClampTUBE (D17) |
91405-PM5-004 |
from US $4.28 |
||
|
8
|
8
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
|
9
|
9
95002-412-500-4 ClampTUBE (D12.5) |
95002-412-500-4 |
from US $0.74 |
||
