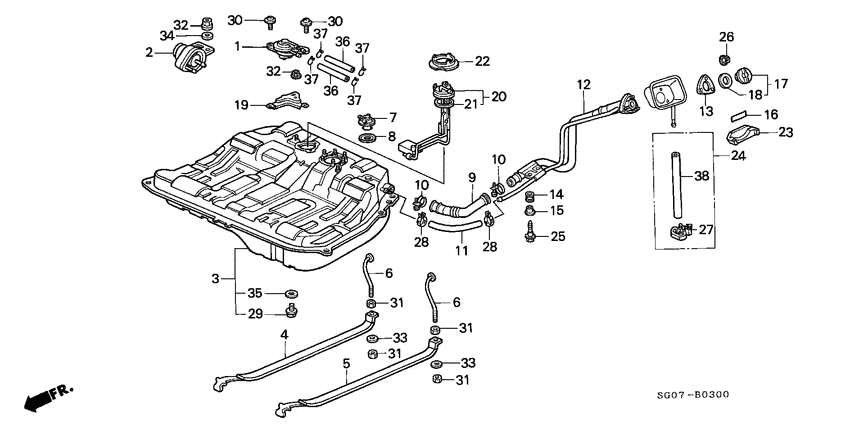

Fuel tank Diagram Honda LEGEND
- Year
- 1990
- Model code
- LEGEND COUPE
- Sales region
- General
- Engine
- C27A
- transmission
- 5MT
- Number of doors
- 2
- grade
- V6
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17371-SF1-A01
Valve
|
17371-SF1-A01 |
— | ||
|
3
|
3
17500-SG0-938
Tank comp.
|
17500-SG0-938 |
— | ||
|
4
|
4
17521-SG0-020
Band
|
17521-SG0-020 |
— | ||
|
5
|
5
17522-SG0-020
Band
|
17522-SG0-020 |
— | ||
|
6
|
6
17525-SG0-000 BoltFUEL TANK MOUNTING |
17525-SG0-000 |
US $6.16 |
||
|
7
|
7
17570-SD4-010
Valve
|
17570-SD4-010 |
— | ||
|
8
|
8
17575-SE0-000
Packing
|
17575-SE0-000 |
— | ||
|
9
|
9
17651-SG0-010
Tube
|
17651-SG0-010 |
— | ||
|
10
|
10
17652-SA5-000 ClipFILLER TUBE |
17652-SA5-000 |
US $5.48 |
||
|
11
|
11
17653-SG0-000
Tube
|
17653-SG0-000 |
— | ||
|
12
|
12
17660-SG0-040
Pipe comp
|
17660-SG0-040 |
— | ||
|
13
|
13
17662-SG0-000
Packing
|
17662-SG0-000 |
— | ||
|
14
|
14
17664-SE0-010
Bush
|
17664-SE0-010 |
— | ||
|
15
|
15
17665-SE0-010
Collar
|
17665-SE0-010 |
— | ||
|
16
|
16
17669-SM4-W00 LabelFUEL FILLER CAUTION (SUPER PREMIUM GASOLINE) |
17669-SM4-W00 |
US $2.96 |
||
|
17
|
17
17670-SA5-013
Cap comp.
|
17670-SA5-013 |
— | ||
|
18
|
18
17682-679-013 PackingFUEL FILLER CAP |
17682-679-013 |
from US $4.59 |
||
|
19
|
19
17726-SG0-010
Bracket
|
17726-SG0-010 |
— | ||
|
20
|
20
37800-SG0-023
Meter unit
|
37800-SG0-023 |
— | ||
|
21
|
21
37801-SE3-000
Packing
|
37801-SE3-000 |
— | ||
|
22
|
22
37802-SE0-000
Retainer
|
37802-SE0-000 |
— | ||
|
23
|
23
74423-SD4-000
Holder
|
74423-SD4-000 |
— | ||
|
24
|
24
74424-SG0-010
Tube assy
|
74424-SG0-010 |
— | ||
|
25
|
25
90163-SD4-000
Bolt
|
90163-SD4-000 |
— | ||
|
26
|
26
90103-SB0-010 NutFLANGE, 5MM |
90103-SB0-010 |
US $1.33 |
||
|
27
|
27
90655-SG0-003 ClipFUEL FILLER DRAIN TUBE |
90655-SG0-003 |
US $3.89 |
||
|
28
|
28
90700-SB0-003 ClipAIR BLEED TUBE |
90700-SB0-003 |
US $3.18 |
||
|
29
|
29
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.33 |
||
|
30
|
30
93894-050-120-8 Screw-washer5X12 |
93894-050-120-8 |
from US $0.44 |
||
|
31
|
31
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
31
|
31
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
32
|
32
90103-SB0-010 NutFLANGE, 5MM |
90103-SB0-010 |
US $1.33 |
||
|
33
|
33
94101-08800 WasherPLAIN, 8MM |
94101-08800 |
from US $0.37 |
||
|
35
|
35
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
36
|
36
95001-551-303-0
Tube
|
95001-551-303-0 |
— | ||
|
37
|
37
95002-02104 ClipTUBE (B10) |
95002-02104 |
US $0.52 |
||
|
38
|
38
95003-230-326-0 TubeVINYL, 8X12X320 (95003-23001-60M) |
95003-230-326-0 |
US $1.85 |
||
