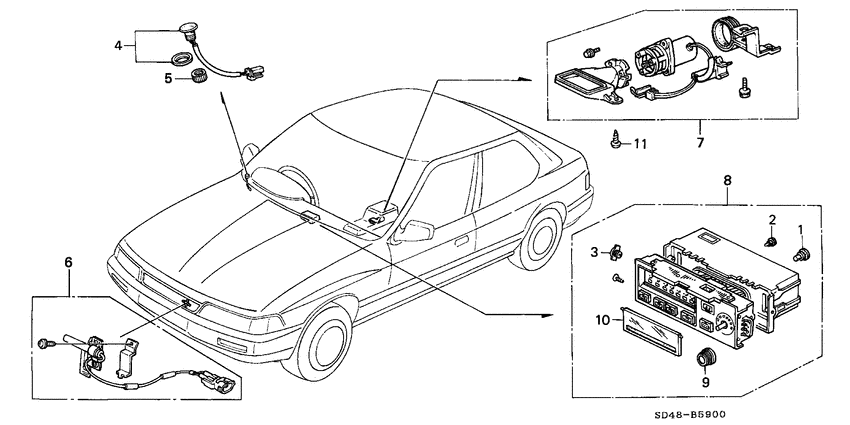

Air conditioner (SENSOR) Diagram Honda LEGEND
- Year
- 1990
- Model code
- LEGEND
- Sales region
- General
- Engine
- C27A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 2.7I
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35851-SB2-003 BulbNEO WEDGE (14V 65MA) |
35851-SB2-003 |
US $3.26 |
||
|
2
|
2
39397-SA5-003 BulbNEO WEDGE (14V 100MA) |
39397-SA5-003 |
from US $2.52 |
||
|
3
|
3
77729-SB2-003
Damper
|
77729-SB2-003 |
— | ||
|
4
|
4
80510-SD4-942
Sensor assy
|
80510-SD4-942 |
— | ||
|
5
|
5
80516-SE0-941
Nut
|
80516-SE0-941 |
— | ||
|
6
|
6
80520-SD4-003
Sensor
|
80520-SD4-003 |
— | ||
|
7
|
7
80530-SD4-944
Fan assy
0C200285 - |
80530-SD4-944 |
— | ||
|
7
|
7
80530-SD4-943 Fan assyASPIRATOR 00000000 - 0C200284 |
80530-SD4-943 |
US $184.32 |
||
|
8
|
8
80650-SG0-E41
Control assy.
|
80650-SG0-E41 |
— | ||
|
9
|
9
80670-SG0-G41
Knob
|
80670-SG0-G41 |
— | ||
|
10
|
10
80678-SD4-941
Lid
|
80678-SD4-941 |
— | ||
|
11
|
11
93903-24380 ScrewTAPPING, 4X12 |
93903-24380 |
from US $0.37 |
