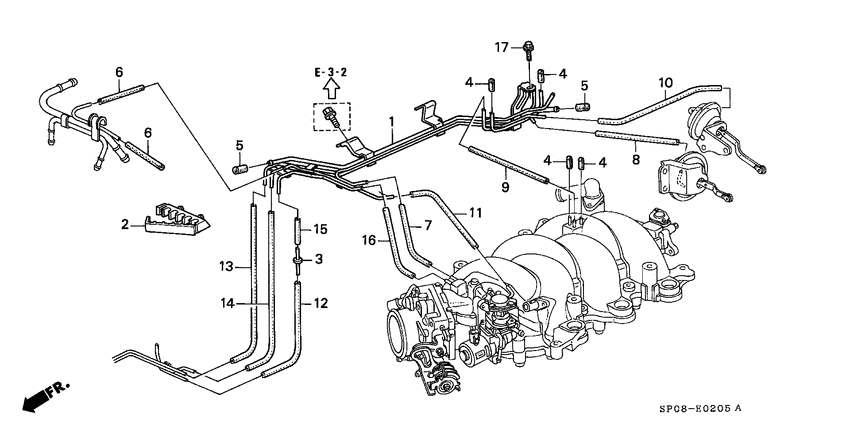

Install pipe/tubing (6) Diagram Honda LEGEND
- Year
- 1994
- Model code
- LEGEND
- Sales region
- General
- Engine
- C32A
- transmission
- 5MT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KW
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-PX9-A00
Pipe a
|
17400-PX9-A00 |
— | ||
|
2
|
2
17436-PY3-901
Clamp
|
17436-PY3-901 |
— | ||
|
3
|
3
36010-PL2-901
Joint
|
36010-PL2-901 |
— | ||
|
4
|
4
90634-PA0-000 CapSEALING |
90634-PA0-000 |
from US $1.86 |
||
|
5
|
5
90634-PA5-910 CapSEALING, 5.5MM |
90634-PA5-910 |
US $1.68 |
||
|
6
|
6
95005-350-651-E Tube3.5X65 (95005-35001-10M) |
95005-350-651-E |
US $1.18 |
||
|
7
|
7
95005-350-901-M Tube3.5X90 (95005-35001-10M) |
95005-350-901-M |
US $1.18 |
||
|
8
|
8
95005-350-901-2 Tube3.5X90 (95005-35001-10M) |
95005-350-901-2 |
US $1.18 |
||
|
9
|
9
95005-351-001-3 Tube3.5X100 (95005-35001-10M) |
95005-351-001-3 |
US $1.18 |
||
|
10
|
10
95005-351-001-8 Tube3.5X100 (95005-35001-10M) |
95005-351-001-8 |
US $1.18 |
||
|
11
|
11
95005-351-751-E Tube3.5X175 (95005-35001-10M) |
95005-351-751-E |
US $2.37 |
||
|
12
|
12
95005-352-501-4
Tube
|
95005-352-501-4 |
— | ||
|
13
|
13
95005-353-101-2 Tube3.5X310 (95005-35001-10M) |
95005-353-101-2 |
US $3.85 |
||
|
14
|
14
95005-353-101-8 Tube3.5X310 (95005-35001-10M) |
95005-353-101-8 |
US $3.85 |
||
|
15
|
15
95005-450-501-0 Tube4.5X50 (95005-45001-10M) |
95005-450-501-0 |
US $0.89 |
||
|
16
|
16
95005-450-901-0 Tube4.5X90 (95005-45001-10M) |
95005-450-901-0 |
US $1.55 |
||
|
17
|
17
95701-060-120-7 BoltFLANGE, 6X12 |
95701-060-120-7 |
from US $0.52 |
