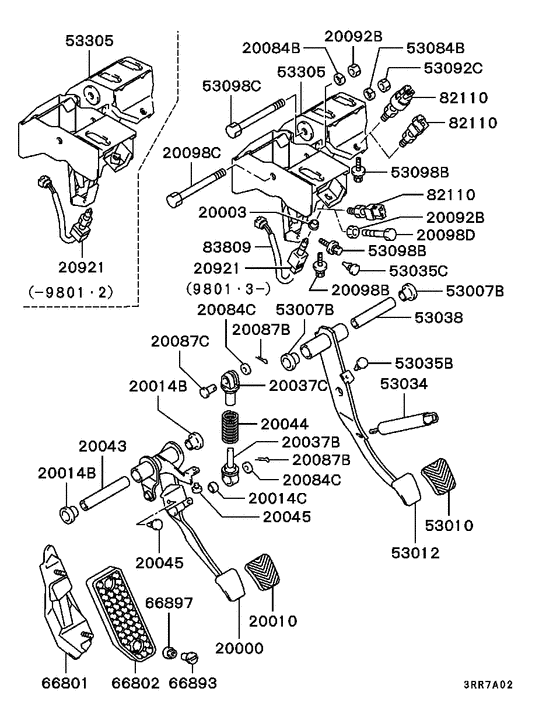

Brake & clutch pedal (M/T) Diagram Mitsubishi 3000GT
- Year
- 1990 - 1998
- Sales region
- PUERTO RICO&GUAM
- Note
- SPORTS LINE(DOHC),5FM/T FED
- drive
- 2WD
- transmission
- 5FM/T
- grade
- SPORTS LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20000
|
20000
MB599534
PEDAL,CLUTCH
|
MB599534 |
— | ||
|
20003
|
20003
MR329959 CLIP, BRAKE PEDAL |
MR329959 |
US $3.70 |
||
|
20010
|
20010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
20014B
|
20014B
MB316867 BUSHING, BRAKE PEDAL18.3x10 |
MB316867 |
from US $2.28 |
||
|
20014C
|
20014C
MB807054 BUSHING, CLUTCH PEDAL10x16 |
MB807054 |
US $2.87 |
||
|
20037B
|
20037B
MB807046 ROD, CLUTCH PEDAL RETURN SPRING |
MB807046 |
US $23.26 |
||
|
20037C
|
20037C
MB807045 ROD, CLUTCH PEDAL RETURN SPRING |
MB807045 |
US $18.47 |
||
|
20043
|
20043
MB807181
SPACER,CLUTCH PEDAL
|
MB807181 |
— | ||
|
20044
|
20044
MB807041 SPRING, CLUTCH PEDAL RETURN |
MB807041 |
US $7.52 |
||
|
20045
|
20045
MB004185 STOPPER, ACCEL PEDAL ARM |
MB004185 |
US $4.38 |
||
|
20045
|
20045
MB151298 STOPPER, STEERING COLUMN BRACKET |
MB151298 |
from US $2.52 |
||
|
20045
|
20045
MB500320 STOPPER, BRAKE PEDAL |
MB500320 |
US $3.26 |
||
|
20045
|
20045
MB500595 STOPPER, BRAKE PEDAL |
MB500595 |
US $3.55 |
||
|
20084B
|
20084B
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.41 |
||
|
20084C
|
20084C
MB151106 WASHER, CLUTCH M/CYL10 |
MB151106 |
US $2.74 |
||
|
20087B
|
20087B
MF472052 PIN, FUEL TANKSplit,2.5x20 |
MF472052 |
US $0.96 |
||
|
20087C
|
20087C
MF473496 PIN, CLUTCH PEDALClevis,10x30 |
MF473496 |
US $4.14 |
||
|
20092B
|
20092B
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
20098B
|
20098B
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
20098C
|
20098C
MB807182
BOLT,BRAKE PEDAL
|
MB807182 |
— | ||
|
20098D
|
20098D
MS100135 BOLT, CLUTCH PEDAL10x35 |
MS100135 |
US $2.87 |
||
|
20921
|
20921
MB605790
SWITCH,CLUTCH
|
MB605790 |
— | ||
|
20921
|
20921
MR329955 SWITCH, CLUTCH |
MR329955 |
US $10.53 |
||
|
53007B
|
53007B
MB316867 BUSHING, BRAKE PEDAL18.3x10 |
MB316867 |
from US $2.28 |
||
|
53010
|
53010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
53012
|
53012
MB599529 PEDAL,BRAKE |
MB599529 |
US $60.68 |
||
|
53034
|
53034
MB807360
SPRING, BRAKE PEDAL RETURN
|
MB807360 |
— | ||
|
53035B
|
53035B
MB151298 STOPPER, STEERING COLUMN BRACKET |
MB151298 |
from US $2.52 |
||
|
53035B
|
53035B
MB500320 STOPPER, BRAKE PEDAL |
MB500320 |
US $3.26 |
||
|
53035B
|
53035B
MB500595 STOPPER, BRAKE PEDAL |
MB500595 |
US $3.55 |
||
|
53035C
|
53035C
MB134911
STOPPER, BRAKE PEDAL
|
MB134911 |
— | ||
| replacement | |||||
|
53035C
|
53035C
MA306227 STOPPER, ACCEL PEDAL ARM |
MA306227 |
from US $1.58 |
||
|
53038
|
53038
MB807128 SPACER,CLUTCH PEDAL |
MB807128 |
US $7.40 |
||
|
53084B
|
53084B
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.41 |
||
|
53092C
|
53092C
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
53098B
|
53098B
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
53098C
|
53098C
MB599544
BOLT,BRAKE PEDAL
|
MB599544 |
— | ||
|
53305
|
53305
MB844894
MEMBER,PEDAL SUPPORT
|
MB844894 |
— | ||
|
53305
|
53305
MR407603
MEMBER,PEDAL SUPPORT
|
MR407603 |
— | ||
|
66801
|
66801
MB637414
BRACKET,FOOTREST
|
MB637414 |
— | ||
|
66802
|
66802
MB479160 FOOTREST |
MB479160 |
US $14.36 |
||
|
66893
|
66893
MB643881 CAP, FOOTREST |
MB643881 |
US $4.65 |
||
|
66897
|
66897
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
82110
|
82110
MB435457 SWITCH, STOP LAMP |
MB435457 |
from US $11.02 |
||
|
82110
|
82110
MB596608 SWITCH, STOP LAMP |
MB596608 |
from US $59.20 |
||
|
82110
|
82110
MR122560 SWITCH, STOP LAMP |
MR122560 |
US $20.72 |
||
|
83809
|
83809
MR329961 HARNESS, CLUTCH SWITCH |
MR329961 |
US $8.58 |
||
