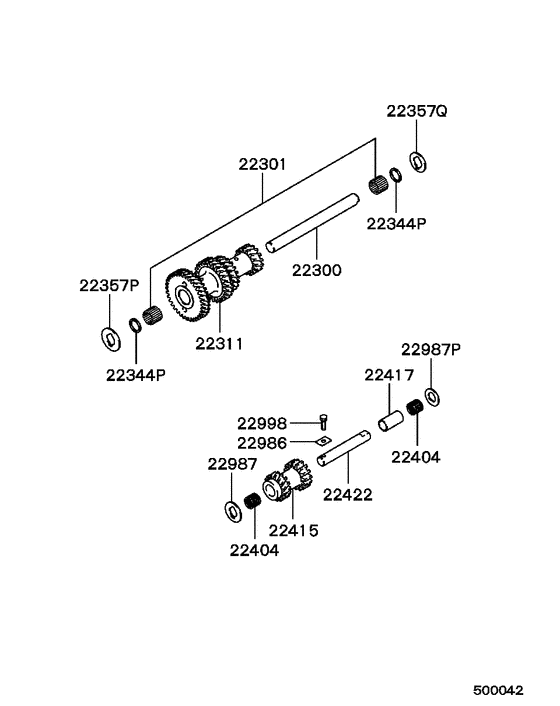

M/t gear (-8807.3 (COUNTERSHAFT)) Diagram Mitsubishi DELICA STAR WAGON
- Year
- 1986 - 1993
- Sales region
- Japan
- Note
- DX(3DOOR/3SEATER),4CM/T
- drive
- 2WD
- transmission
- 4CM/T
- grade
- DX
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22300
|
22300
MD701521 SHAFT, M/T COUNTER GEAR CLUSTER |
MD701521 |
US $36.26 |
||
|
22301
|
22301
MD700959 BEARING SET, M/T COUNTERSHAFT |
MD700959 |
US $7.25 |
||
|
22311
|
22311
MD701525 GEAR CLUSTER, M/T COUNTERSHAFTN=35 |
MD701525 |
US $347.98 |
||
|
22311
|
22311
MD732294 GEAR CLUSTER, M/T COUNTERSHAFTN=29 |
MD732294 |
US $703.25 |
||
|
22344P
|
22344P
MD701866 SPACER, M/T POWER TRAIN2.0 |
MD701866 |
US $7.99 |
||
|
22344P
|
22344P
MD703723 SPACER, M/T COUNTERSHAFT9.2 |
MD703723 |
US $6.36 |
||
|
22357P
|
22357P
MD701857 THRUST WASHER, M/T COUNTERSHAFT2.0 |
MD701857 |
US $8.14 |
||
|
22357Q
|
22357Q
MD701858 THRUST WASHER, M/T POWER TRAINThrust,2.04 |
MD701858 |
US $9.62 |
||
|
22357Q
|
22357Q
MD701859 THRUST WASHER, M/T COUNTERSHAFT2.11 |
MD701859 |
US $9.62 |
||
|
22357Q
|
22357Q
MD701860 THRUST WASHER, M/T COUNTERSHAFT2.145 |
MD701860 |
US $9.62 |
||
|
22357Q
|
22357Q
MD701861 THRUST WASHER, M/T COUNTERSHAFT2.18 |
MD701861 |
US $9.62 |
||
|
22357Q
|
22357Q
MD701862 THRUST WASHER, M/T COUNTERSHAFT2.215 |
MD701862 |
US $9.62 |
||
|
22357Q
|
22357Q
MD701863 THRUST WASHER, M/T COUNTERSHAFT2.25 |
MD701863 |
US $9.62 |
||
|
22357Q
|
22357Q
MD701864 THRUST WASHER, M/T COUNTERSHAFT2.33 |
MD701864 |
US $9.62 |
||
|
22404
|
22404
MD701748 BEARING, M/T REV IDLER GEARNeedle,20 |
MD701748 |
US $9.62 |
||
|
22404
|
22404
MD726905 BEARING, M/T REV IDLER GEARNeedel,20 |
MD726905 |
US $9.30 |
||
|
22415
|
22415
MD701693 GEAR, M/T REV IDLERN=15 |
MD701693 |
US $232.36 |
||
|
22415
|
22415
MD718190 GEAR, M/T REV IDLERN=17 |
MD718190 |
US $259 |
||
|
22417
|
22417
MD701749 PIECE, M/T REV IDLER SHAFT DISTANCE |
MD701749 |
US $5.03 |
||
|
22422
|
22422
MD701680 SHAFT, M/T REV IDLER GEAR |
MD701680 |
US $35.52 |
||
|
22422
|
22422
MD719279 SHAFT, M/T REV IDLER GEAR |
MD719279 |
US $129.50 |
||
|
22986
|
22986
MD701758 WASHER, M/T POWER TRAINTongue,6 |
MD701758 |
US $3.70 |
||
|
22987
|
22987
MD701738 THRUST WASHER, M/T POWER TRAINThrust,2.00 |
MD701738 |
US $8.14 |
||
|
22987P
|
22987P
MD701750 THRUST WASHER, M/T POWER TRAINThrust,1.79 |
MD701750 |
US $6.81 |
||
|
22987P
|
22987P
MD701751 THRUST WASHER, M/T POWER TRAINThrust,1.98 |
MD701751 |
US $8.14 |
||
|
22987P
|
22987P
MD701752 THRUST WASHER, M/T POWER TRAINThrust,2.075 |
MD701752 |
US $6.81 |
||
|
22987P
|
22987P
MD701753 THRUST WASHER, M/T POWER TRAINThrust,2.17 |
MD701753 |
US $8.14 |
||
|
22987P
|
22987P
MD701754 THRUST WASHER, M/T POWER TRAINThrust,2.26 |
MD701754 |
US $6.81 |
||
|
22987P
|
22987P
MD701755 THRUST WASHER, M/T POWER TRAINThrust,2.36 |
MD701755 |
US $9.62 |
||
|
22987P
|
22987P
MD701756 THRUST WASHER, M/T POWER TRAINThrust,2.55 |
MD701756 |
US $9.62 |
||
|
22998
|
22998
MF101229 BOLT, TIMING POWER TRAIN CASE6x20 |
MF101229 |
US $3.28 |
