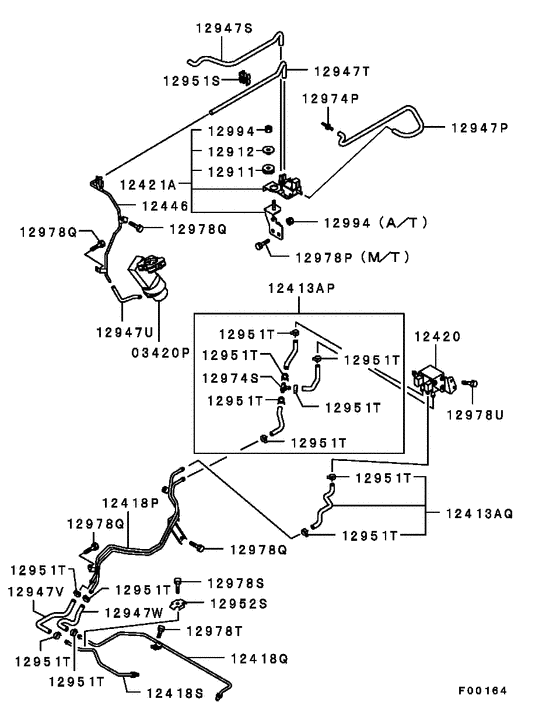

Emission control (-0707.3 (EXHAUST SHUTTER VALVE SYSTEM)) Diagram Mitsubishi DELICA TRUCK
- Year
- 2003 - 2007
- Sales region
- MZD-OEM
- Note
- (0.85TON/SINGLE-TIRE),5M/T<04M-06M>
- drive
- 2WD
- grade
- 0.85TON/SINGLE-
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03420P
|
03420P
MQ911145 Valve, Exhaust |
MQ911145 |
US $236.80 |
||
|
12413AP
|
12413AP
MQ910201 HOSE ASSY, EMISSION VACUUM CONTROL |
MQ910201 |
US $57.57 |
||
|
12413AP
|
12413AP
MQ912475 HOSE ASSY, EMISSION VACUUM CONTROL |
MQ912475 |
US $19.39 |
||
|
12413AQ
|
12413AQ
MQ910202 HOSE ASSY, EMISSION VACUUM CONTROL |
MQ910202 |
US $21.90 |
||
|
12418P
|
12418P
MQ910160 PIPE SET, EMISSION VACUUM CONTROL |
MQ910160 |
US $105.38 |
||
|
12418Q
|
12418Q
MQ911279 PIPE SET, EMISSION VACUUM CONTROL |
MQ911279 |
US $42.77 |
||
|
12418S
|
12418S
MQ911278 PIPE SET, EMISSION VACUUM CONTROL |
MQ911278 |
US $33 |
||
|
12420
|
12420
MQ910194 SENSOR, EMISSION CONTROL PRESSURE |
MQ910194 |
US $927.47 |
||
|
12420
|
12420
MQ912474 SENSOR, EMISSION CONTROL PRESSURE |
MQ912474 |
US $342.16 |
||
|
12421A
|
12421A
MQ911281 VALVE ASSY, EMISSION SOLENOID |
MQ911281 |
US $65.56 |
||
|
12421A
|
12421A
MQ911282 VALVE ASSY, EMISSION SOLENOID |
MQ911282 |
US $68.97 |
||
|
12446
|
12446
MQ910045 PIPE, EMISSION CONTROL |
MQ910045 |
US $33.30 |
||
|
12446
|
12446
MQ913081 PIPE, EMISSION CONTROL |
MQ913081 |
US $35.08 |
||
|
12911
|
12911
MQ910220 INSULATOR, SOLENOID VALVE BRACKET |
MQ910220 |
US $2.37 |
||
|
12912
|
12912
MQ910227 COLLAR, EMISSION SOLENOID VALVE |
MQ910227 |
US $2.37 |
||
|
12947P
|
12947P
MQ910197 HOSE, EMISSION VACUUM CONTROL EQUIP |
MQ910197 |
US $10.36 |
||
|
12947S
|
12947S
MQ911283 HOSE, EMISSION VACUUM CONTROL EQUIP |
MQ911283 |
US $10.36 |
||
|
12947T
|
12947T
MQ910200 HOSE, EMISSION VACUUM CONTROL EQUIP |
MQ910200 |
US $10.36 |
||
|
12947U
|
12947U
MQ910152 HOSE, EMISSION VACUUM CONTROL EQUIP |
MQ910152 |
US $9.62 |
||
|
12947V
|
12947V
MQ910154 HOSE, EMISSION VACUUM CONTROL EQUIP |
MQ910154 |
US $16.72 |
||
|
12947V
|
12947V
MQ912473 HOSE, EMISSION VACUUM CONTROL EQUIP |
MQ912473 |
US $15.84 |
||
|
12947W
|
12947W
MQ910155 HOSE, EMISSION VACUUM CONTROL EQUIP |
MQ910155 |
US $15.98 |
||
|
12947W
|
12947W
MQ912472 HOSE, EMISSION VACUUM CONTROL EQUIP |
MQ912472 |
US $15.98 |
||
|
12951S
|
12951S
MQ909784 CLIP, EMISSION CONTROL EQUIP |
MQ909784 |
US $2.37 |
||
|
12951T
|
12951T
MQ906407 CLAMP, ENG OIL LINE |
MQ906407 |
US $1.48 |
||
|
12952S
|
12952S
MQ910159 CLAMP, EMISSION VACUUM CONTROL EQUIP |
MQ910159 |
US $6.07 |
||
|
12974P
|
12974P
MQ900756 JOINT, EMISSION CONTROL EQUIP |
MQ900756 |
US $5.03 |
||
|
12974S
|
12974S
MQ909777 JOINT, EMISSION CONTROL EQUIP |
MQ909777 |
US $11.25 |
||
|
12978P
|
12978P
MQ906702 BOLT, INLET MANIFOLD |
MQ906702 |
US $1.04 |
||
|
12978Q
|
12978Q
MQ906705 BOLT, T/M CONNECTING |
MQ906705 |
US $1.33 |
||
|
12978S
|
12978S
MQ911659 BOLT, EMISSION CONTROL EQUIP |
MQ911659 |
US $1.78 |
||
|
12978T
|
12978T
MQ911660 BOLT, EMISSION CONTROL EQUIP |
MQ911660 |
US $1.63 |
||
|
12978U
|
12978U
MQ906687 BOLT, ENG CONTROL UNITTapping |
MQ906687 |
US $1.48 |
||
|
12994
|
12994
MQ906906 NUT, GLOW CONTROL EQUIP |
MQ906906 |
US $1.33 |
