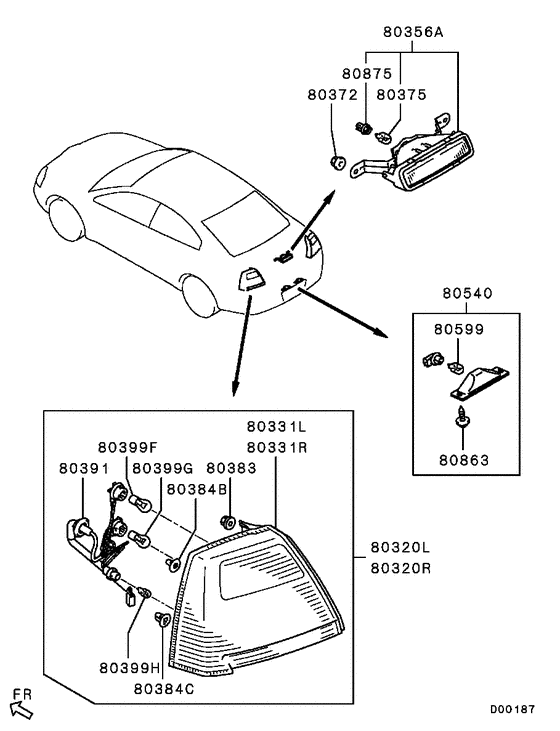

Rear exterior lamp (RR COMBINATION,LICENSE PLATE LAMP,HMSL) Diagram Mitsubishi GALANT
- Year
- 2006 - 2007
- Sales region
- EUR/MMNA
- Note
- ES,S4FA/T RUSSIA
- transmission
- S4FA/T
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80320L
|
80320L
8330A367
LAMP KIT,COMBINATION,RR LH
|
8330A367 |
— | ||
|
80320L
|
80320L
8330A593
LAMP KIT,COMBINATION,RR LH
|
8330A593 |
— | ||
|
80320R
|
80320R
8330A368
LAMP KIT,COMBINATION,RR RH
|
8330A368 |
— | ||
|
80320R
|
80320R
8330A594
LAMP KIT,COMBINATION,RR RH
|
8330A594 |
— | ||
|
80331L
|
80331L
8330A365
LAMP UNIT,COMBINATION,RR LH
|
8330A365 |
— | ||
|
80331R
|
80331R
8330A366
LAMP UNIT,COMBINATION,RR RH
|
8330A366 |
— | ||
|
80356A
|
80356A
MR598305
LAMP ASSY,HIGH MOUNTED STOP
|
MR598305 |
— | ||
|
80372
|
80372
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
80375
|
80375
MS820078 BULB, STOP LAMP12v-16w(w16w) |
MS820078 |
from US $3.43 |
||
|
80383
|
80383
MS440522 NUT, FUEL TANKWasher assembled,6 |
MS440522 |
from US $0.96 |
||
|
80384B
|
80384B
MU000367 GROMMET, TAIL LAMP |
MU000367 |
from US $1.03 |
||
|
80384C
|
80384C
MU000367 GROMMET, TAIL LAMP |
MU000367 |
from US $1.03 |
||
|
80384C
|
80384C
MU000368 GROMMET, TAIL LAMP |
MU000368 |
from US $1.27 |
||
|
80391
|
80391
8330A262
SOCKET,TAIL LAMP
|
8330A262 |
— | ||
|
80399F
|
80399F
MS820029 BULB, STOP LAMP12v-21w |
MS820029 |
from US $4.79 |
||
|
80399G
|
80399G
MS820040 BULB, RR END PANEL GARNISH12v-21/5w |
MS820040 |
US $4.37 |
||
| replacement | |||||
|
80399G
|
80399G
MS820038 BULB, RR END PANEL GARNISH12v-21/5w |
MS820038 |
from US $3.30 |
||
|
80399H
|
80399H
MS820078 BULB, STOP LAMP12v-16w(w16w) |
MS820078 |
from US $3.43 |
||
|
80540
|
80540
MN161796
LAMP KIT,LICENSE PLATE
|
MN161796 |
— | ||
|
80599
|
80599
MS820090 BULB (12V, 5W)12v-5w |
MS820090 |
from US $2.79 |
||
|
80863
|
80863
MN190238
SCREW,LICENSE PLATE LAMP
|
MN190238 |
— | ||
|
80875
|
80875
MU805818 SOCKET, RR LAMP |
MU805818 |
from US $3.65 |
||
