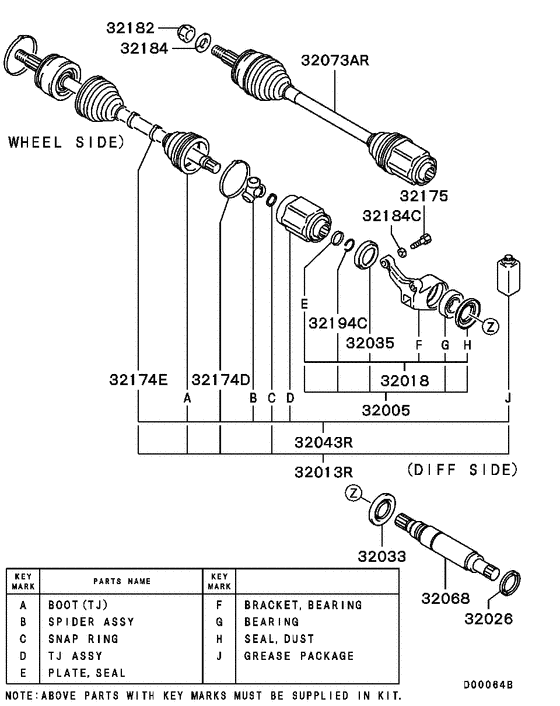

Front axle drive shaft (RH..M/T,A/T(HIGH GROUND CLEARANCE SUSP)) Diagram Mitsubishi GRANDIS
- Year
- 2004 - 2009
- Sales region
- EUR
- Note
- (2WD/6PERSONS),5FM/T LHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- 6PERSONS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32005
|
32005
MR263126 BEARING KIT, FR AXLE SHAFT |
MR263126 |
US $133.94 |
||
|
32013R
|
32013R
3815A104 BOOT KIT,FR AXLE JOINT,LH |
3815A104 |
US $71.99 |
||
|
32018
|
32018
MR483379 BRACKET KIT, FR AXLE SHAFT |
MR483379 |
US $331.97 |
||
|
32026
|
32026
MR145574 COVER, FR AXLE SHAFT DUST |
MR145574 |
from US $4.74 |
||
|
32033
|
32033
MB526617 COVER, FR AXLE SHAFT DUST |
MB526617 |
US $5.88 |
||
|
32035
|
32035
MB526680 DUST SEAL, FR AXLE SHAFT |
MB526680 |
US $24.42 |
||
|
32043R
|
32043R
3815A102
JOINT KIT,FR AXLE SHAFT,RH
|
3815A102 |
— | ||
|
32068
|
32068
MR470403 SHAFT, FR AXLE, INR |
MR470403 |
US $113.22 |
||
|
32073AR
|
32073AR
MR580448
SHAFT ASSY,FR AXLE DRIVE,RH
|
MR580448 |
— | ||
|
32174D
|
32174D
3817A063
BAND,FR AXLE
|
3817A063 |
— | ||
|
32174E
|
32174E
3817A062
BAND,FR AXLE
|
3817A062 |
— | ||
|
32175
|
32175
MB837241 BOLT, FR AXLE |
MB837241 |
US $5.06 |
||
|
32182
|
32182
MR195729 NUT, FR AXLE22 |
MR195729 |
US $5.92 |
||
|
32182
|
32182
MU000679 NUT, FR AXLE |
MU000679 |
from US $1.97 |
||
|
32184
|
32184
MB109025 WASHER, FR AXLELock,22.4 |
MB109025 |
from US $3.30 |
||
|
32184C
|
32184C
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.41 |
||
|
32194C
|
32194C
MR111742 CLIP, FR AXLE25 |
MR111742 |
US $1.92 |
