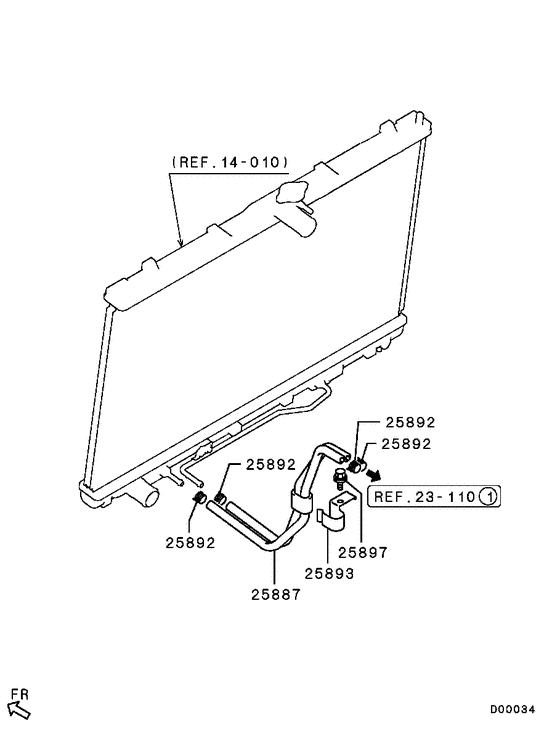

A/t oil cooler & tube Diagram Mitsubishi GRANDIS
- Year
- 2004 - 2009
- Sales region
- EUR
- Note
- (2WD/7PERSONS/EURO4),S4FA/T LHD
- drive
- 2WD
- transmission
- S4FA/T
- grade
- 7PERSONS/EURO4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25887
|
25887
MN171219
HOSE,T/M OIL COOLER LINE
|
MN171219 |
— | ||
|
25892
|
25892
MR204390
CLIP, T/M OIL COOLER LINE
|
MR204390 |
— | ||
| replacement | |||||
|
25892
|
25892
MR281416 CLIP, T/M OIL COOLER LINED=13.5 |
MR281416 |
from US $1.77 |
||
|
25893
|
25893
MN171258
CLAMP,T/M OIL COOLER LINE
|
MN171258 |
— | ||
|
25897
|
25897
MF140223 BOLT, CYLINDER HEADFlange,8x16 |
MF140223 |
from US $1.01 |
||
|
14 010
|
Radiator,hose & condenser tank
14 010
|
||||
|
23 110
|
A/t case
23 110
|
||||
|
23 110
|
A/t case
23 110
|
||||
|
23 110
|
A/t case
23 110
|
||||
