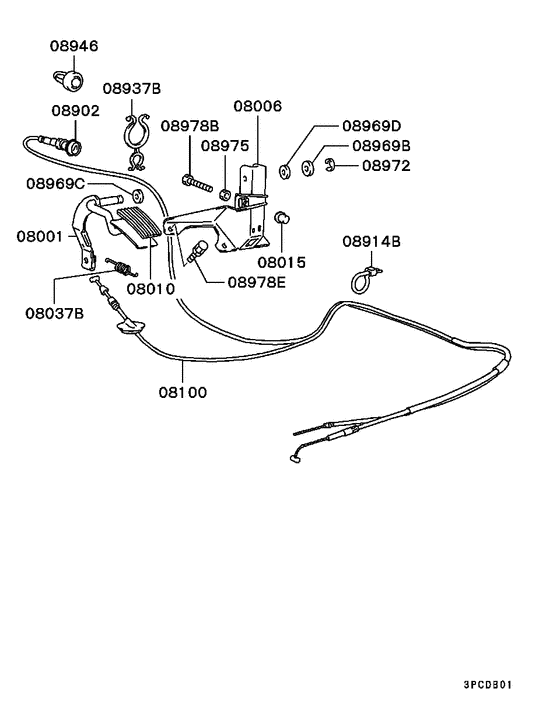

Engine control (LHD('03MODEL-)) Diagram Mitsubishi L300
- Year
- -
- Sales region
- EUR
- Note
- XL(AMBULANCE),5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- XL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
08001
|
08001
MB322604 ARM, ACCEL PEDAL |
MB322604 |
US $34.78 |
||
|
08001
|
08001
MB322732
ARM,ACCEL PEDAL
|
MB322732 |
— | ||
|
08006
|
08006
MB322607 BRACKET, ACCEL PEDAL ARM |
MB322607 |
US $18.50 |
||
|
08006
|
08006
MB322735
BRACKET,ACCEL PEDAL ARM
|
MB322735 |
— | ||
|
08010
|
08010
MB181266 PEDAL, ACCEL |
MB181266 |
from US $8.37 |
||
|
08015
|
08015
MA103567 CAP, ACCEL PEDAL ARM STOPPER BOLT |
MA103567 |
US $4.10 |
||
|
08037B
|
08037B
MB322613 SPRING, ACCEL PEDAL ARM RETURN |
MB322613 |
from US $2.32 |
||
|
08100
|
08100
MB322617 CABLE, ACCEL |
MB322617 |
US $69.08 |
||
|
08100
|
08100
MB322618
CABLE,ACCEL
|
MB322618 |
— | ||
|
08100
|
08100
MR133870
CABLE,ACCEL
|
MR133870 |
— | ||
|
08902
|
08902
MB322745
CABLE,CHOKE
|
MB322745 |
— | ||
|
08902
|
08902
MR150859
CABLE,CHOKE
|
MR150859 |
— | ||
|
08914B
|
08914B
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.50 |
||
|
08937B
|
08937B
MS470387 CLIP, ENG IDLE CONTROL EQUIP8.3-28 |
MS470387 |
US $3.26 |
||
|
08946
|
08946
MB170807 PLUG, INSTRUMENT PANEL SWITCHTaper,20,plastic |
MB170807 |
US $5.20 |
||
|
08969B
|
08969B
MF450006 WASHER, CYLINDER HEADPlain,10 |
MF450006 |
from US $1.01 |
||
|
08969C
|
08969C
MA152064 WASHER, WATER SEPARATOR INR |
MA152064 |
US $4.24 |
||
|
08969D
|
08969D
MF451105 WASHER, BACK DOOR LOCKINGWave,10 |
MF451105 |
US $2.74 |
||
|
08972
|
08972
MF522407 SNAP RING, CHOKE CABLE9 |
MF522407 |
from US $0.90 |
||
|
08975
|
08975
MF430725 NUT, CYLINDER HEADJam,8 |
MF430725 |
from US $0.59 |
||
|
08978B
|
08978B
MS100124 BOLT, CHOKE CABLE8x28 |
MS100124 |
US $1.92 |
||
|
08978E
|
08978E
MS240081 BOLT, FUEL RETURN LINEWasher assembled,6x16 |
MS240081 |
US $3.01 |
