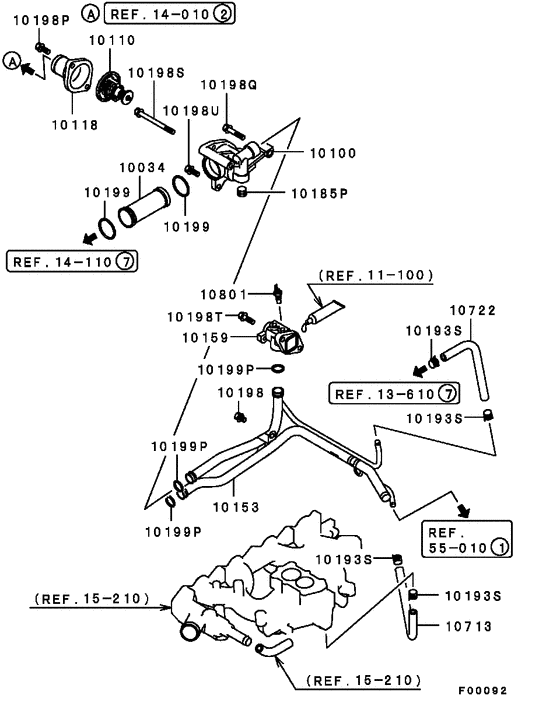

Water pipe & thermostat (0206.1-) Diagram Mitsubishi L300
- Year
- 1990 - 1992
- Sales region
- EUR
- Note
- XL(3DOOR),5FM/T RHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- XL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10034
|
10034
MD312815 PIPE, WATER PUMP INLET |
MD312815 |
from US $17.78 |
||
|
10100
|
10100
MD312813
CASE, THERMOSTAT
|
MD312813 |
— | ||
| replacement | |||||
|
10100
|
10100
1305A414 CASE, THERMOSTAT |
1305A414 |
US $110.81 |
||
|
10110
|
10110
MD337408 THERMOSTAT KIT82 |
MD337408 |
from US $15.58 |
||
|
10110
|
10110
MD997221
THERMOSTAT KIT
|
MD997221 |
— | ||
| replacement | |||||
|
10110
|
10110
MD972903 THERMOSTAT KIT88 |
MD972903 |
from US $33.77 |
||
|
10110
|
10110
MD997603
THERMOSTAT KIT
|
MD997603 |
— | ||
| replacement | |||||
|
10110
|
10110
MD972905 THERMOSTAT KIT82 |
MD972905 |
from US $26.11 |
||
|
10110
|
10110
MD997604 THERMOSTAT KIT88 |
MD997604 |
US $45.83 |
||
| replacement | |||||
|
10110
|
10110
MD972903 THERMOSTAT KIT88 |
MD972903 |
from US $33.77 |
||
|
10118
|
10118
MD152090 FITTING, WATER PUMP INLET HOSE |
MD152090 |
from US $36 |
||
|
10153
|
10153
MD314541 PIPE, THERMOSTAT CASE OIL COOLER WATER FEED |
MD314541 |
US $54.02 |
||
|
10159
|
10159
MD312581 FITTING, COOLING WATER OUTLET PIPE |
MD312581 |
from US $35.52 |
||
|
10193S
|
10193S
MS660240 CLIP, ROCKER COVERD=13.1 |
MS660240 |
from US $0.86 |
||
|
10198
|
10198
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
10198P
|
10198P
MF140025 BOLT, RESISTORFlange,8x20 |
MF140025 |
from US $0.68 |
||
|
10198Q
|
10198Q
MF140233 BOLT, ENG FR CASEFlange,8x40 |
MF140233 |
from US $1.07 |
||
|
10198S
|
10198S
MF140244 BOLT, INLET MANIFOLD, NO.1Flange,8x90 |
MF140244 |
from US $3.28 |
||
|
10198T
|
10198T
MF140227 BOLT, ROCKER COVERFlange,8x25 |
MF140227 |
from US $0.96 |
||
|
10198U
|
10198U
MF140225 BOLT, ENG WATER COOLERFlange,8x20 |
MF140225 |
from US $0.98 |
||
|
10199
|
10199
MD030763 O-RING, COOLING WATER LINE |
MD030763 |
from US $2.26 |
||
|
10199
|
10199
MD030764 O-RING, WATER PUMP INRD=33.4 |
MD030764 |
from US $2.81 |
||
|
10199P
|
10199P
MD030763 O-RING, COOLING WATER LINE |
MD030763 |
from US $2.26 |
||
|
10713
|
10713
MD319130 HOSE, INLET MANIFOLD WATER RETURN |
MD319130 |
US $22.20 |
||
|
10722
|
10722
MD323748
HOSE,CARB WATER FEED
|
MD323748 |
— | ||
|
10801
|
10801
MD091056 GAUGE UNIT, WATER TEMPERATURE |
MD091056 |
from US $33.01 |
||
|
