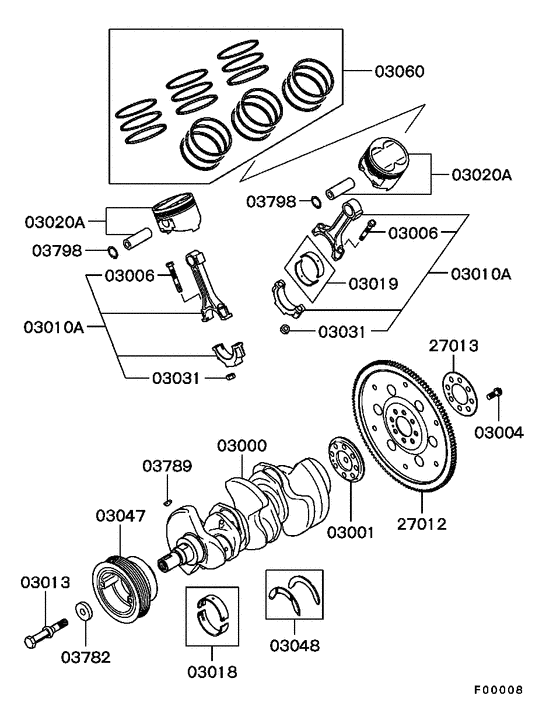

Piston & crankshaft (ALL) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2000 - 2002
- Sales region
- PUERTO RICO&GUAM
- Note
- LTD(NSS4),S5FA/T FED
- transmission
- S5FA/T
- grade
- LTD
- body
- LONG WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03000
|
03000
MD305941 CRANKSHAFT |
MD305941 |
US $2,260.80 |
||
|
03000
|
03000
MN119761 CRANKSHAFT |
MN119761 |
from US $1,442.88 |
||
|
03001
|
03001
MR222860 ADAPTER, CRANKSHAFT A/T DRIVE PLATE |
MR222860 |
US $101.38 |
||
|
03004
|
03004
MD113400 BOLT, A/T DRIVE PLATEFlange,10x25 |
MD113400 |
from US $3.26 |
||
|
03006
|
03006
MD173804 BOLT, CONNROD |
MD173804 |
from US $6.45 |
||
|
03006
|
03006
MD371803 BOLT, CONNROD9x57.5 |
MD371803 |
US $5.62 |
||
| replacement | |||||
|
03006
|
03006
1115A220 BOLT, CONNROD9x57.5 |
1115A220 |
US $3.97 |
||
|
03010A
|
03010A
MD173800 CONNECTING ROD ASSY |
MD173800 |
US $346.53 |
||
|
03010A
|
03010A
MN128276
CONNECTING ROD ASSY
|
MN128276 |
— | ||
|
03013
|
03013
MD172725
CENTER BOLT, CRANKSHAFT PULLEY
|
MD172725 |
— | ||
| replacement | |||||
|
03013
|
03013
1100A141 CENTER BOLT, CRANKSHAFT PULLEYFlange,14x50 |
1100A141 |
from US $4.49 |
||
|
03018
|
03018
MD197907 BEARING, CRANKSHAFTPlain,std 1, PINK |
MD197907 |
from US $10.34 |
||
|
03018
|
03018
MD197908 BEARING, CRANKSHAFTPlain,std 2, RED |
MD197908 |
from US $10.74 |
||
|
03018
|
03018
MD197909 BEARING, CRANKSHAFTSTD 3, GREEN |
MD197909 |
from US $11.68 |
||
|
03018
|
03018
MD197910 BEARING, CRANKSHAFTPlain,std 4, BLACK |
MD197910 |
from US $13.12 |
||
|
03018
|
03018
MD197911 BEARING, CRANKSHAFTPlain,std 5, BROWN |
MD197911 |
from US $13.32 |
||
|
03019
|
03019
MD311928 BEARING, CONNRODPlain,std 1, Pink |
MD311928 |
from US $9.24 |
||
|
03019
|
03019
MD311929 BEARING, CONNRODPlain,std 2, Red |
MD311929 |
from US $10.55 |
||
|
03019
|
03019
MD311930 BEARING, CONNRODPlain,std 3, Green |
MD311930 |
from US $10.80 |
||
|
03019
|
03019
MD311931 BEARING, CONNRODPlain,std 4, Black |
MD311931 |
from US $14.02 |
||
|
03019
|
03019
MD311932 BEARING, CONNRODPlain,std 5, Brown |
MD311932 |
from US $17.51 |
||
|
03020A
|
03020A
MD371361
PISTON & PIN ASSY
|
MD371361 |
— | ||
|
03020A
|
03020A
MD371362
PISTON & PIN ASSY
|
MD371362 |
— | ||
|
03020A
|
03020A
MD371363
PISTON & PIN ASSY
|
MD371363 |
— | ||
|
03020A
|
03020A
MD371364
PISTON & PIN ASSY
|
MD371364 |
— | ||
|
03020A
|
03020A
MD371365
PISTON & PIN ASSY
|
MD371365 |
— | ||
|
03031
|
03031
MD006704 NUT, CONNROD9 |
MD006704 |
from US $4.33 |
||
|
03031
|
03031
MD355954 NUT, CONNROD9 |
MD355954 |
from US $1.25 |
||
|
03047
|
03047
MD368825 PULLEY, CRANKSHAFTRibbed |
MD368825 |
US $241.24 |
||
| replacement | |||||
|
03047
|
03047
MD378453 PULLEY, CRANKSHAFTRibbed |
MD378453 |
US $394.78 |
||
|
03047
|
03047
MD378453 PULLEY, CRANKSHAFTRibbed |
MD378453 |
US $394.78 |
||
|
03048
|
03048
MD197988
THRUST BEARING SET, CRANKSHAFT
|
MD197988 |
— | ||
| replacement | |||||
|
03048
|
03048
1052A389 THRUST BEARING SET, CRANKSHAFTPlain |
1052A389 |
from US $14.57 |
||
|
03060
|
03060
MD322783 RING SET, PISTONStd |
MD322783 |
from US $233.11 |
||
|
03060
|
03060
MD337819 RING SET, PISTONO/size 0.50 |
MD337819 |
from US $203.94 |
||
|
03060
|
03060
MD337820 RING SET, PISTONO/size 1.00 |
MD337820 |
US $301.39 |
||
|
03782
|
03782
MD096930
WASHER, CRANKSHAFT PULLEY
|
MD096930 |
— | ||
| replacement | |||||
|
03782
|
03782
MR994412 WASHER, CRANKSHAFT PULLEY14.5 |
MR994412 |
from US $4.97 |
||
|
03782
|
03782
MR994412 WASHER, CRANKSHAFT PULLEY14.5 |
MR994412 |
from US $4.97 |
||
|
03789
|
03789
MD008959 KEY, CRANKSHAFT |
MD008959 |
from US $2.03 |
||
|
03798
|
03798
MF522213 SNAP RING, VALVE GEAR TRAIN22 |
MF522213 |
from US $0.96 |
||
|
27012
|
27012
MR305191 PLATE, A/T DRIVE |
MR305191 |
from US $118.40 |
||
|
27013
|
27013
MD719871
PLATE, A/T DRIVE PLATE ADAPTER
|
MD719871 |
— | ||
| replacement | |||||
|
27013
|
27013
MD760089 PLATE, A/T DRIVE PLATE ADAPTER |
MD760089 |
from US $8.33 |
||
