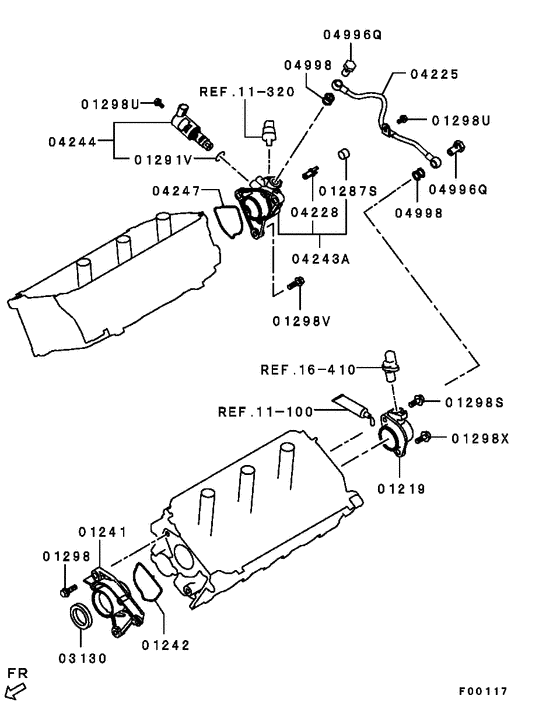

Cylinder head (-0705.3 (ATTACHING PARTS)) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2006 - 2008
- Sales region
- EUR
- Note
- GLS(NSS4/EURO4),S5FA/T RHD
- transmission
- S5FA/T
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01219
|
01219
1005A793 SUPPORT, CAMSHAFT POSITION SENSOR |
1005A793 |
from US $32.28 |
||
|
01241
|
01241
1028A028 CASE, CAMSHAFT OIL SEAL |
1028A028 |
US $96.20 |
||
|
01242
|
01242
1028A011 GASKET, OIL FEEDER CONTROL VALVE HOUSING |
1028A011 |
from US $3.82 |
||
|
01287S
|
01287S
MS661162 PLUG, INLET MANIFOLDTaper,3/8 |
MS661162 |
from US $3.43 |
||
|
01291V
|
01291V
1748A002 O-RING, CYLINDER HEAD |
1748A002 |
from US $2.11 |
||
|
01298
|
01298
MF140227 BOLT, ROCKER COVERFlange,8x25 |
MF140227 |
from US $0.96 |
||
|
01298S
|
01298S
MF140233 BOLT, ENG FR CASEFlange,8x40 |
MF140233 |
from US $1.07 |
||
|
01298U
|
01298U
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.68 |
||
|
01298V
|
01298V
MF140227 BOLT, ROCKER COVERFlange,8x25 |
MF140227 |
from US $0.96 |
||
|
01298X
|
01298X
MF140226 BOLT, ENG OIL PANFlange,8x22 |
MF140226 |
from US $1.23 |
||
|
03130
|
03130
MD372536 OIL SEAL, CAMSHAFT |
MD372536 |
from US $7.33 |
||
|
04225
|
04225
1028A088 PIPE, OIL FEEDER CONTROL VALVE |
1028A088 |
US $30.10 |
||
|
04228
|
04228
MN128937 FILTER, OIL FEEDER CONTROL VALVE |
MN128937 |
from US $5.79 |
||
|
04243A
|
04243A
1028A065 HOUSING ASSY, OIL FEEDER CONTROL VALVE |
1028A065 |
from US $127.91 |
||
|
04244
|
04244
1028A046 VALVE, OIL FEEDER CONTROL |
1028A046 |
from US $185.62 |
||
|
04247
|
04247
1028A011 GASKET, OIL FEEDER CONTROL VALVE HOUSING |
1028A011 |
from US $3.82 |
||
|
04996Q
|
04996Q
MF650113
EYEBOLT, ENG OIL LINE
|
MF650113 |
— | ||
| replacement | |||||
|
04996Q
|
04996Q
MS650013 EYEBOLT, FUEL LINE12x23 |
MS650013 |
from US $3.28 |
||
|
04998
|
04998
1028A052 GASKET, ENG OIL LINE |
1028A052 |
from US $1.31 |
||
|
04998
|
04998
MF660064 GASKET, CYLINDER BLOCKD=12 |
MF660064 |
from US $0.57 |
||
|
11 100
|
Liquid gasket
11 100
|
||||
|
11 320
|
Oil press switch or gauge unit
11 320
|
||||
|
16 410
|
Electrical control
16 410
|
||||
|
16 410
|
Electrical control
16 410
|
||||
|
16 410
|
Electrical control
16 410
|
||||
