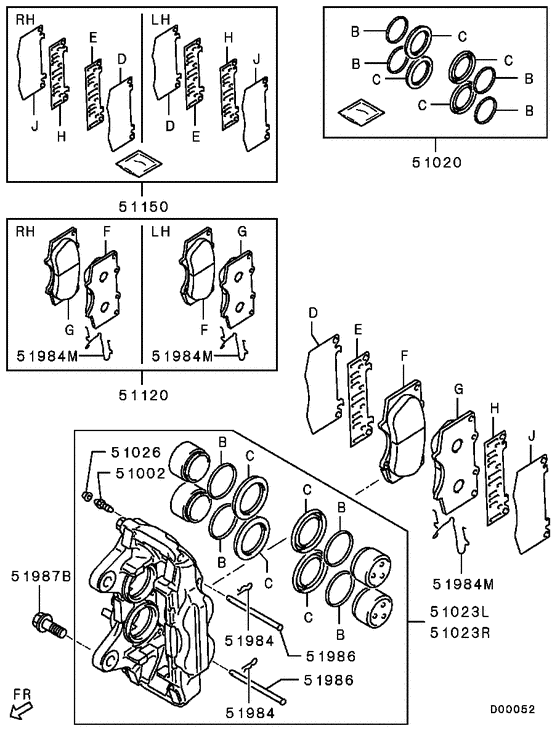

Front wheel brake (ALL) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2008 - 2009
- Sales region
- EUR
- Note
- GLS(NSS4/7SEATER/EURO2),S5FA/T LHD
- transmission
- S5FA/T
- grade
- GLS
- body
- LONG WAGON
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51002
|
51002
MB366379 BLEEDER, FR BRAKE CALIPER |
MB366379 |
US $9.18 |
||
|
51020
|
51020
4605A483
SEAL KIT, FR BRAKE CALIPER
|
4605A483 |
— | ||
| replacement | |||||
|
51020
|
51020
4605B840 SEAL KIT, FR BRAKE CALIPER |
4605B840 |
from US $43.37 |
||
|
51023L
|
51023L
4605A459 CALIPER KIT, FR BRAKE, LH |
4605A459 |
from US $552.48 |
||
|
51023R
|
51023R
4605A460 CALIPER KIT, FR BRAKE, RH |
4605A460 |
US $626.08 |
||
|
51026
|
51026
MA140440 CAP, FR BRAKE CALIPER BLEEDER |
MA140440 |
from US $2.81 |
||
|
51120
|
51120
4605A481
PAD SET, FR BRAKE
|
4605A481 |
— | ||
| replacement | |||||
|
51120
|
51120
4605B994 PAD SET, FR BRAKE |
4605B994 |
from US $107.56 |
||
|
51150
|
51150
4605A469
SHIM SET, FR BRAKE
|
4605A469 |
— | ||
| replacement | |||||
|
51150
|
51150
4605B992 SHIM SETFR BRAKE |
4605B992 |
from US $38.28 |
||
|
51984
|
51984
4605A465 CLIP, FR BRAKE |
4605A465 |
from US $1.50 |
||
|
51984M
|
51984M
4605A466 CLIP, FR BRAKE |
4605A466 |
from US $1.60 |
||
|
51986
|
51986
4605A464 PIN, FR BRAKE |
4605A464 |
from US $4.95 |
||
|
51987B
|
51987B
MB858936 BOLT, FR BRAKEFlange,12x32 |
MB858936 |
from US $2.63 |
||
