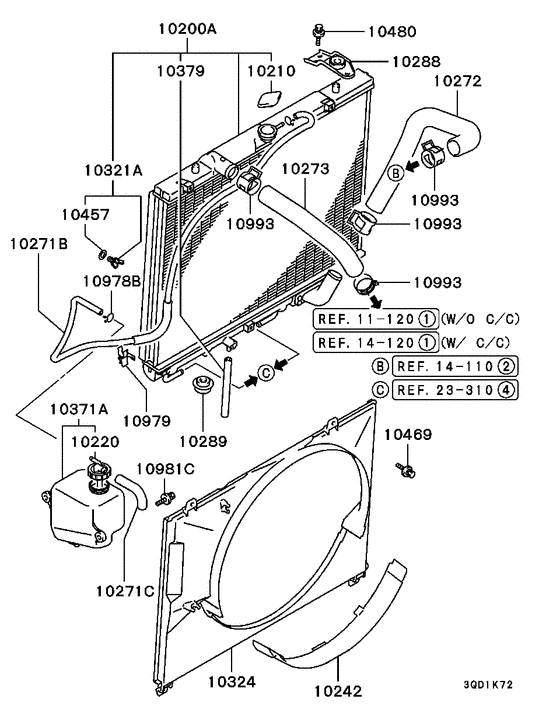

Radiator,hose & condenser tank (ALL) Diagram Mitsubishi PAJERO/MONTERO SPORT
- Year
- 2001 - 2004
- Sales region
- EUR
- Note
- GLX(EURO2),5FM/T RHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10200A
|
10200A
MR258668 RADIATOR ASSY |
MR258668 |
US $1,116.75 |
||
|
10210
|
10210
MB660667
CAP, RADIATOR
|
MB660667 |
— | ||
| replacement | |||||
|
10210
|
10210
MR481216 CAP, RADIATOR |
MR481216 |
from US $16.03 |
||
|
10210
|
10210
MR481216 CAP, RADIATOR |
MR481216 |
from US $16.03 |
||
|
10220
|
10220
MR241073 CAP, RADIATOR CONDENSER TANK |
MR241073 |
from US $6.63 |
||
|
10242
|
10242
MR239644 COVER, RADIATOR UNDER |
MR239644 |
from US $15.35 |
||
|
10271B
|
10271B
MR355391 HOSE, RADIATOR CONDENSER TANK |
MR355391 |
US $21.89 |
||
|
10271C
|
10271C
MB660749 HOSE, RADIATOR CONDENSER TANK |
MB660749 |
from US $11.10 |
||
|
10272
|
10272
MR258402 HOSE, RADIATOR, LWR |
MR258402 |
from US $29.58 |
||
|
10273
|
10273
MR239631 HOSE, RADIATOR, UPR |
MR239631 |
US $16.28 |
||
|
10288
|
10288
MR239638 INSULATOR, RADIATOR SUPPORT, UPR |
MR239638 |
from US $17.78 |
||
|
10289
|
10289
MR126800 INSULATOR, RADIATOR SUPPORT, LWR |
MR126800 |
from US $6.10 |
||
|
10321A
|
10321A
MB597892 PLUG ASSY, RADIATOR |
MB597892 |
from US $3.61 |
||
|
10324
|
10324
MR258671 SHROUD, COOLING FAN |
MR258671 |
US $97.68 |
||
|
10371A
|
10371A
MR127441 TANK ASSY, RADIATOR CONDENSER |
MR127441 |
from US $56.09 |
||
|
10371A
|
10371A
MR386070 TANK ASSY, RADIATOR CONDENSER |
MR386070 |
from US $44.40 |
||
|
10379
|
10379
MB605085 TUBE, RADIATOR DRAIN |
MB605085 |
US $0.89 |
||
|
10457
|
10457
MB007701 O-RING, RADIATORD=5 |
MB007701 |
from US $3.32 |
||
|
10469
|
10469
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.96 |
||
|
10469
|
10469
MS100232 BOLT, RADIATOR SHROUDFlange,6x14 |
MS100232 |
from US $1.01 |
||
|
10480
|
10480
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
10480
|
10480
MS241193 BOLT, RADIATOR SUPPORT8x16 |
MS241193 |
US $2.33 |
||
|
10978B
|
10978B
MS660205 CLIP, RADIATOR PIPINGD=11.5 |
MS660205 |
from US $1.33 |
||
|
10979
|
10979
MR385797 CLAMP, RADIATOR CONDENSER TANK |
MR385797 |
US $6.36 |
||
|
10981C
|
10981C
MF247226 BOLT, FUEL LINEWasher assembled,6x20 |
MF247226 |
US $1.92 |
||
|
10993
|
10993
MB356968
CLIP, RADIATOR PIPING
|
MB356968 |
— | ||
| replacement | |||||
|
10993
|
10993
MR404538 CLIP, RADIATOR PIPINGD=37 |
MR404538 |
from US $2.83 |
||
|
