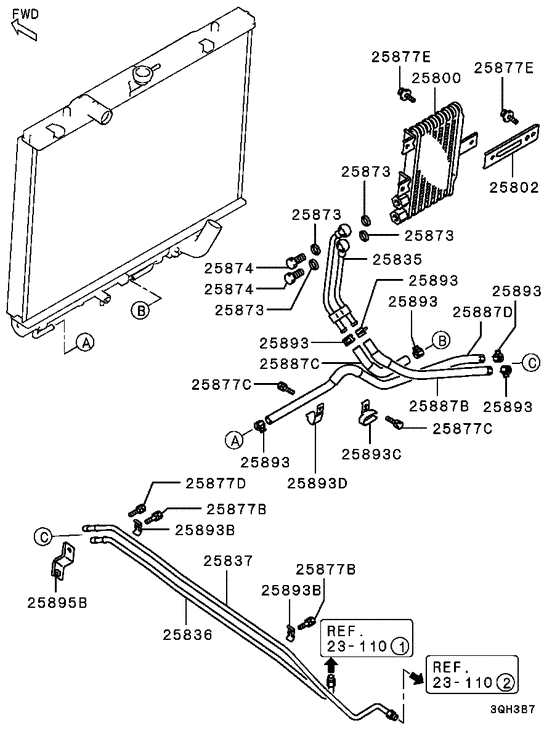

A/t oil cooler & tube (-9707.3) Diagram Mitsubishi PAJERO/MONTERO SPORT
- Year
- 1998 - 1999
- Sales region
- Japan
- Note
- XG(WIDE),4FA/T
- drive
- 4WD
- transmission
- 4FA/T
- grade
- XG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25800
|
25800
MR232940 OIL COOLER, ENG |
MR232940 |
US $548.91 |
||
|
25802
|
25802
MR299102 BRACKET, ENG OIL COOLER |
MR299102 |
US $7.84 |
||
|
25835
|
25835
MR232909 TUBE, T/M OIL COOLER |
MR232909 |
US $56.24 |
||
|
25836
|
25836
MR357425 TUBE, T/M OIL COOLER FEED |
MR357425 |
US $27.38 |
||
|
25837
|
25837
MR357426 TUBE, T/M OIL COOLER RETURN |
MR357426 |
US $20.72 |
||
|
25873
|
25873
MB033054 GASKET, ENG OIL COOLER TUBE |
MB033054 |
from US $1.79 |
||
|
25874
|
25874
MR312044 EYEBOLT, ENG OIL COOLER LINE16x33 |
MR312044 |
US $5.77 |
||
|
25877B
|
25877B
MF241228 BOLT, ENG OIL PUMPWasher assembled,6x22 |
MF241228 |
US $2.05 |
||
|
25877C
|
25877C
MF244822 BOLT, ACCEL CABLE SUPPORTWasher assembled,6x12 |
MF244822 |
US $2.60 |
||
|
25877D
|
25877D
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
25877E
|
25877E
MF244248 BOLT, ENG OIL COOLERWasher assembled,8x14 |
MF244248 |
US $2.22 |
||
|
25887B
|
25887B
MR232912
HOSE, T/M OIL COOLER LINE
|
MR232912 |
— | ||
|
25887C
|
25887C
MR232913 HOSE, T/M OIL COOLER LINE |
MR232913 |
US $25.31 |
||
|
25887D
|
25887D
MR232914
HOSE, T/M OIL COOLER LINE
|
MR232914 |
— | ||
|
25893
|
25893
MR133826 CLIP, P/S OIL LINE18.1 |
MR133826 |
from US $1.93 |
||
|
25893B
|
25893B
MB033459 CLAMP, T/M OIL COOLER LINE10-10 |
MB033459 |
US $5.62 |
||
|
25893C
|
25893C
MR232915 CLAMP, T/M OIL COOLER LINE12.5 |
MR232915 |
US $4 |
||
|
25893D
|
25893D
MR232935 CLAMP, T/M OIL COOLER LINE15 |
MR232935 |
US $6.07 |
||
|
25895B
|
25895B
MR232906 BRACKET, T/M OIL COOLER LINE |
MR232906 |
US $7.25 |
||
|
