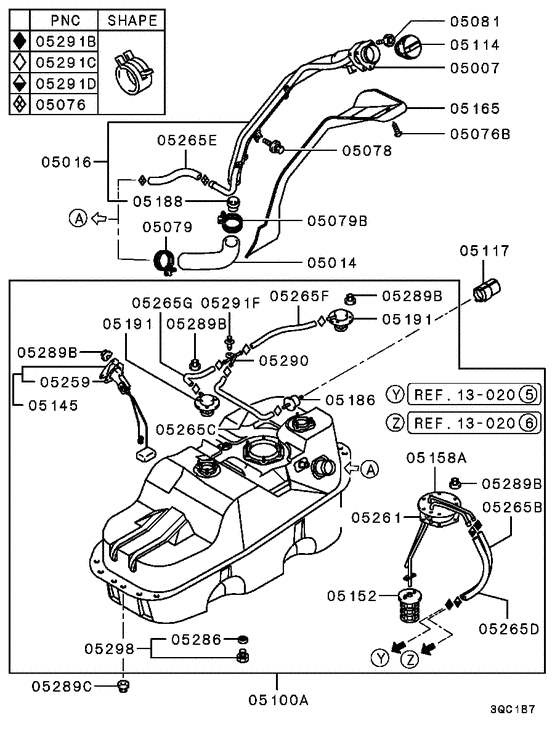

Fuel tank (ALL) Diagram Mitsubishi PAJERO/MONTERO SPORT
- Year
- 1998 - 1999
- Sales region
- Japan
- Note
- XG(WIDE),4FA/T
- drive
- 4WD
- transmission
- 4FA/T
- grade
- XG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05007
|
05007
MB504238 GASKET, FUEL FILLER NECK |
MB504238 |
from US $3.74 |
||
|
05014
|
05014
MR135545 HOSE, FUEL FILLER |
MR135545 |
US $40.70 |
||
|
05014
|
05014
MR432113 HOSE, FUEL FILLER |
MR432113 |
US $42.41 |
||
|
05016
|
05016
MR135539 NECK, FUEL FILLER |
MR135539 |
US $132.46 |
||
|
05076
|
05076
MS660168 CLIP, ROCKER COVERD=17.8 |
MS660168 |
from US $1.74 |
||
|
05076B
|
05076B
MB344728 CLIP, SPLASH SHIELD |
MB344728 |
from US $1.91 |
||
|
05078
|
05078
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
05079
|
05079
MF661025 CLAMP, FUEL FILLER PIPE53 |
MF661025 |
US $3.15 |
||
|
05079
|
05079
MS660031 CLAMP, FUEL TANK52 |
MS660031 |
from US $2.81 |
||
|
05079B
|
05079B
MS660271 CLAMP, FUEL TANK45 |
MS660271 |
from US $2.91 |
||
|
05081
|
05081
MB400550 BOLT, FUEL LINEWasher assembled,6x16 |
MB400550 |
from US $1.68 |
||
|
05100A
|
05100A
MN120721 FUEL TANK ASSY |
MN120721 |
US $621.71 |
||
|
05100A
|
05100A
MR135506 FUEL TANK ASSY |
MR135506 |
US $829.92 |
||
|
05114
|
05114
MB595689
CAP, FUEL TANK
|
MB595689 |
— | ||
| replacement | |||||
|
05114
|
05114
MB400395 CAP, FUEL TANK |
MB400395 |
from US $33.52 |
||
|
05114
|
05114
MR342330
CAP, FUEL TANK
|
MR342330 |
— | ||
| replacement | |||||
|
05114
|
05114
MN106160 CAP, FUEL TANK |
MN106160 |
from US $23.48 |
||
|
05117
|
05117
MB348567 CASE, FUEL TANK BREATHER |
MB348567 |
US $3.70 |
||
|
05145
|
05145
MR135537 GAUGE UNIT, FUEL TANK |
MR135537 |
US $75.92 |
||
|
05152
|
05152
MB129894 FILTER, FUEL IN TANK |
MB129894 |
from US $6.10 |
||
|
05158A
|
05158A
MR135533 PIPE ASSY, FUEL TANK FILTER |
MR135533 |
US $77.70 |
||
|
05158A
|
05158A
MR432127 PIPE ASSY, FUEL TANK FILTER |
MR432127 |
from US $99.61 |
||
|
05165
|
05165
MR135549 PROTECTOR, FUEL TANK |
MR135549 |
US $15.54 |
||
|
05186
|
05186
MB845469 VALVE, FUEL TANK VAPOR HOSE 2-WAY |
MB845469 |
US $34.88 |
||
|
05188
|
05188
MR135439 VALVE, FUEL FILLER NECK |
MR135439 |
from US $6.86 |
||
|
05191
|
05191
MR135854 VALVE, FUEL TANK SAFETY |
MR135854 |
US $62.16 |
||
|
05191
|
05191
MR187856 VALVE, FUEL TANK SAFETY |
MR187856 |
US $50.32 |
||
|
05259
|
05259
MR252677 GASKET, FUEL TANK GAUGE |
MR252677 |
from US $3.80 |
||
|
05261
|
05261
MB400461 GASKET, FUEL TANK GAUGE |
MB400461 |
from US $5.77 |
||
|
05261
|
05261
MR573684 GASKET, FUEL TANK GAUGE |
MR573684 |
from US $8.39 |
||
|
05265B
|
05265B
MS642596 HOSE, FUEL TANK6x2000 |
MS642596 |
from US $37.97 |
||
|
05265C
|
05265C
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05265D
|
05265D
MS642896 HOSE, FUEL TANK8x2000 |
MS642896 |
US $49.58 |
||
|
05265E
|
05265E
MR135547
HOSE, FUEL TANK
|
MR135547 |
— | ||
|
05265E
|
05265E
MR432115 HOSE, FUEL TANK |
MR432115 |
US $8.21 |
||
|
05265E
|
05265E
MR487112 HOSE, FUEL TANK |
MR487112 |
US $5.92 |
||
|
05265F
|
05265F
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05265G
|
05265G
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05286
|
05286
MR100054 GASKET, FUEL TANK8 |
MR100054 |
from US $1.03 |
||
|
05289B
|
05289B
MS440501 NUT, FUEL TANKWasher assembled,5 |
MS440501 |
from US $1.03 |
||
|
05289C
|
05289C
MB288653 NUT, ENG RR MOUNTINGFlange self locking,10 |
MB288653 |
from US $1.42 |
||
|
05290
|
05290
MB052644 JOINT, FUEL TANK |
MB052644 |
US $9.03 |
||
|
05291B
|
05291B
MS660163 CLIP, ROCKER COVERD=11.6 |
MS660163 |
from US $0.84 |
||
|
05291C
|
05291C
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05291D
|
05291D
MS660164 CLAMP, T/M OIL COOLER LINED=13.1 |
MS660164 |
from US $1.13 |
||
|
05291F
|
05291F
MB344737 CLIP, RR BUMPER6 |
MB344737 |
from US $2.03 |
||
|
05298
|
05298
1715A135 PLUG, FUEL TANK8 |
1715A135 |
from US $2.55 |
||
|
