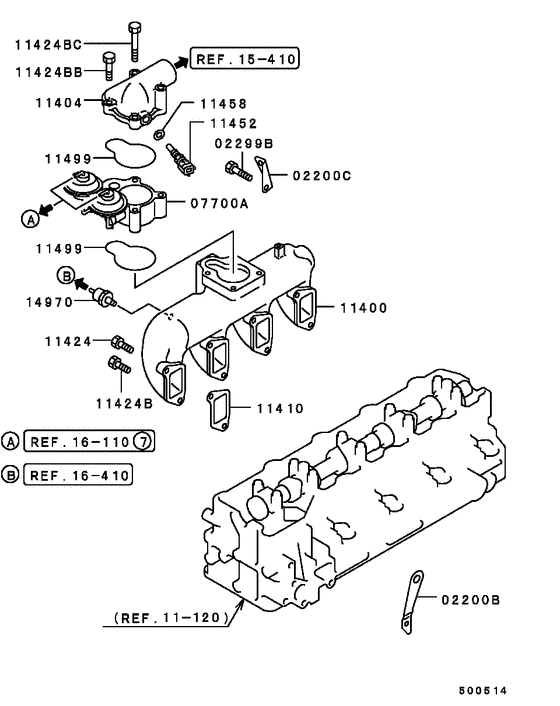

Inlet manifold (9708.1-) Diagram Mitsubishi PAJERO/MONTERO SPORT
- Year
- 1998 - 1999
- Sales region
- Japan
- Note
- XG(WIDE),4FA/T
- drive
- 4WD
- transmission
- 4FA/T
- grade
- XG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02200B
|
02200B
ME200534 ENGINE HANGER |
ME200534 |
US $7.84 |
||
|
02200C
|
02200C
ME200139 ENGINE HANGER |
ME200139 |
US $7.84 |
||
|
02299B
|
02299B
MF140224 BOLT, ENG MOUNTINGFlange,8x18 |
MF140224 |
from US $0.92 |
||
|
07700A
|
07700A
ME202203
Throttle Body Assy
|
ME202203 |
— | ||
| replacement | |||||
|
07700A
|
07700A
ME202819 Throttle Body Assy |
ME202819 |
US $501.59 |
||
|
07700A
|
07700A
ME202819 Throttle Body Assy |
ME202819 |
US $501.59 |
||
|
11400
|
11400
ME201207 MANIFOLD, INLET |
ME201207 |
US $257.18 |
||
|
11400
|
11400
ME202690 MANIFOLD, INLET |
ME202690 |
US $377.10 |
||
|
11404
|
11404
ME202691 COUPLING, INLET MANIFOLD |
ME202691 |
US $59.20 |
||
|
11410
|
11410
ME200285
GASKET, INLET MANIFOLD
|
ME200285 |
— | ||
| replacement | |||||
|
11410
|
11410
ME202969 GASKET, INLET MANIFOLD |
ME202969 |
from US $3.20 |
||
|
11410
|
11410
ME202969 GASKET, INLET MANIFOLD |
ME202969 |
from US $3.20 |
||
|
11424
|
11424
MF140229 BOLT, CYLINDER BLOCKFlange,8x30 |
MF140229 |
from US $1.11 |
||
|
11424B
|
11424B
MF140226 BOLT, ENG OIL PANFlange,8x22 |
MF140226 |
from US $1.23 |
||
|
11424BB
|
11424BB
MF140240 BOLT, ENG FR CASEFlange,8x75 |
MF140240 |
from US $2.42 |
||
|
11424BC
|
11424BC
MH000867
BOLT, ENG OIL PUMP
|
MH000867 |
— | ||
|
11452
|
11452
MD326170 SENSOR, SURGE TANK AIR TEMPERATURE |
MD326170 |
from US $25.14 |
||
|
11458
|
11458
MF660064 GASKET, CYLINDER BLOCKD=12 |
MF660064 |
from US $0.57 |
||
|
11499
|
11499
ME202211 O-RING, INLET MANIFOLD |
ME202211 |
US $10.53 |
||
|
14970
|
14970
MD176361 FILTER, FUEL CONTROL VACUUM SENSOR |
MD176361 |
from US $28.04 |
||
|
