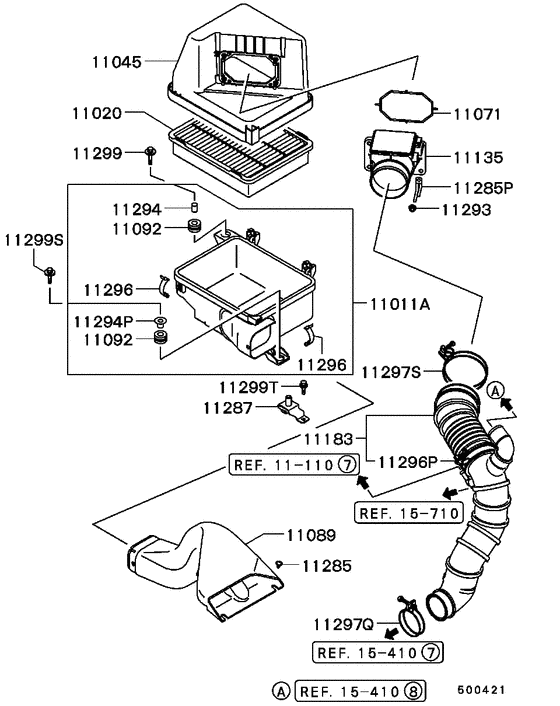

Air cleaner (ALL) Diagram Mitsubishi RVR
- Year
- 1997 - 1999
- Sales region
- Japan
- Note
- SPORTS-GEAR X3,5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- SPORTS-GEAR X3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011A
|
11011A
MR386116 BODY ASSY, AIR CLEANER |
MR386116 |
US $128.02 |
||
|
11020
|
11020
MR266849
ELEMENT, AIR CLEANER
|
MR266849 |
— | ||
| replacement | |||||
|
11020
|
11020
MR529773 ELEMENT, AIR CLEANERNon woven |
MR529773 |
US $60.88 |
||
|
11020
|
11020
MR529773 ELEMENT, AIR CLEANERNon woven |
MR529773 |
US $60.88 |
||
|
11045
|
11045
MR386112 COVER, AIR CLEANER |
MR386112 |
US $62.90 |
||
|
11071
|
11071
MD151672 GASKET, AIR CLEANER AIR FLOW SENSOR |
MD151672 |
from US $6.49 |
||
|
11089
|
11089
MR281894 DUCT, AIR CLEANER INTAKE |
MR281894 |
US $53.28 |
||
|
11092
|
11092
MR404532 INSULATOR, AIR CLEANER SUPPORT |
MR404532 |
from US $2.75 |
||
|
11135
|
11135
MD348488 SENSOR, AIR CLEANER AIR FLOW |
MD348488 |
US $947.86 |
||
|
11183
|
11183
MR281890 DUCT, AIR CLEANER TO THROTTLE BODY |
MR281890 |
US $413.50 |
||
|
11285
|
11285
MB476821 CLIP, SPLASH SHIELD |
MB476821 |
from US $1.17 |
||
|
11285P
|
11285P
MB113038 CLIP, EMISSION VACUUM CONTROL EQUIP6.6-40/55 |
MB113038 |
US $3.97 |
||
|
11287
|
11287
MR355860 BRACKET, AIR CLEANER |
MR355860 |
US $4.29 |
||
|
11293
|
11293
M945407 NUT, CRUISE CONTROL EQUIPFlange,6 |
M945407 |
US $2.19 |
||
|
11293
|
11293
MF434103 NUT, ENG OIL PANFlange,6 |
MF434103 |
from US $0.10 |
||
|
11294
|
11294
MD620599 COLLAR, AIR CLEANER |
MD620599 |
US $2.33 |
||
|
11294P
|
11294P
MD620756 COLLAR, AIR CLEANER |
MD620756 |
US $3.85 |
||
|
11296
|
11296
MR386119 CLAMP, AIR CLEANER INR |
MR386119 |
from US $3.71 |
||
|
11296P
|
11296P
MF661138 CLAMP, AIR CLEANER83 |
MF661138 |
from US $3.71 |
||
|
11297Q
|
11297Q
MF661129 CLAMP, AIR CLEANER63 |
MF661129 |
US $3.42 |
||
|
11297S
|
11297S
MF661142 CLAMP, AIR CLEANER INR93 |
MF661142 |
US $8.21 |
||
|
11297S
|
11297S
MF661143 CLAMP, AIR CLEANER95 |
MF661143 |
US $5.47 |
||
|
11299
|
11299
MD305640 BOLT, AIR CLEANERWasher assembled,6x35 |
MD305640 |
from US $1.70 |
||
|
11299S
|
11299S
MD300358 BOLT, AIR CLEANERWasher assembled,6x30 |
MD300358 |
from US $1.79 |
||
|
11299T
|
11299T
MS240123 BOLT, FUEL LINEWasher assembled,6x25 |
MS240123 |
US $1.37 |
||
|
