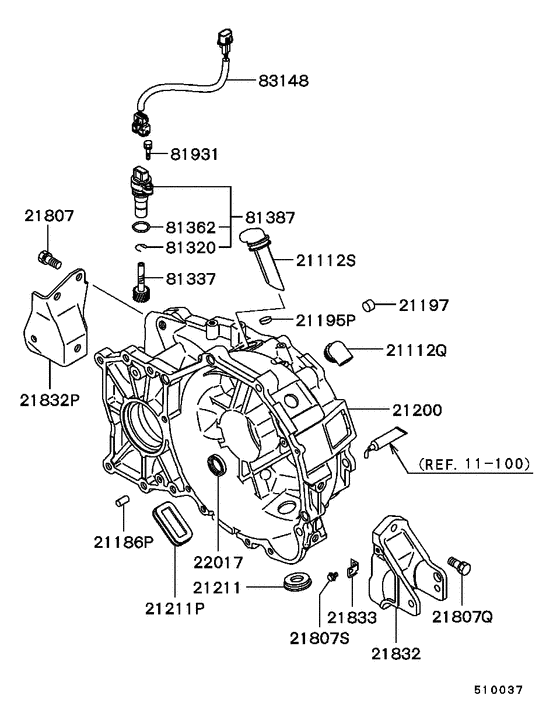

M/t case (ALL (CLUTCH HOUSING)) Diagram Mitsubishi RVR
- Year
- 1997 - 1999
- Sales region
- Japan
- Note
- SPORTS-GEAR X3,5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- SPORTS-GEAR X3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21112Q
|
21112Q
MD711443 COVER, M/T CASE BREATHER HOLE |
MD711443 |
US $7.39 |
||
|
21112S
|
21112S
MD746523 PLUG, M/T CASE |
MD746523 |
from US $9.87 |
||
|
21186P
|
21186P
MF472405 PIN, CYLINDER BLOCKDowel,10x20 |
MF472405 |
from US $1.31 |
||
|
21195P
|
21195P
MF665535 CAP, CYLINDER HEADSealing,d=18 |
MF665535 |
from US $1.54 |
||
|
21197
|
21197
MD746159 BUSHING, M/T CASE |
MD746159 |
from US $1.89 |
||
|
21200
|
21200
MD749639 HOUSING, CLUTCH |
MD749639 |
US $614.43 |
||
|
21211
|
21211
MD747412 COVER, CLUTCH HOUSING INSPECTION HOLE |
MD747412 |
from US $4.45 |
||
|
21211P
|
21211P
MD746526 COVER, CLUTCH HOUSING INSPECTION HOLE |
MD746526 |
from US $4.58 |
||
|
21807
|
21807
MF241308 BOLT, A/T CASEWasher assembled,12x28 |
MF241308 |
from US $2.55 |
||
|
21807Q
|
21807Q
MF140287 BOLT, RR SUSP SPRINGFlange,12x35 |
MF140287 |
from US $2.44 |
||
|
21807S
|
21807S
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
21832
|
21832
MD763668 BRACKET, T/M CASE ROLL STOPPER |
MD763668 |
US $85.84 |
||
|
21832P
|
21832P
MD758992 BRACKET, T/M CASE ROLL STOPPER |
MD758992 |
US $37 |
||
|
21832P
|
21832P
MD763580 BRACKET, T/M CASE ROLL STOPPER |
MD763580 |
US $49.58 |
||
|
21833
|
21833
MD763675 BRACKET, T/M ROLL STOPPER BRACKET TUBE CLAMP |
MD763675 |
US $3.55 |
||
|
22017
|
22017
MB936826 OIL SEAL, M/T MAIN DRIVE PINION |
MB936826 |
from US $10.26 |
||
|
81320
|
81320
MD622012 E-RING, SPEEDOMETER DRIVEN GEAR |
MD622012 |
US $3.01 |
||
|
81337
|
81337
MD749983 GEAR, SPEEDOMETER DRIVEN |
MD749983 |
US $40.70 |
||
|
81362
|
81362
MD622013 O-RING, SPEEDOMETER DRIVEN GEAR SLEEVE |
MD622013 |
US $7.25 |
||
|
81387
|
81387
MD756706 SLEEVE, SPEEDOMETER DRIVEN GEAR |
MD756706 |
US $89.54 |
||
|
81931
|
81931
MF240029 BOLT, ENG OIL LINEWasher assembled,6x25 |
MF240029 |
from US $1.52 |
||
|
83148
|
83148
MD763706 HARNESS, T/M |
MD763706 |
US $53.28 |
||
|
83148
|
83148
MD771144 HARNESS, T/M |
MD771144 |
US $24.62 |
||
|
11 100
|
Liquid gasket
11 100
|
||||
