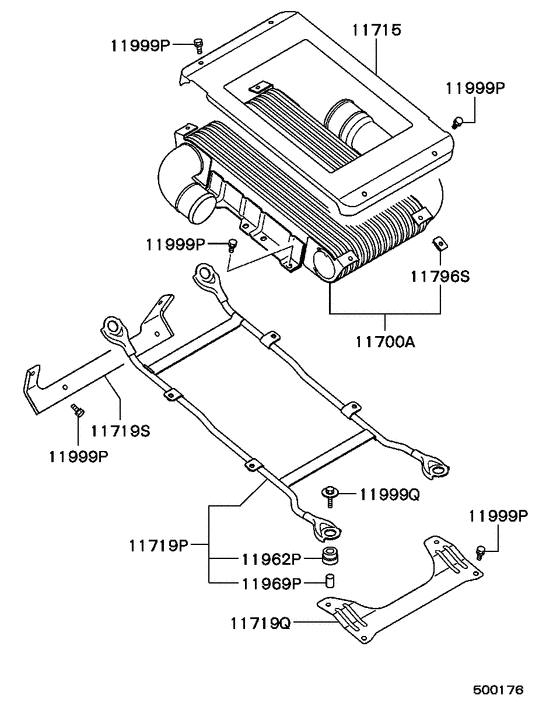

Turbocharger & supercharger (ALL (INTER COOLER)) Diagram Mitsubishi RVR
- Year
- 1997 - 1999
- Sales region
- Japan
- Note
- SPORTS-GEAR X3,5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- SPORTS-GEAR X3
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11700A
|
11700A
MR323981 INTER COOLER ASSY |
MR323981 |
US $908.54 |
||
|
11715
|
11715
MR323988 COVER, INTER COOLER |
MR323988 |
US $36.26 |
||
|
11719P
|
11719P
MR323984 BRACKET, INTER COOLER |
MR323984 |
US $119.88 |
||
|
11719Q
|
11719Q
MR323987 BRACKET, INTER COOLER |
MR323987 |
US $17.76 |
||
|
11719S
|
11719S
MR323986 BRACKET, INTER COOLER |
MR323986 |
US $14.65 |
||
|
11796S
|
11796S
MD620436 NUT, T/M OIL COOLER |
MD620436 |
US $2.22 |
||
|
11962P
|
11962P
MD081488 CUSHION, INTER COOLER BRACKET |
MD081488 |
US $4.38 |
||
|
11969P
|
11969P
MD081525 COLLAR, INTER COOLER BRACKET |
MD081525 |
US $9.99 |
||
|
11999P
|
11999P
MF245423 BOLT, ACCEL CABLE SUPPORTWasher assembled,6x14 |
MF245423 |
US $2.46 |
||
|
11999Q
|
11999Q
MD161216 BOLT, AIR CLEANERWasher assembled,6x30 |
MD161216 |
from US $1.74 |
