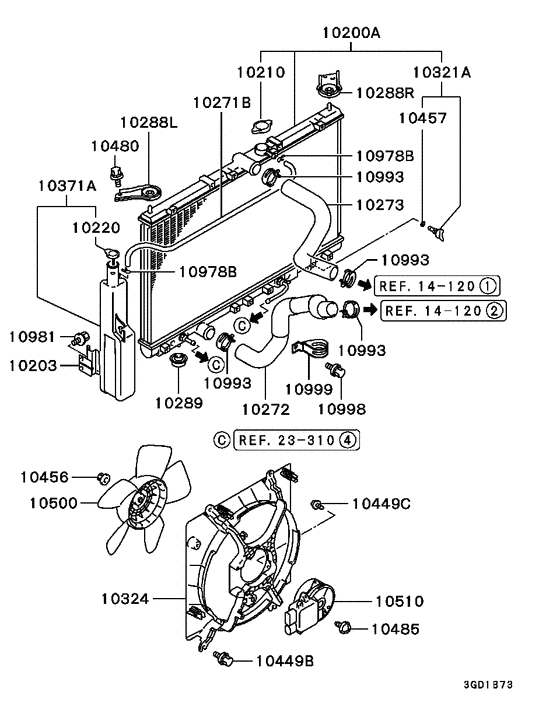

Radiator,hose & condenser tank (ALL) Diagram Mitsubishi RVR
- Year
- 1997 - 2002
- Sales region
- Japan
- Note
- SPORTS-GEAR X3,4FA/T
- drive
- 4WD
- transmission
- 4FA/T
- grade
- SPORTS-GEAR X3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10200A
|
10200A
MR312097 RADIATOR ASSY |
MR312097 |
US $1,612.80 |
||
|
10200A
|
10200A
MR481513 RADIATOR ASSY |
MR481513 |
US $1,627.20 |
||
|
10203
|
10203
MR281586 BRACKET, RADIATOR CONDENSER TANK |
MR281586 |
US $6.07 |
||
|
10210
|
10210
MB660667
CAP, RADIATOR
|
MB660667 |
— | ||
| replacement | |||||
|
10210
|
10210
MR481216 CAP, RADIATOR |
MR481216 |
from US $16.03 |
||
|
10210
|
10210
MR481216 CAP, RADIATOR |
MR481216 |
from US $16.03 |
||
|
10220
|
10220
MR312077 CAP, RADIATOR CONDENSER TANK |
MR312077 |
from US $7.94 |
||
|
10271B
|
10271B
MR340872 HOSE, RADIATOR CONDENSER TANK |
MR340872 |
US $7.55 |
||
|
10272
|
10272
MR281598 HOSE, RADIATOR, LWR |
MR281598 |
US $29.60 |
||
|
10273
|
10273
MR281596 HOSE, RADIATOR, UPR |
MR281596 |
US $22.20 |
||
|
10288L
|
10288L
MR431433 INSULATOR, RADIATOR SUPPORT, UPR LH |
MR431433 |
US $22.20 |
||
|
10288R
|
10288R
MR431434 INSULATOR, RADIATOR SUPPORT, UPR RH |
MR431434 |
US $22.20 |
||
|
10289
|
10289
MB356978 INSULATOR, RADIATOR SUPPORT, LWR |
MB356978 |
US $4.51 |
||
|
10289
|
10289
MB605102 INSULATOR, RADIATOR SUPPORT, LWR |
MB605102 |
US $6.07 |
||
|
10321A
|
10321A
MB597892 PLUG ASSY, RADIATOR |
MB597892 |
from US $3.61 |
||
|
10324
|
10324
MR281565 SHROUD, COOLING FAN |
MR281565 |
US $116.92 |
||
|
10371A
|
10371A
MR281580 TANK ASSY, RADIATOR CONDENSER |
MR281580 |
US $25.90 |
||
|
10449B
|
10449B
MB605073 BOLT, RADIATORWasher assembled |
MB605073 |
US $1.37 |
||
|
10449C
|
10449C
MB890293 BOLT, RADIATOR5x11 |
MB890293 |
from US $1.79 |
||
|
10456
|
10456
MB906064 NUT, RADIATOR |
MB906064 |
from US $1.74 |
||
|
10457
|
10457
MB007701 O-RING, RADIATORD=5 |
MB007701 |
from US $3.32 |
||
|
10480
|
10480
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
10485
|
10485
MR431306 BOLT, RADIATOR |
MR431306 |
US $1.92 |
||
|
10500
|
10500
MR373726 FAN, COOLING |
MR373726 |
US $51.06 |
||
|
10510
|
10510
MR373727 MOTOR, COOLING FAN |
MR373727 |
US $535.81 |
||
|
10978B
|
10978B
MS660205 CLIP, RADIATOR PIPINGD=11.5 |
MS660205 |
from US $1.33 |
||
|
10981
|
10981
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
10993
|
10993
MB356968
CLIP, RADIATOR PIPING
|
MB356968 |
— | ||
| replacement | |||||
|
10993
|
10993
MR404538 CLIP, RADIATOR PIPINGD=37 |
MR404538 |
from US $2.83 |
||
|
10998
|
10998
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
10999
|
10999
MR281656 CLAMP, RADIATOR PIPING45 |
MR281656 |
US $6.36 |
||
|
