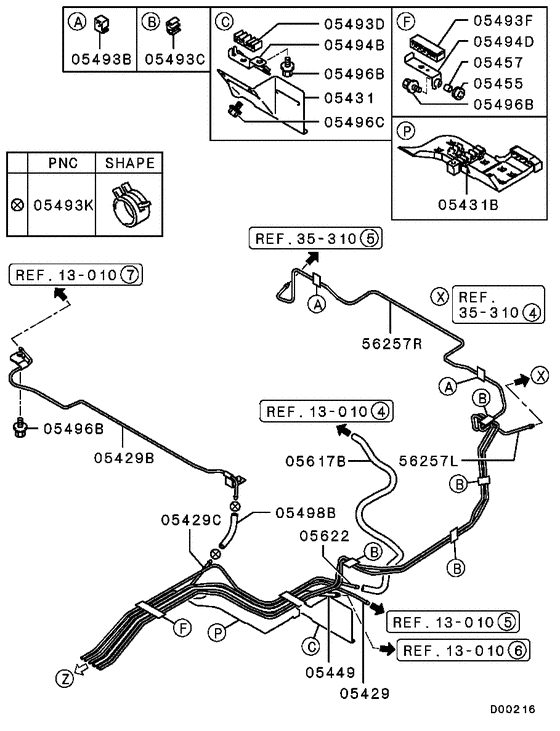

Fuel line & vapor gas control (FUEL LINE..REAR(-0004.3)) Diagram Mitsubishi SPACE RUNNER
- Year
- 1999 - 2000
- Sales region
- EUR
- Note
- GLS(GDI),4FA/T GERMANY
- drive
- 2WD
- transmission
- 4FA/T
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05429
|
05429
MR385671 PIPE, FUEL RETURN |
MR385671 |
US $46.62 |
||
|
05429B
|
05429B
MR385665 PIPE, FUEL RETURN |
MR385665 |
US $28.12 |
||
|
05429C
|
05429C
MR385663 PIPE, FUEL RETURN |
MR385663 |
US $39.96 |
||
|
05431
|
05431
MR373768 PROTECTOR, FUEL PIPE |
MR373768 |
US $24.42 |
||
|
05431B
|
05431B
MR464104 PROTECTOR, FUEL PIPE |
MR464104 |
US $6.36 |
||
|
05431B
|
05431B
MR464105
PROTECTOR,FUEL PIPE
|
MR464105 |
— | ||
|
05449
|
05449
MR340844 PIPE, FUEL LINE |
MR340844 |
US $45.14 |
||
|
05455
|
05455
MB221305 CUSHION, FUEL LINE |
MB221305 |
US $4.51 |
||
|
05457
|
05457
MB845609 COLLAR, FUEL LINE |
MB845609 |
US $3.15 |
||
|
05493B
|
05493B
MR249619 CLIP, CLUTCH M/CYL |
MR249619 |
US $2.52 |
||
|
05493C
|
05493C
MB082164 CLIP, FUEL RETURN LINE4.6 |
MB082164 |
US $3.97 |
||
|
05493D
|
05493D
MB329980 CLIP, FUEL LINE |
MB329980 |
US $7.52 |
||
|
05493D
|
05493D
MR450190 CLIP,FUEL LINE |
MR450190 |
US $5.18 |
||
|
05493F
|
05493F
MR404335 CLIP, FUEL LINE |
MR404335 |
US $4.14 |
||
|
05493F
|
05493F
MR450192
CLIP,FUEL LINE
|
MR450192 |
— | ||
|
05493K
|
05493K
MB329606 CLIP, FUEL RETURN LINE |
MB329606 |
US $4.51 |
||
|
05494B
|
05494B
MR385673 CLAMP, FUEL LINE |
MR385673 |
US $10.21 |
||
|
05494D
|
05494D
MR404339 CLAMP, FUEL LINE |
MR404339 |
US $5.77 |
||
|
05496B
|
05496B
MS240126 BOLT, RADIATOR CONDENSER TANKWasher assembled,8x25 |
MS240126 |
from US $1.07 |
||
|
05496C
|
05496C
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.96 |
||
|
05498B
|
05498B
MU602741 HOSE, FUEL RETURN LINE6x410 |
MU602741 |
US $26.68 |
||
|
05617B
|
05617B
MR450202
HOSE,FUEL VAPOR PURGE
|
MR450202 |
— | ||
|
05622
|
05622
MR450186
PIPE,FUEL VAPOR
|
MR450186 |
— | ||
|
05622
|
05622
MR552171
PIPE,FUEL VAPOR
|
MR552171 |
— | ||
|
56257L
|
56257L
MR449041
TUBE,BRAKE MAIN
|
MR449041 |
— | ||
|
56257L
|
56257L
MR527781
TUBE,BRAKE MAIN,LH
|
MR527781 |
— | ||
|
56257R
|
56257R
MR449042
TUBE,BRAKE MAIN
|
MR449042 |
— | ||
|
56257R
|
56257R
MR527782
TUBE,BRAKE MAIN,RH
|
MR527782 |
— | ||
|
13 010
|
Fuel tank
13 010
|
||||
|
13 010
|
Fuel tank
13 010
|
||||
|
13 010
|
Fuel tank
13 010
|
||||
|
35 310
|
Brake line
35 310
|
||||
|
35 310
|
Brake line
35 310
|
||||
|
35 310
|
Brake line
35 310
|
||||
