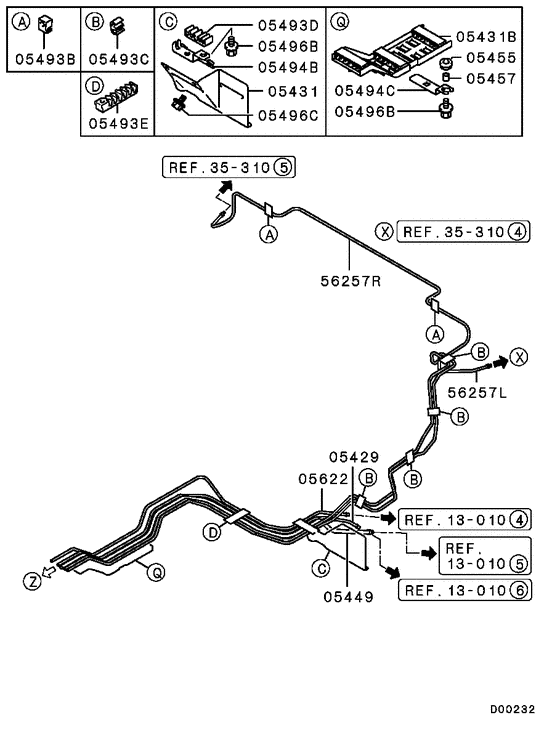

Fuel line & vapor gas control (REAR..LHD) Diagram Mitsubishi SPACE WAGON
- Year
- 2000 - 2004
- Sales region
- EUR
- Note
- GLX(7PERSONS/SEAT HEATER),5FM/T LHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05429
|
05429
MR552201
PIPE,FUEL RETURN
|
MR552201 |
— | ||
|
05431
|
05431
MR373769 PROTECTOR, FUEL PIPE |
MR373769 |
US $34.78 |
||
|
05431B
|
05431B
MR464093 PROTECTOR, FUEL PIPE |
MR464093 |
US $5.33 |
||
|
05449
|
05449
MR552200
PIPE,FUEL LINE
|
MR552200 |
— | ||
|
05455
|
05455
MB221305 CUSHION, FUEL LINE |
MB221305 |
US $4.51 |
||
|
05457
|
05457
MB845609 COLLAR, FUEL LINE |
MB845609 |
US $3.15 |
||
|
05493B
|
05493B
MR249619 CLIP, CLUTCH M/CYL |
MR249619 |
US $2.52 |
||
|
05493C
|
05493C
MB082164 CLIP, FUEL RETURN LINE4.6 |
MB082164 |
US $3.97 |
||
|
05493D
|
05493D
MB329980 CLIP, FUEL LINE |
MB329980 |
US $7.52 |
||
|
05493E
|
05493E
MR266961 CLIP, FUEL LINE |
MR266961 |
US $5.62 |
||
|
05494B
|
05494B
MR385673 CLAMP, FUEL LINE |
MR385673 |
US $10.21 |
||
|
05494C
|
05494C
MR464106 CLAMP, FUEL LINE |
MR464106 |
US $3.26 |
||
|
05496B
|
05496B
MS240126 BOLT, RADIATOR CONDENSER TANKWasher assembled,8x25 |
MS240126 |
from US $1.07 |
||
|
05496C
|
05496C
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.96 |
||
|
05622
|
05622
MR552040 PIPE, FUEL VAPOR |
MR552040 |
US $54.76 |
||
|
56257L
|
56257L
MR493771
TUBE,BRAKE MAIN
|
MR493771 |
— | ||
|
56257L
|
56257L
MR527391
TUBE,BRAKE MAIN,LH
|
MR527391 |
— | ||
|
56257R
|
56257R
MR493772
TUBE,BRAKE MAIN
|
MR493772 |
— | ||
|
56257R
|
56257R
MR527392
TUBE,BRAKE MAIN,RH
|
MR527392 |
— | ||
|
13 010
|
Fuel tank
13 010
|
||||
|
13 010
|
Fuel tank
13 010
|
||||
|
35 310
|
Brake line
35 310
|
||||
|
35 310
|
Brake line
35 310
|
||||
|
35 310
|
Brake line
35 310
|
||||
|
35 310
|
Brake line
35 310
|
||||
