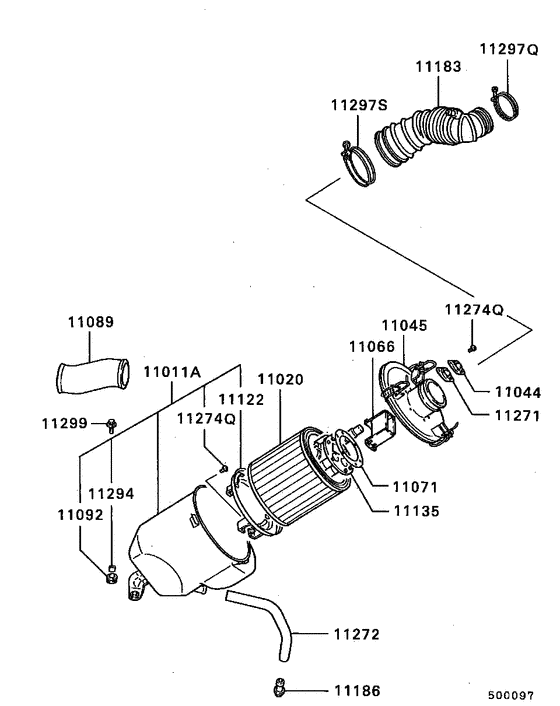

Air cleaner (ALL) Diagram Mitsubishi STARION
- Year
- 1986 - 1990
- Sales region
- EUR
- Note
- I/C TURBO EX,5FM/T LHD
- transmission
- 5FM/T
- grade
- I/C EX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011A
|
11011A
MD620022 BODY ASSY, AIR CLEANER |
MD620022 |
US $302.85 |
||
|
11020
|
11020
MD607648
ELEMENT, AIR CLEANER
|
MD607648 |
— | ||
|
11044
|
11044
MD620005
COVER, AIR CLEANER FLOW SENSOR CONNECTOR
|
MD620005 |
— | ||
|
11045
|
11045
MD620023
COVER,AIR CLEANER
|
MD620023 |
— | ||
|
11066
|
11066
MD620000 FILTER, AIR CLEANER NOISE REDUCTION |
MD620000 |
US $86.58 |
||
|
11071
|
11071
MD620002 GASKET, AIR CLEANER AIR FLOW SENSOR |
MD620002 |
US $13.47 |
||
|
11089
|
11089
MD041960
DUCT, AIR CLEANER INTAKE
|
MD041960 |
— | ||
|
11092
|
11092
MD040886 INSULATOR, AIR CLEANER SUPPORT |
MD040886 |
US $3.83 |
||
|
11122
|
11122
MD603833 PLATE, AIR CLEANER ELEMENT SUPPORT |
MD603833 |
US $34.78 |
||
|
11135
|
11135
MD103865
SENSOR,AIR CLEANER AIR FLOW
|
MD103865 |
— | ||
|
11183
|
11183
MD104713
DUCT,AIR CLEANER TO T/C
|
MD104713 |
— | ||
|
11186
|
11186
MD050158 NIPPLE, AIR CLEANER |
MD050158 |
US $9.03 |
||
|
11271
|
11271
MD620003 GROMMET, AIR CLEANER |
MD620003 |
US $7.52 |
||
|
11272
|
11272
MD012531
HOSE, AIR CLEANER
|
MD012531 |
— | ||
|
11274Q
|
11274Q
MF350744 SCREW, ENG BREATHERWasher assembled,4x10 |
MF350744 |
US $2.05 |
||
|
11274Q
|
11274Q
MF351284
SCREW, AIR CLEANER INR
|
MF351284 |
— | ||
|
11294
|
11294
MT206583 COLLAR, AIR CLEANER |
MT206583 |
US $2.74 |
||
|
11297Q
|
11297Q
MD073606 CLAMP, AIR CLEANER71 |
MD073606 |
US $7.25 |
||
|
11297S
|
11297S
MD122530
CLAMP, AIR CLEANER
|
MD122530 |
— | ||
|
11297S
|
11297S
MF661041 CLAMP, AIR CLEANERD=90 |
MF661041 |
US $4.38 |
||
|
11299
|
11299
MF247253 BOLT, ENG OIL COOLERWasher assembled,8x25 |
MF247253 |
from US $0.64 |
||
|
11299
|
11299
MF248193 BOLT, AIR CLEANERWasher assembled,8x25 |
MF248193 |
US $2.60 |
