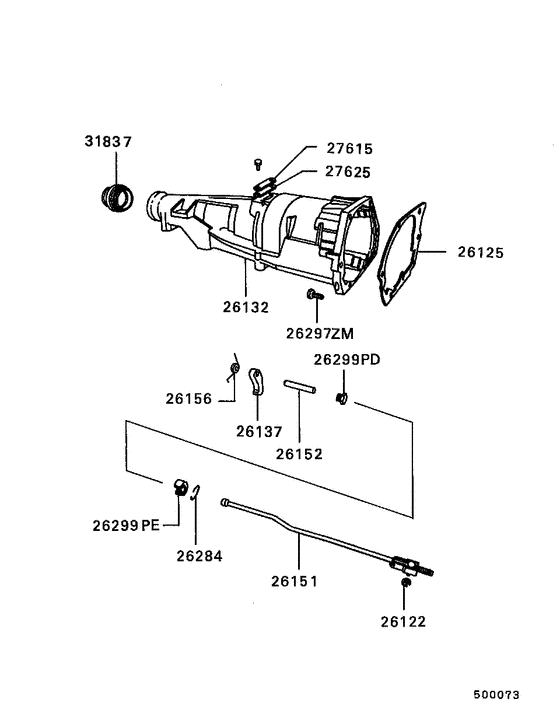

A/t case (ALL (EXTENSION HOUSING,EQUIPMENT PARTS)) Diagram Mitsubishi TRUCK
- Year
- 1989 - 1996
- Sales region
- MMNA
- Note
- LOW LINE,STANDARD-2WD,4CA/T FED
- drive
- 2WD/2WD
- transmission
- 4CA/T
- grade
- LOW LINE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
26122
|
26122
M1626749 E-RING,A/T PARKING PAWL ROD |
M1626749 |
US $4 |
||
|
26125
|
26125
M4549245
GASKET,A/T EXTENSION HOUSING
|
M4549245 |
— | ||
|
26132
|
26132
M4461086
HOUSING,A/T CASE EXTENSION
|
M4461086 |
— | ||
|
26137
|
26137
M4471415
PAWL,A/T CASE PARKING
|
M4471415 |
— | ||
|
26151
|
26151
M4431748
ROD,A/T PARKING PAWL
|
M4431748 |
— | ||
|
26152
|
26152
M2466892 SHAFT,A/T PARKING PAWL |
M2466892 |
US $12.43 |
||
|
26156
|
26156
M2466909 SPRING,A/T PARKING PAWL |
M2466909 |
US $3.55 |
||
|
26284
|
26284
M2538034 SNAP RING,A/T CASE |
M2538034 |
US $3.55 |
||
|
26297ZM
|
26297ZM
M6033745
BOLT,A/T CASE
|
M6033745 |
— | ||
|
26299PD
|
26299PD
M1798191
PLUG,A/T CASE
|
M1798191 |
— | ||
|
26299PE
|
26299PE
M2538042 SUPPORT,A/T PARKING PAWL ROD CAM |
M2538042 |
US $31.82 |
||
|
27615
|
27615
M2466957 COVER,A/T OUTPUT SHAFT BEARING |
M2466957 |
US $12.88 |
||
|
27625
|
27625
M2801398 GASKET,A/T OUTPUT SHAFT BEARING COVER |
M2801398 |
US $5.33 |
||
|
31837
|
31837
M3515383
SEAL,PROPELLER SHAFT SLEEVE YOKE
|
M3515383 |
— |
