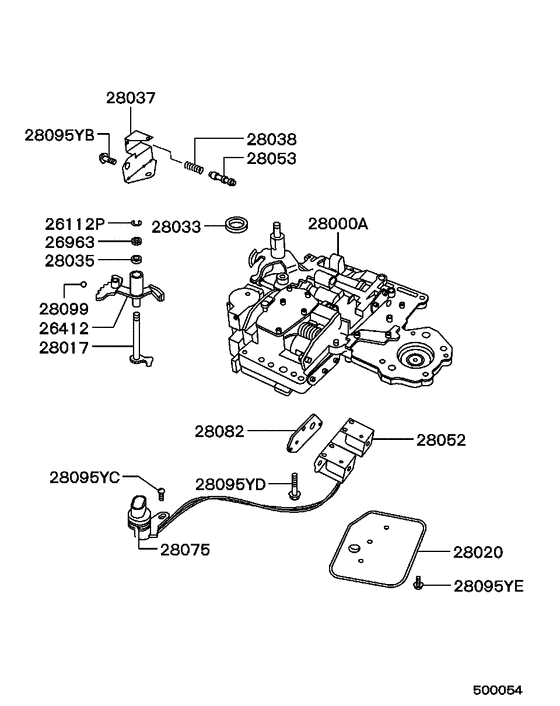

A/t valve body (ALL) Diagram Mitsubishi TRUCK
- Year
- 1989 - 1996
- Sales region
- MMNA
- Note
- LOW LINE,STANDARD-2WD,4CA/T FED
- drive
- 2WD/2WD
- transmission
- 4CA/T
- grade
- LOW LINE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
26412
|
26412
M4531159
LEVER,A/T MANUAL VALVE
|
M4531159 |
— | ||
|
26963
|
26963
M2538062 WASHER,A/T VALVE BODY INR |
M2538062 |
US $2.07 |
||
|
28000A
|
28000A
M4505058
BODY ASSY,A/T VALVE
|
M4505058 |
— | ||
|
28017
|
28017
M3681227 LEVER,A/T VALVE BODY THROTTLE VALVE |
M3681227 |
US $51.80 |
||
|
28020
|
28020
M3515996 OIL FILTER,A/T VALVE BODY |
M3515996 |
US $73.26 |
||
|
28033
|
28033
M3878447 OIL SEAL,A/T CASE MANUAL CONTROL SHAFT |
M3878447 |
US $15.54 |
||
|
28035
|
28035
M2466548 SEAL,A/T VALVE BODY THROTTLE LEVER SHAFT |
M2466548 |
US $6.36 |
||
|
28037
|
28037
M4446197
BRACKET,A/T VALVE BODY THROTTLE PRESSURE
|
M4446197 |
— | ||
|
28038
|
28038
M4130492
SPRING,A/T KICKDOWN SERVO PISTON
|
M4130492 |
— | ||
|
28052
|
28052
M4431954
VALVE UNIT,A/T VALVE BODY SOLENOID
|
M4431954 |
— | ||
|
28053
|
28053
M4202474
SWITCH,A/T KICKDOWN SERVO
|
M4202474 |
— | ||
|
28075
|
28075
M6033448
O-RING,A/T VALVE BODY
|
M6033448 |
— | ||
|
28082
|
28082
M4446194
GASKET,A/T VALVE BODY
|
M4446194 |
— | ||
|
28095YB
|
28095YB
M6030609
SCREW,A/T CASE
|
M6030609 |
— | ||
|
28095YC
|
28095YC
M6033985
SCREW,A/T VALVE BODY
|
M6033985 |
— | ||
|
28095YD
|
28095YD
M0181071
SCREW,A/T VALVE BODY
|
M0181071 |
— | ||
|
28095YE
|
28095YE
M6033826
SCREW,A/T VALVE BODY
|
M6033826 |
— | ||
|
28099
|
28099
M0147488
BALL,A/T CASE
|
M0147488 |
— |
