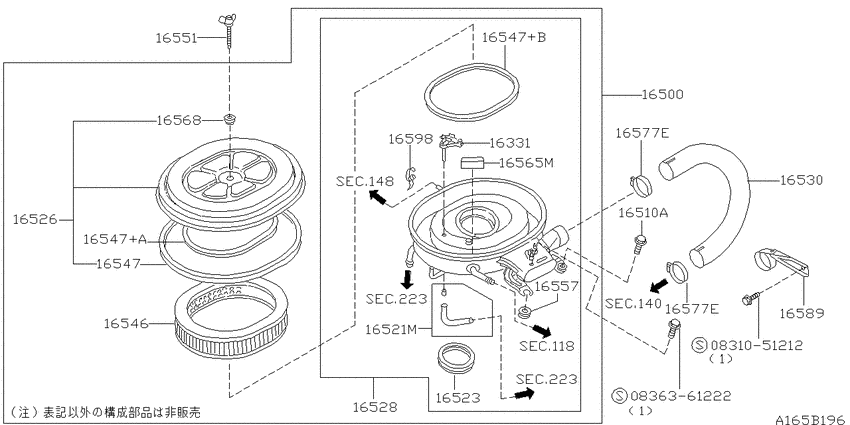

Air cleaner (1992-01-01 ~ 1993-08-01; NA20S) Diagram Nissan ATLAS/CONDOR
- Year
- 1992 - 1995
- Sales region
- Japan
- Engine
- NA20S
- drive
- 2WD
- grade
- DX
- body
- WC
- body type
- A
- tire & max load
- ST.1T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0831051212
|
0831051212
08310-51212
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-51212 |
— | ||
|
0836361222
|
0836361222
08363-61222
SCREW
|
08363-61222 |
— | ||
| replacement | |||||
|
0836361222
|
0836361222
08360-61222
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61222 |
— | ||
|
118
|
Crankcase ventilation
118
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
148
|
Secondary air system
148
|
||||
|
16331
|
16331
16331H1010 Compensator-Idle9201--01 ~ 9308--01; NA20S |
16331H1010 |
US $69.03 |
||
|
16500
|
16500
16500-27T01 Air Cleaner9201--01 ~ 9308--01; NA20S |
16500-27T01 |
US $273.60 |
||
|
16500
|
16500
16500-4T100 Air Cleaner9308--01 ~ 9506--01; NA20S |
16500-4T100 |
US $382.32 |
||
|
16510A
|
16510A
01121-00871 BOLT9201--01 ~ 9308--01; NA20S |
01121-00871 |
US $2.21 |
||
|
16510A
|
16510A
16516-W0400 Bolt9308--01 ~ 9506--01; NA20S |
16516-W0400 |
US $0.86 |
||
|
16521M
|
16521M
1653727T01 Hose-Idle Compensator To Connector9201--01 ~ 9308--01; NA20S |
1653727T01 |
US $8.64 |
||
|
16523
|
16523
16523-W7000
Insulator
9201--01 ~ 9308--01; NA20S |
16523-W7000 |
— | ||
| replacement | |||||
|
16523
|
16523
16523-24G00 Insulator-Air Cleaner9201--01 ~ 9308--01; NA20S |
16523-24G00 |
from US $9.82 |
||
|
16526
|
16526
16526-27T01 Air Cleaner Cover9201--01 ~ 9308--01; NA20S |
16526-27T01 |
US $59.33 |
||
|
16528
|
16528
16528-27T01 Body Assy-Air Cleaner9201--01 ~ 9308--01; NA20S |
16528-27T01 |
US $236.16 |
||
|
16530
|
16530
16530-06E02 DUCT-AIR9201--01 ~ 9308--01; NA20S |
16530-06E02 |
US $71.71 |
||
|
16546
|
16546
AY120NS008 Element Assy-Air9201--01 ~ 9308--01; NA20S |
AY120NS008 |
US $20.98 |
||
|
16547
|
16547
16547-D1100 Packing9201--01 ~ 9308--01; NA20S |
16547-D1100 |
US $49.10 |
||
| replacement | |||||
|
16547
|
16547
16549-C6800
Packing
9201--01 ~ 9308--01; NA20S |
16549-C6800 |
— | ||
|
16547
|
16547
16548-D1100 Packing9201--01 ~ 9308--01; NA20S |
16548-D1100 |
US $6.62 |
||
|
16547
|
16547
16548-D1100 Packing9201--01 ~ 9308--01; NA20S |
16548-D1100 |
US $6.62 |
||
|
16547+A
|
16547+A
16548-D1100 Packing9201--01 ~ 9308--01; NA20S |
16548-D1100 |
US $6.62 |
||
|
16547+B
|
16547+B
16548-D1100 Packing9201--01 ~ 9308--01; NA20S |
16548-D1100 |
US $6.62 |
||
|
16551
|
16551
16551-27T00 Nut-Wing9201--01 ~ 9308--01; NA20S |
16551-27T00 |
US $9.65 |
||
|
16557
|
16557
16557-D1100 Mounting Rubber9201--01 ~ 9308--01; NA20S |
16557-D1100 |
US $5.27 |
||
|
16565M
|
16565M
16565-T8000 Filter Assy9201--01 ~ 9308--01; NA20S |
16565-T8000 |
US $3.02 |
||
|
16568
|
16568
16568-W7000 Packing9201--01 ~ 9308--01; NA20S |
16568-W7000 |
from US $1.59 |
||
|
16568
|
16568
14859-W1100 Packing-Relief Valve9308--01 ~ 9506--01; NA20S |
14859-W1100 |
US $6.19 |
||
|
16577E
|
16577E
0155600081 CLAMP9201--01 ~ 9308--01; NA20S |
0155600081 |
US $6.77 |
||
|
16577E
|
16577E
0155600081 CLAMP9201--01 ~ 9308--01; NA20S |
0155600081 |
US $6.77 |
||
|
16589
|
16589
16564-27T00 Bracket9201--01 ~ 9308--01; NA20S |
16564-27T00 |
US $22.03 |
||
|
16598
|
16598
16598-12G00 Clip9201--01 ~ 9308--01; NA20S |
16598-12G00 |
US $2.74 |
||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
