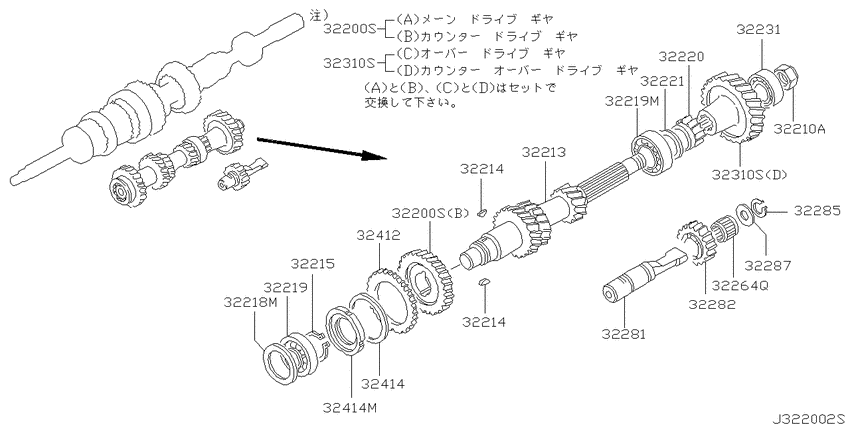

Transmission gear (1999-06-01 ~ 2002-08-01; カウンター ギア; (ST.075T+ST.1T).MT.F5) Diagram Nissan ATLAS/CONDOR
- Year
- 1999 - 2004
- Sales region
- Japan
- Engine
- TD27
- drive
- 4WD
- grade
- DX
- body
- T
- body type
- LFW
- tire & max load
- ST.1T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32200S
|
32200S
32200-25N95 Gear Set-Main & Counter Drive9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5 |
32200-25N95 |
US $359.66 |
||
|
32200S
|
32200S
32200-25N95 Gear Set-Main & Counter Drive9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5 |
32200-25N95 |
US $359.66 |
||
|
32210A
|
32210A
32236E9500 Nut9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5 |
32236E9500 |
from US $5.77 |
||
|
32213
|
32213
32212-27T64 Gear-Counter9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5 |
32212-27T64 |
US $279.36 |
||
|
32214
|
32214
32214-58S61 Key-Woodruff9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5 |
32214-58S61 |
US $3.18 |
||
|
32214
|
32214
32214-58S61 Key-Woodruff9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5 |
32214-58S61 |
US $3.18 |
||
|
32215
|
32215
32215-E9000 Ring-Snap9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5; T=1.4 ｾﾝﾀｸｼﾃ ｼﾖｳ |
32215-E9000 |
US $3.06 |
||
|
32215
|
32215
32215-E9001 Ring-Snap9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5; T=1.5 ｾﾝﾀｸｼﾃ ｼﾖｳ |
32215-E9001 |
US $3.06 |
||
|
32215
|
32215
32215-E9002 Ring-Snap9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5; T=1.6 ｾﾝﾀｸｼﾃ ｼﾖｳ |
32215-E9002 |
US $3.06 |
||
|
32218M
|
32218M
32218-V5000 Shim-Bearing9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5; T=0.1,ｾﾝﾀｸｼﾃ ｼﾖｳ |
32218-V5000 |
from US $3.72 |
||
|
32218M
|
32218M
32218-V5001 Shim-Bearing9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5; T=0.2,ｾﾝﾀｸｼﾃ ｼﾖｳ |
32218-V5001 |
from US $3.74 |
||
|
32218M
|
32218M
32218-V5002 Shim-Bearing9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5; T=0.3,ｾﾝﾀｸｼﾃ ｼﾖｳ |
32218-V5002 |
from US $3.83 |
||
|
32218M
|
32218M
32218-V5003 Shim-Bearing9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5; T=0.4,ｾﾝﾀｸｼﾃ ｼﾖｳ |
32218-V5003 |
from US $3.68 |
||
|
32218M
|
32218M
32218V5004 Shim-Bearing9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5; T=0.5,ｾﾝﾀｸｼﾃ ｼﾖｳ |
32218V5004 |
from US $2.22 |
||
|
32218M
|
32218M
32218V5005 Shim-Bearing9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5; T=0.6 ｾﾝﾀｸｼﾃ ｼﾖｳ |
32218V5005 |
from US $3.70 |
||
|
32219
|
32219
32219V5260 Bearing-Counter Shaft9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5 |
32219V5260 |
from US $19.41 |
||
|
32219
|
32219
32203V5260 Bearing-Counter Shaft9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5 |
32203V5260 |
from US $37.23 |
||
|
32219M
|
32219M
32203V5260 Bearing-Counter Shaft9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5 |
32203V5260 |
from US $37.23 |
||
|
32220
|
32220
3222080G74 Gear-Reverse, Counter9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5 |
3222080G74 |
from US $38.11 |
||
|
32221
|
32221
32221-36N10 Spacer-Counter Reverse Gear9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5 |
32221-36N10 |
US $3.88 |
||
|
32231
|
32231
32319N4860 Bearing-Counter Shaft9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5 |
32319N4860 |
from US $13.82 |
||
|
32264Q
|
32264Q
32272-15U00 Bearing-Needle9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5 |
32272-15U00 |
US $13.10 |
||
|
32281
|
32281
32320-15U20 Shaft-Reverse Idler9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5 |
32320-15U20 |
US $58.90 |
||
|
32282
|
32282
32282-36N04 Gear-Reverse Idler9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5 |
32282-36N04 |
US $55.87 |
||
|
32285
|
32285
32285-20100 Ring-Snap9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5 |
32285-20100 |
from US $2.87 |
||
|
32287
|
32287
32284-E9000 Washer-Thrust, Reverse Idler9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5 |
32284-E9000 |
US $4.03 |
||
|
32310S
|
32310S
32310-36N54 Gear Set-Main & Counter Overdrive9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5 |
32310-36N54 |
US $350.15 |
||
|
32310S
|
32310S
32310-36N54 Gear Set-Main & Counter Overdrive9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5 |
32310-36N54 |
US $350.15 |
||
|
32412
|
32412
32412-55S60 Gear-Sub, Counter Drive Gear9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5 |
32412-55S60 |
from US $11.23 |
||
|
32414
|
32414
32415-55S60 Spring-Sub Gear, Counter Drive Gear9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5 |
32415-55S60 |
from US $3.88 |
||
|
32414
|
32414
3241458S60 Bracket-Sub Gear, Counter Drive Gear9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5 |
3241458S60 |
from US $8.73 |
||
|
32414M
|
32414M
3241458S60 Bracket-Sub Gear, Counter Drive Gear9906--01 ~ 0208--01; (ST.075T+ST.1T).MT.F5 |
3241458S60 |
from US $8.73 |
