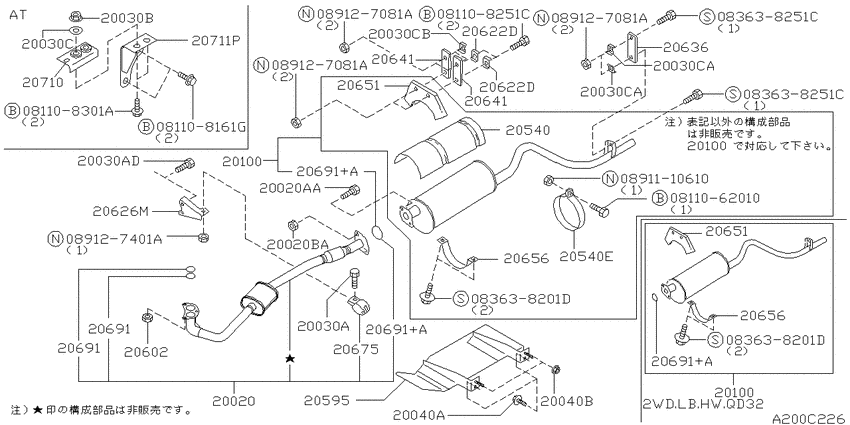

Exhaust tube & muffler (1999-06-01 ~ 2002-08-01; 標準仕様; T2WD.HST.15T.QD32.MT.F5 +SB.QD32 +LB.SWT.15T.QD32.MT.F5 +L.QD32 +SWT.1T.QD32 +QD32.AT) Diagram Nissan ATLAS/CONDOR
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- QD32
- drive
- 2WD
- grade
- DX
- body
- T
- body type
- LFW
- tire & max load
- HST.15T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811062010
|
0811062010
08110-62010
ﾎﾞﾙﾄ,ﾍｸｻｺﾞﾝ
|
08110-62010 |
— | ||
|
081108161G
|
081108161G
08110-8161G
ﾎﾞﾙﾄ,ﾍｸｻｺﾞﾝ
|
08110-8161G |
— | ||
|
081108251C
|
081108251C
08110-8251C
ﾎﾞﾙﾄ,ﾍｸｻｺﾞﾝ
|
08110-8251C |
— | ||
|
081108301A
|
081108301A
08110-8301A Bolt-Condenser Fix |
08110-8301A |
US $0.41 |
||
|
083638201D
|
083638201D
08363-8201D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-8201D |
— | ||
|
083638201D
|
083638201D
08363-8201D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-8201D |
— | ||
|
083638251C
|
083638251C
08363-8251C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-8251C |
— | ||
|
083638251C
|
083638251C
08363-8251C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-8251C |
— | ||
|
0891110610
|
0891110610
0891110610 NUT |
0891110610 |
US $2.21 |
||
|
089127081A
|
089127081A
089127081A NUT-HEX |
089127081A |
US $2.21 |
||
|
089127081A
|
089127081A
089127081A NUT-HEX |
089127081A |
US $2.21 |
||
|
089127081A
|
089127081A
089127081A NUT-HEX |
089127081A |
US $2.21 |
||
|
089127401A
|
089127401A
089127401A NUT-HEX |
089127401A |
from US $0.56 |
||
|
20020
|
20020
20020-6T425 Tube Assy-Exhaust, Front9708--01 ~ 9906--01; QD32.AT; ｺｸｲﾝNO.20020-6T400 |
20020-6T425 |
US $631.54 |
||
|
20020
|
20020
20020DA226 Tube Assy-Exhaust, Front0208--01 ~ 0308--01; S2WD.HST.15T.QD32.MT.F5 +LB.SWT.15T.QD32.MT.F5 +L.QD32 +SWT.125T.QD32.MT.F5 +QD32.AT; ｽﾀﾝﾌﾟ P/#20020-DA201 |
20020DA226 |
US $1,002.53 |
||
|
20020
|
20020
20020-DA227 Tube Assy-Exhaust, Front0208--01 ~ 0408--01; b*2WD.HST.15T.QD32.MT.F5 +*SB.QD32 +*LB.SWT.15T.QD32.MT.F5 +*L.QD32 +*SWT.125T.QD32.MT.F5 +*QD32.AT |
20020-DA227 |
US $346.92 |
||
|
20020
|
20020
0112540304 BOLT-EGR TUBE9708--01 ~ 9906--01; 3(2WD.LB.LF+2WD.LB.LFW+2WD.LB.A).QD32.MT.F5 +QD32.AT |
0112540304 |
US $2.88 |
||
|
20020
|
20020
0122500331 NUT-WIPER ARM0208--01 ~ 0408--01; b*2WD.HST.15T.QD32.MT.F5 +*SB.QD32 +*LB.SWT.15T.QD32.MT.F5 +*L.QD32 +*SWT.125T.QD32.MT.F5 +*QD32.AT |
0122500331 |
US $1.93 |
||
|
20020
|
20020
0122501014 NUT9708--01 ~ 9906--01; 3(2WD.LB.LF+2WD.LB.LFW+2WD.LB.A).QD32.MT.F5 +QD32.AT |
0122501014 |
US $4.18 |
||
|
20020AA
|
20020AA
0112540304 BOLT-EGR TUBE9708--01 ~ 9906--01; 3(2WD.LB.LF+2WD.LB.LFW+2WD.LB.A).QD32.MT.F5 +QD32.AT |
0112540304 |
US $2.88 |
||
|
20020BA
|
20020BA
0122501014 NUT9708--01 ~ 9906--01; 3(2WD.LB.LF+2WD.LB.LFW+2WD.LB.A).QD32.MT.F5 +QD32.AT |
0122501014 |
US $4.18 |
||
|
20030A
|
20030A
0112540304 BOLT-EGR TUBE9708--01 ~ 9906--01; QD32.AT |
0112540304 |
US $2.88 |
||
|
20030A
|
20030A
0112568204 SCREW0308--01 ~ ; ¥2WD.HST.15T.QD32.MT.F5 +SB.QD32 +LB.SWT.15T.QD32.MT.F5 +L.QD32 +SWT.125T.QD32.MT.F5 +QD32.AT |
0112568204 |
US $2.45 |
||
|
20030B
|
20030B
0122500331 NUT-WIPER ARM9708--01 ~ 9906--01; QD32.AT |
0122500331 |
US $1.93 |
||
|
20030B
|
20030B
0122500331 NUT-WIPER ARM0308--01 ~ ; ¥2WD.HST.15T.QD32.MT.F5 +SB.QD32 +LB.SWT.15T.QD32.MT.F5 +L.QD32 +SWT.125T.QD32.MT.F5 +QD32.AT |
0122500331 |
US $1.93 |
||
|
20030B
|
20030B
0122500331 NUT-WIPER ARM0308--01 ~ ; ¥2WD.HST.15T.QD32.MT.F5 +SB.QD32 +LB.SWT.15T.QD32.MT.F5 +L.QD32 +SWT.125T.QD32.MT.F5 +QD32.AT |
0122500331 |
US $1.93 |
||
|
20030C
|
20030C
0131100111 WASHER-PLAIN9708--01 ~ 9906--01; QD32.AT |
0131100111 |
US $1.73 |
||
|
20030C
|
20030C
20654-P7100 Washer9708--01 ~ 9906--01; QD32.AT |
20654-P7100 |
US $4.18 |
||
|
20030C
|
20030C
20654-P7100 Washer9708--01 ~ 9906--01; QD32.AT |
20654-P7100 |
US $4.18 |
||
|
20030C
|
20030C
0131100111 WASHER-PLAIN0308--01 ~ ; ¥2WD.HST.15T.QD32.MT.F5 +SB.QD32 +LB.SWT.15T.QD32.MT.F5 +L.QD32 +SWT.125T.QD32.MT.F5 +QD32.AT |
0131100111 |
US $1.73 |
||
|
20030CA
|
20030CA
20654-P7100 Washer9708--01 ~ 9906--01; QD32.AT |
20654-P7100 |
US $4.18 |
||
|
20030CA
|
20030CA
20654-P7100 Washer9708--01 ~ 9906--01; QD32.AT |
20654-P7100 |
US $4.18 |
||
|
20030CB
|
20030CB
20654-P7100 Washer9708--01 ~ 9906--01; QD32.AT |
20654-P7100 |
US $4.18 |
||
|
20100
|
20100
20100-3T527 Muffler Assy-Exhaust Main9708--01 ~ 9906--01; QD32.HST.15T.DX.AT |
20100-3T527 |
US $737.74 |
||
|
20100
|
20100
20100-DA125 Muffler Assy-Exhaust Main0208--01 ~ ; /2WD.HST.15T.QD32.MT.F5 +L.QD32 +HST.15T.QD32.AT |
20100-DA125 |
US $967.13 |
||
|
20100
|
20100
20100-3T527 Muffler Assy-Exhaust Main9708--01 ~ 9906--01; QD32.HST.15T.DX.AT |
20100-3T527 |
US $737.74 |
||
|
20100
|
20100
20100-DA125 Muffler Assy-Exhaust Main0208--01 ~ ; /2WD.HST.15T.QD32.MT.F5 +L.QD32 +HST.15T.QD32.AT |
20100-DA125 |
US $967.13 |
||
|
20540
|
20540
20705-T6000 Insulator-Heat, Exhaust Muffler9708--01 ~ 9906--01; 42WD.LB.A.QD32.(SWT.15T.DX+HST.15T.DX).MT.F5 +QD32.AT |
20705-T6000 |
US $43.92 |
||
|
20540
|
20540
20543-T6000 Clamp-Heat Insulator, Muffler9708--01 ~ 9906--01; 42WD.LB.A.QD32.(SWT.15T.DX+HST.15T.DX).MT.F5 +QD32.AT |
20543-T6000 |
US $13.68 |
||
|
20540E
|
20540E
20543-T6000 Clamp-Heat Insulator, Muffler9708--01 ~ 9906--01; 42WD.LB.A.QD32.(SWT.15T.DX+HST.15T.DX).MT.F5 +QD32.AT |
20543-T6000 |
US $13.68 |
||
|
20602
|
20602
20602-41G00
Nut-Fix, Exhaust Tube
9708--01 ~ 9906--01; 3(2WD.LB.LF+2WD.LB.LFW+2WD.LB.A).QD32.MT.F5 +QD32.AT |
20602-41G00 |
— | ||
| replacement | |||||
|
20602
|
20602
2060241G0A Nut-Fix, Exhaust Tube9708--01 ~ 9906--01; 3(2WD.LB.LF+2WD.LB.LFW+2WD.LB.A).QD32.MT.F5 +QD32.AT |
2060241G0A |
from US $1.54 |
||
|
20622D
|
20622D
20654-P7100 Washer9708--01 ~ 9906--01; 3(2WD.LB.LF+2WD.LB.LFW+2WD.LB.A).QD32.MT.F5 +QD32.AT |
20654-P7100 |
US $4.18 |
||
|
20622D
|
20622D
20654-P7100 Washer9708--01 ~ 9906--01; 3(2WD.LB.LF+2WD.LB.LFW+2WD.LB.A).QD32.MT.F5 +QD32.AT |
20654-P7100 |
US $4.18 |
||
|
20626M
|
20626M
20626-6T100 Bracket-Exhaust Mounting0208--01 ~ 0308--01; ¥2WD.HST.15T.QD32.MT.F5 +SB.QD32 +LB.SWT.15T.QD32.MT.F5 +L.QD32 +SWT.125T.QD32.MT.F5 +QD32.AT |
20626-6T100 |
US $16.42 |
||
|
20636
|
20636
20636N4600
Strap-Exhaust Hanger
9708--01 ~ 9906--01; QD32.AT |
20636N4600 |
— | ||
| replacement | |||||
|
20636
|
20636
20636-MD70B Strap-Exhaust Hanger9708--01 ~ 9906--01; QD32.AT |
20636-MD70B |
US $60.99 |
||
|
20641
|
20641
20640T6000 Strap-Exhaust Hanger9708--01 ~ 9906--01; 3(2WD.LB.LF+2WD.LB.LFW+2WD.LB.A).QD32.MT.F5 +QD32.AT |
20640T6000 |
US $8.78 |
||
| replacement | |||||
|
20641
|
20641
20636-MD70B Strap-Exhaust Hanger9708--01 ~ 9906--01; 3(2WD.LB.LF+2WD.LB.LFW+2WD.LB.A).QD32.MT.F5 +QD32.AT |
20636-MD70B |
US $60.99 |
||
|
20641
|
20641
20640T6000 Strap-Exhaust Hanger9708--01 ~ 9906--01; 3(2WD.LB.LF+2WD.LB.LFW+2WD.LB.A).QD32.MT.F5 +QD32.AT |
20640T6000 |
US $8.78 |
||
| replacement | |||||
|
20641
|
20641
20636-MD70B Strap-Exhaust Hanger9708--01 ~ 9906--01; 3(2WD.LB.LF+2WD.LB.LFW+2WD.LB.A).QD32.MT.F5 +QD32.AT |
20636-MD70B |
US $60.99 |
||
|
20651
|
20651
20651-T6000 Bracket-Exhaust Tube9708--01 ~ 9906--01; 3(2WD.LB.LF+2WD.LB.LFW+2WD.LB.A).QD32.MT.F5 +QD32.AT |
20651-T6000 |
US $15.41 |
||
|
20651
|
20651
20651-T6000 Bracket-Exhaust Tube9708--01 ~ 9906--01; 3(2WD.LB.LF+2WD.LB.LFW+2WD.LB.A).QD32.MT.F5 +QD32.AT |
20651-T6000 |
US $15.41 |
||
|
20656
|
20656
20656-T6000 Clamp-Muffler, Lower9708--01 ~ 9906--01; 3(2WD.LB.LF+2WD.LB.LFW+2WD.LB.A).QD32.MT.F5 +QD32.AT |
20656-T6000 |
US $13.68 |
||
|
20656
|
20656
20656-T6000 Clamp-Muffler, Lower9708--01 ~ 9906--01; 3(2WD.LB.LF+2WD.LB.LFW+2WD.LB.A).QD32.MT.F5 +QD32.AT |
20656-T6000 |
US $13.68 |
||
|
20675
|
20675
20675-03T00 Clamp-Exhaust Tube9708--01 ~ 9906--01; 3(2WD.LB.LF+2WD.LB.LFW+2WD.LB.A).QD32.MT.F5 +QD32.AT |
20675-03T00 |
US $15.41 |
||
|
20675
|
20675
20675-03T00 Clamp-Exhaust Tube0208--01 ~ 0308--01; b*2WD.HST.15T.QD32.MT.F5 +*SB.QD32 +*LB.SWT.15T.QD32.MT.F5 +*L.QD32 +*SWT.125T.QD32.MT.F5 +*QD32.AT |
20675-03T00 |
US $15.41 |
||
|
20691
|
20691
2069177A00 Gasket-Exhaust9708--01 ~ 9906--01; 3(2WD.LB.LF+2WD.LB.LFW+2WD.LB.A).QD32.MT.F5 +QD32.AT |
2069177A00 |
from US $2.79 |
||
|
20691
|
20691
2069151E01 GASKET-EXHAUST9708--01 ~ 9906--01; 3(2WD.LB.LF+2WD.LB.LFW+2WD.LB.A).QD32.MT.F5 +QD32.AT |
2069151E01 |
from US $6.16 |
||
|
20691
|
20691
2069177A00 Gasket-Exhaust9708--01 ~ 9906--01; 3(2WD.LB.LF+2WD.LB.LFW+2WD.LB.A).QD32.MT.F5 +QD32.AT |
2069177A00 |
from US $2.79 |
||
|
20691
|
20691
2069151E01 GASKET-EXHAUST9708--01 ~ 9906--01; 3(2WD.LB.LF+2WD.LB.LFW+2WD.LB.A).QD32.MT.F5 +QD32.AT |
2069151E01 |
from US $6.16 |
||
|
20691+A
|
20691+A
2069151E01 GASKET-EXHAUST9708--01 ~ 9906--01; 3(2WD.LB.LF+2WD.LB.LFW+2WD.LB.A).QD32.MT.F5 +QD32.AT |
2069151E01 |
from US $6.16 |
||
|
20691+A
|
20691+A
2069151E01 GASKET-EXHAUST9708--01 ~ 9906--01; 3(2WD.LB.LF+2WD.LB.LFW+2WD.LB.A).QD32.MT.F5 +QD32.AT |
2069151E01 |
from US $6.16 |
||
|
20691+A
|
20691+A
2069151E01 GASKET-EXHAUST9708--01 ~ 9906--01; 3(2WD.LB.LF+2WD.LB.LFW+2WD.LB.A).QD32.MT.F5 +QD32.AT |
2069151E01 |
from US $6.16 |
||
|
20710
|
20710
20710-6T400 Mounting Assy-Exhaust, Rubber9708--01 ~ 9906--01; QD32.AT |
20710-6T400 |
US $11.23 |
||
|
20710
|
20710
20710-7T600 Mounting Assy-Exhaust, Rubber0308--01 ~ ; ¥2WD.HST.15T.QD32.MT.F5 +SB.QD32 +LB.SWT.15T.QD32.MT.F5 +L.QD32 +SWT.125T.QD32.MT.F5 +QD32.AT |
20710-7T600 |
US $32.54 |
||
|
20711P
|
20711P
20711-6T400 Bracket-Exhaust Tube Mounting9708--01 ~ 9906--01; QD32.AT |
20711-6T400 |
US $32.54 |
||
|
20711P
|
20711P
20711-DA210 Bracket-Exhaust Tube Mounting0308--01 ~ ; QD32.AT |
20711-DA210 |
US $29.66 |
||
|
20711P
|
20711P
20711-7T100 Bracket-Exhaust Tube Mounting0308--01 ~ ; ¥2WD.HST.15T.QD32.MT.F5 +SB.QD32 +LB.SWT.15T.QD32.MT.F5 +L.QD32 +SWT.125T.QD32.MT.F5 +QD32.AT |
20711-7T100 |
US $32.54 |
||
