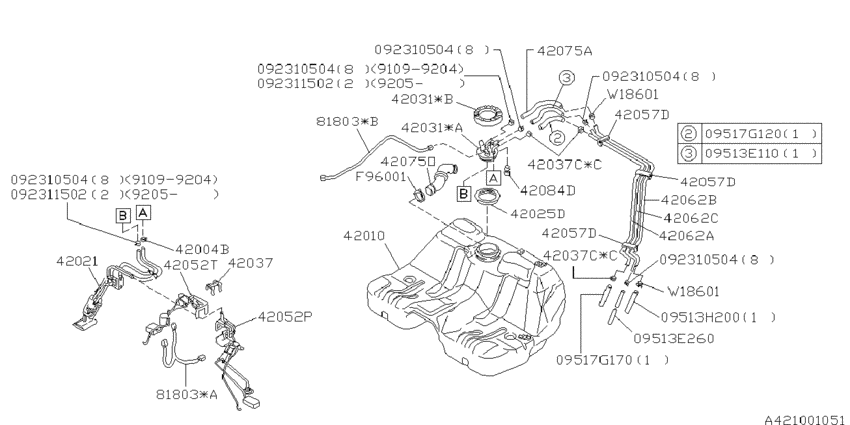

Fuel tank (FUEL TANK; EG33D; 1993-09-01~) Diagram Subaru SVX
- Year
- 1992 - 2011
- Sales region
- Europe
- Engine
- EG33D
- drive
- F4WD
- transmission
- AT
- body
- 2C
- Destinat
- RH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42004B
|
42004B
42038AA200 CLIP FUEL HOSE1996-10-01 ~ 1996-12-01; EG33D |
42038AA200 |
US $1.56 |
||
|
42010
|
42010
42120PA000
FUEL TANK COMPL
1996-10-01 ~ 1996-12-01; EG33D |
42120PA000 |
— | ||
|
42021
|
42021
42021PA000 Fuel pump assy1996-10-01 ~ 1996-12-01; EG33D |
42021PA000 |
US $764.64 |
||
|
42025D
|
42025D
42181PA000
PACKING TANK
1996-10-01 ~ 1996-12-01; EG33D |
42181PA000 |
— | ||
|
42031
|
42031
42150PA000 CAP PLATE COMPL1996-10-01 ~ 1996-12-01; EG33D; NO.1 |
42150PA000 |
US $125.74 |
||
|
42031
|
42031
42150PA010 CAP TANK1996-10-01 ~ 1996-12-01; EG33D; NO.2 |
42150PA010 |
US $36.96 |
||
|
42031
|
42031
42150PA000 CAP PLATE COMPL1996-10-01 ~ 1996-12-01; EG33D; NO.1 |
42150PA000 |
US $125.74 |
||
|
42031
|
42031
42150PA010 CAP TANK1996-10-01 ~ 1996-12-01; EG33D; NO.2 |
42150PA010 |
US $36.96 |
||
|
42037
|
42037
42134PA160
CLAMP BRKT PUMP
1996-10-01 ~ 1996-12-01; EG33D |
42134PA160 |
— | ||
|
42037C
|
42037C
42038AA280 HOSE CLAMP1996-10-01 ~ 1996-12-01; EG33D; NO.1 |
42038AA280 |
US $2.41 |
||
|
42037C
|
42037C
42038KA030 CLAMP HOSE1996-10-01 ~ 1996-12-01; EG33D; NO.3 |
42038KA030 |
US $6.51 |
||
|
42037C
|
42037C
742038300 CLAMP HOSE1996-10-01 ~ 1996-12-01; EG33D; NO.2 |
742038300 |
from US $2.33 |
||
|
42037C
|
42037C
42038AA280 HOSE CLAMP1996-10-01 ~ 1996-12-01; EG33D; NO.1 |
42038AA280 |
US $2.41 |
||
|
42037C
|
42037C
42038KA030 CLAMP HOSE1996-10-01 ~ 1996-12-01; EG33D; NO.3 |
42038KA030 |
US $6.51 |
||
|
42037C
|
42037C
742038300 CLAMP HOSE1996-10-01 ~ 1996-12-01; EG33D; NO.2 |
742038300 |
from US $2.33 |
||
|
42052P
|
42052P
42134PA020
Bracket-sub assy
1996-10-01 ~ 1996-12-01; EG33D |
42134PA020 |
— | ||
|
42052T
|
42052T
42134PA220
Bracket-Main unit assy
1996-10-01 ~ 1996-12-01; EG33D |
42134PA220 |
— | ||
|
42057D
|
42057D
42128PA010 PLATE CLAMP1996-10-01 ~ 1996-12-01; EG33D |
42128PA010 |
US $1.84 |
||
|
42057D
|
42057D
42128PA010 PLATE CLAMP1996-10-01 ~ 1996-12-01; EG33D |
42128PA010 |
US $1.84 |
||
|
42057D
|
42057D
42128PA010 PLATE CLAMP1996-10-01 ~ 1996-12-01; EG33D |
42128PA010 |
US $1.84 |
||
|
42062A
|
42062A
42124PA000 PIPE DELIVE TANK1996-10-01 ~ 1996-12-01; EG33D |
42124PA000 |
US $17.70 |
||
|
42062B
|
42062B
42125PA000 PIPE RETURN TANK1996-10-01 ~ 1996-12-01; EG33D |
42125PA000 |
US $17.70 |
||
|
42062C
|
42062C
42123PA000 PIPE EVAPO TANK1996-10-01 ~ 1996-12-01; EG33D |
42123PA000 |
US $17.70 |
||
|
42075A
|
42075A
42162PA100 HOSE RTN1996-10-01 ~ 1996-12-01; EG33D |
42162PA100 |
US $5.66 |
||
|
42075A
|
42075A
42162PA110 HOSE RETURNCAP1996-10-01 ~ 1996-12-01; EG33D |
42162PA110 |
US $6.66 |
||
|
42075O
|
42075O
42162PA040 HOSE FILLER1996-10-01 ~ 1996-12-01; EG33D |
42162PA040 |
US $39.22 |
||
|
42084D
|
42084D
42084PA010 FUEL CUT OFF VALVE1996-10-01 ~ 1996-12-01; EG33D |
42084PA010 |
US $36.96 |
||
|
81803
|
81803
81802PA000
CORD FUEL A
1996-10-01 ~ 1996-12-01; EG33D; NO.1 |
81802PA000 |
— | ||
|
81803
|
81803
81802PA100
CORD FUEL
1996-10-01 ~ 1996-12-01; EG33D; NO.2 |
81802PA100 |
— | ||
|
81803
|
81803
81802PA000
CORD FUEL A
1996-10-01 ~ 1996-12-01; EG33D; NO.1 |
81802PA000 |
— | ||
|
81803
|
81803
81802PA100
CORD FUEL
1996-10-01 ~ 1996-12-01; EG33D; NO.2 |
81802PA100 |
— | ||
|
F96001
|
F96001
805960010 HOSE CLAMP601996-10-01 ~ 1996-12-01; EG33D |
805960010 |
US $14.73 |
||
|
W18601
|
W18601
909186010 CLAMP HOSE1996-10-01 ~ 1996-12-01; EG33D |
909186010 |
US $1.98 |
||
|
W18601
|
W18601
909186010 CLAMP HOSE1996-10-01 ~ 1996-12-01; EG33D |
909186010 |
US $1.98 |
||
|
092310504
|
092310504
092310504
CLIP 11
|
092310504 |
— | ||
|
092310504
|
092310504
092310504
CLIP 11
|
092310504 |
— | ||
|
092310504
|
092310504
092310504
CLIP 11
|
092310504 |
— | ||
|
092310504
|
092310504
092310504
CLIP 11
|
092310504 |
— | ||
|
092310504
|
092310504
092310504
CLIP 11
|
092310504 |
— | ||
|
092311502
|
092311502
092311502 CLIP 12 |
092311502 |
US $1.27 |
||
|
092311502
|
092311502
092311502 CLIP 12 |
092311502 |
US $1.27 |
||
|
09513E110
|
09513E110
09513E110 HOSE EVAPO |
09513E110 |
US $2.97 |
||
|
09513E260
|
09513E260
09513E260 HOSE EVAPO |
09513E260 |
US $7.22 |
||
|
09513H200
|
09513H200
09513H200 HOSE RETPCTR |
09513H200 |
US $9.35 |
||
|
09517G120
|
09517G120
09517G120 HOSE DELIVERY |
09517G120 |
US $33.70 |
||
|
09517G170
|
09517G170
09517G170 HOSE DELIVERY CTR |
09517G170 |
US $44.04 |
