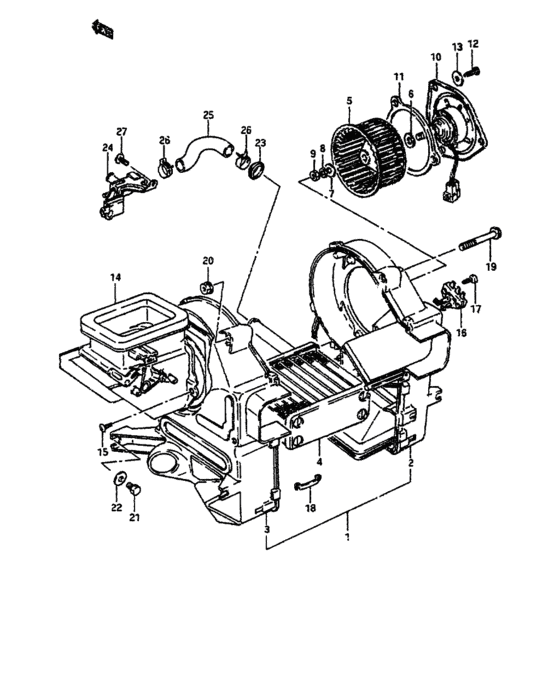

Car heater (CAR HEATER) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
88100-78000-000
Heater assy
|
88100-78000-000 |
— | ||
|
2
|
2
88111-78000-000
Case, heater rh
|
88111-78000-000 |
— | ||
|
3
|
3
88112-78000-000
Case, heater lh
|
88112-78000-000 |
— | ||
|
4
|
4
88120-78001-000
Unit,heater
|
88120-78001-000 |
— | ||
|
5
|
5
88140-78000-000 BLOWER ASSY |
88140-78000-000 |
US $20.61 |
||
|
6
|
6
88193-79000-000
Washer
|
88193-79000-000 |
— | ||
| replacement | |||||
|
6
|
6
17112-82000-000 WASHER,FAN |
17112-82000-000 |
US $0.85 |
||
|
7
|
7
88194-79000-000
Washer
|
88194-79000-000 |
— | ||
| replacements | |||||
|
7
|
7
09160-05037-000 WASHER(5.5X16X1.2) |
09160-05037-000 |
from US $0.91 |
||
|
7
|
7
09160-05016-000
Washer, center
|
09160-05016-000 |
— | ||
|
8
|
8
88195-79000-000
Washer
|
88195-79000-000 |
— | ||
|
9
|
9
08310-11058-000
Nut
|
08310-11058-000 |
— | ||
| replacement | |||||
|
9
|
9
08310-00057-000 NUT |
08310-00057-000 |
from US $0.76 |
||
|
10
|
10
88150-78001-000
Motor assy
|
88150-78001-000 |
— | ||
|
11
|
11
88153-79000-000 PACKING,MOTOR |
88153-79000-000 |
US $1.52 |
||
|
12
|
12
03212-05169-000
Screw
|
03212-05169-000 |
— | ||
| replacements | |||||
|
12
|
12
03212-0516B-000
SCREW
|
03212-0516B-000 |
— | ||
|
12
|
12
13765-48GV0-000 Screw |
13765-48GV0-000 |
from US $3.55 |
||
|
13
|
13
09160-05006-000
Speedometer was
|
09160-05006-000 |
— | ||
| replacement | |||||
|
13
|
13
09160-05006-XC0 WASHER(5.5X18X1.6) |
09160-05006-XC0 |
from US $3.57 |
||
|
14
|
14
88170-78000-000
Case sub assy, air bumper
|
88170-78000-000 |
— | ||
|
15
|
15
03211-05108-000
Screw
|
03211-05108-000 |
— | ||
| replacement | |||||
|
15
|
15
03211-0510C-000 SCREW |
03211-0510C-000 |
US $12.50 |
||
|
16
|
16
88190-78000-000
Resister
|
88190-78000-000 |
— | ||
|
17
|
17
03211-04128-000
Screw
|
03211-04128-000 |
— | ||
| replacement | |||||
|
17
|
17
03142-0412B-000 SCREW |
03142-0412B-000 |
from US $0.80 |
||
|
18
|
18
88119-79000-000
Spring, case
|
88119-79000-000 |
— | ||
| replacement | |||||
|
18
|
18
74133-82000-000 CLAMP,CASE |
74133-82000-000 |
US $2.91 |
||
|
19
|
19
01517-06808-000
Bolt
|
01517-06808-000 |
— | ||
| replacement | |||||
|
19
|
19
01550-06807-000 Bolt |
01550-06807-000 |
US $1.07 |
||
|
20
|
20
08316-16066-000
Nut
|
08316-16066-000 |
— | ||
| replacement | |||||
|
20
|
20
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
21
|
21
01107-06208-000
Bolt
|
01107-06208-000 |
— | ||
| replacement | |||||
|
21
|
21
01500-06207-000 BOLT |
01500-06207-000 |
from US $0.76 |
||
|
22
|
22
09160-06012-000 WASHER(6.5X22X1.6) |
09160-06012-000 |
US $2.28 |
||
| replacement | |||||
|
22
|
22
09160-06054-000 WASHER(6.5X22X1.6)Washer (6.5x22x1.6) |
09160-06054-000 |
from US $1.22 |
||
|
23
|
23
09308-13004-000
Grommet
|
09308-13004-000 |
— | ||
|
24
|
24
88200-78000-000
Valve assy, water
|
88200-78000-000 |
— | ||
| replacements | |||||
|
24
|
24
74710-80060-000
Valve, water
|
74710-80060-000 |
— | ||
|
24
|
24
74710-80001-000
VALVE ASSY,WATER
|
74710-80001-000 |
— | ||
|
25
|
25
88711-78002-000
HOSE,WATER VALVE
|
88711-78002-000 |
— | ||
|
26
|
26
09401-20402-000
Clip, air hose no.3
|
09401-20402-000 |
— | ||
| replacement | |||||
|
26
|
26
09401-20406-000 CLIP |
09401-20406-000 |
US $1.98 |
||
|
27
|
27
02142-06106-000
Screw
|
02142-06106-000 |
— | ||
| replacements | |||||
|
27
|
27
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
27
|
27
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
