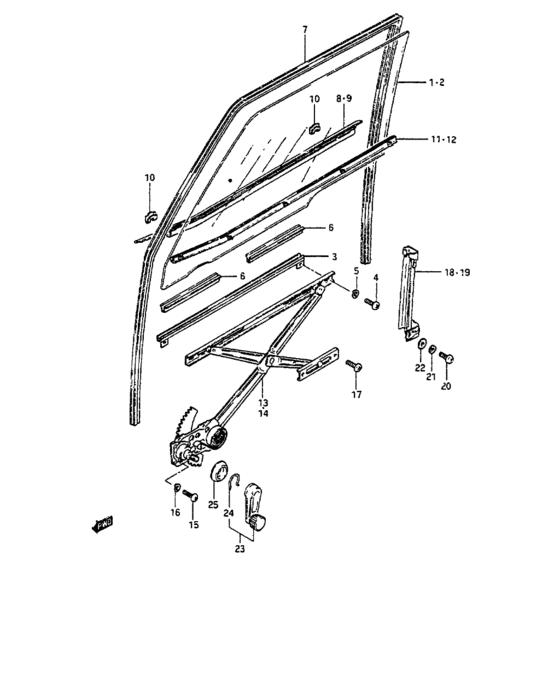

Front door glass (FRONT DOOR GLASS) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84531-81020-000
Glass, window rh
|
84531-81020-000 |
— | ||
| replacement | |||||
|
1
|
1
84531-810V1-000
Glass,front door window,r
|
84531-810V1-000 |
— | ||
|
2
|
2
84536-81020-000
Glass, window lh
|
84536-81020-000 |
— | ||
| replacement | |||||
|
2
|
2
84536-810V1-000
Glass,front door window,l
|
84536-810V1-000 |
— | ||
|
3
|
3
78710-78000-000 CHANNEL,DR GLASS BOTTOM |
78710-78000-000 |
US $15.12 |
||
|
4
|
4
02112-06086-000
New Genuine Part
|
02112-06086-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-0608A-000 SCREW |
02112-0608A-000 |
from US $0.76 |
||
|
5
|
5
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
5
|
5
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
6
|
6
78811-78400-000
ラバー,チャンネル
|
78811-78400-000 |
— | ||
| replacement | |||||
|
6
|
6
78812-78400-000 RUBBER,CHANNEL |
78812-78400-000 |
US $2.56 |
||
|
7
|
7
83661-81010-000
RUN,DOOR GLASS
|
83661-81010-000 |
— | ||
|
8
|
8
83811-81020-000
Scrape, door outside rh
|
83811-81020-000 |
— | ||
| replacement | |||||
|
8
|
8
83811-810V1-000
WEATHERSTRIP,FR DR OUT,R
|
83811-810V1-000 |
— | ||
|
9
|
9
83821-81020-000
Scrape, door outside lh
|
83821-81020-000 |
— | ||
| replacement | |||||
|
9
|
9
83821-810V1-000
WEATHERSTRIP,FR DR OUT,L
|
83821-810V1-000 |
— | ||
|
10
|
10
78991-78000-000
クリップ,スカルプ
|
78991-78000-000 |
— | ||
| replacement | |||||
|
10
|
10
78991-78001-000 CLIP,DR OUT WEATHERSTRIP |
78991-78001-000 |
from US $1.52 |
||
|
11
|
11
83850-81010-000
Scrape, inside rh
|
83850-81010-000 |
— | ||
|
12
|
12
83860-81010-000
SCALP,DOOR INSIDE,L
|
83860-81010-000 |
— | ||
|
13
|
13
78501-78001-000 REGULATOR,DOOR WINDOW,R |
78501-78001-000 |
US $135.20 |
||
|
14
|
14
78502-78001-000 REGULATOR ASSY,DOOR WINDOW,L |
78502-78001-000 |
US $135.20 |
||
|
15
|
15
02112-06088-000
Screw
|
02112-06088-000 |
— | ||
| replacement | |||||
|
15
|
15
02112-06087-000 SCREW |
02112-06087-000 |
from US $0.77 |
||
|
16
|
16
08321-21067-000
Lock washer
|
08321-21067-000 |
— | ||
| replacement | |||||
|
16
|
16
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
17
|
17
02142-06108-000
6 x 10 screw
|
02142-06108-000 |
— | ||
| replacement | |||||
|
17
|
17
02142-06107-000 SCREW |
02142-06107-000 |
from US $0.80 |
||
|
18
|
18
81730-81000-000
Sash, front door rear rh
|
81730-81000-000 |
— | ||
|
19
|
19
81740-81000-000
Sash, front door rear lh
|
81740-81000-000 |
— | ||
|
20
|
20
02112-06128-000
Screw
|
02112-06128-000 |
— | ||
| replacement | |||||
|
20
|
20
02112-06127-000 SCREW |
02112-06127-000 |
from US $0.76 |
||
|
21
|
21
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
21
|
21
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
22
|
22
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
22
|
22
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
23
|
23
78460-78002-281
ハンドル,レギュレータ(ブラック)
|
78460-78002-281 |
— | ||
| replacement | |||||
|
23
|
23
78460-78003-281 HANDLE,DR WINDOW RGLTR |
78460-78003-281 |
US $26.60 |
||
|
24
|
24
78463-78000-000 SNAP |
78463-78000-000 |
US $1.60 |
||
|
25
|
25
78472-78000-281
エスカッション,レギュレータハンドル(ブラック)
|
78472-78000-281 |
— | ||
| replacement | |||||
|
25
|
25
78472-78001-281 ESCUTCHEON,DR WDO RGLTR HDL |
78472-78001-281 |
US $2.08 |
||
