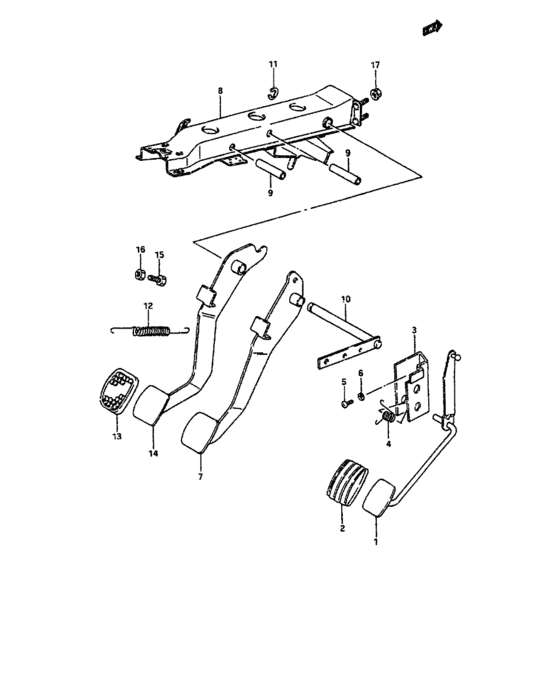

Pedal and pedal bracket (MT) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49410-78101-000
Pedal, accelerator
|
49410-78101-000 |
— | ||
|
2
|
2
49451-73000-000 PAD,ACCELERATOR PEDAL |
49451-73000-000 |
from US $2.36 |
||
|
3
|
3
49511-78140-000
Bracket, accelerator pedal
|
49511-78140-000 |
— | ||
|
4
|
4
09448-21002-000
Spring
|
09448-21002-000 |
— | ||
|
5
|
5
02112-06126-000
Screw 6x12
|
02112-06126-000 |
— | ||
| replacements | |||||
|
5
|
5
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
5
|
5
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
6
|
6
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
6
|
6
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
7
|
7
49610-78000-000
Pedal, brake
|
49610-78000-000 |
— | ||
|
8
|
8
49710-81000-000
Bracket, pedal
|
49710-81000-000 |
— | ||
|
9
|
9
09180-10068-000
Spacer
|
09180-10068-000 |
— | ||
|
10
|
10
49720-78001-000
Shaft, pedal
|
49720-78001-000 |
— | ||
|
11
|
11
08332-11106-000
E ring
|
08332-11106-000 |
— | ||
| replacement | |||||
|
11
|
11
08332-1110A-000 E RING |
08332-1110A-000 |
from US $0.96 |
||
|
12
|
12
09443-12006-000
Spring
|
09443-12006-000 |
— | ||
|
13
|
13
49731-79001-000
Pad, pedal
|
49731-79001-000 |
— | ||
|
14
|
14
49810-78000-000
Pedal, clutch
|
49810-78000-000 |
— | ||
|
15
|
15
01107-06206-000
Bolt, front
|
01107-06206-000 |
— | ||
| replacement | |||||
|
15
|
15
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
|
16
|
16
08310-22066-000
Nut 6mm
|
08310-22066-000 |
— | ||
| replacement | |||||
|
16
|
16
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
17
|
17
08316-26086-000
Nut
|
08316-26086-000 |
— | ||
| replacements | |||||
|
17
|
17
08316-2008A-000 NUT |
08316-2008A-000 |
from US $0.80 |
||
|
17
|
17
08316-20087-000 NUT |
08316-20087-000 |
from US $3.77 |
||
