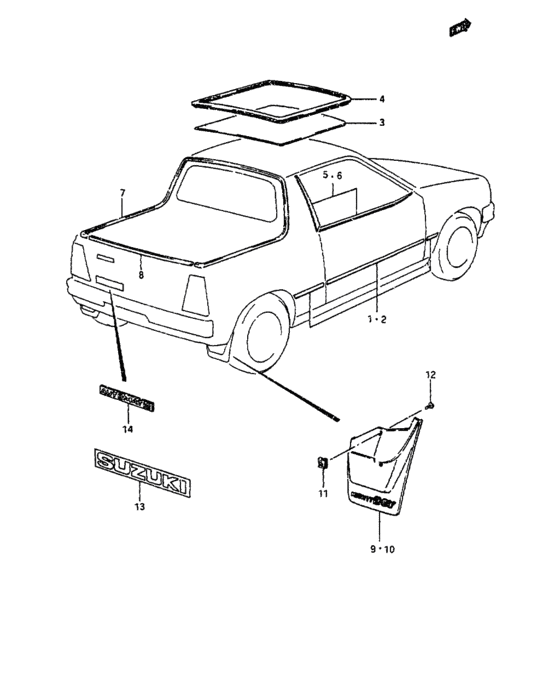

Stripe tape and mud flap (STRIPE TAPE AND MUD FLAP) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77610-81000-291
Tape assy, side rh
|
77610-81000-291 |
— | ||
| replacement | |||||
|
1
|
1
77612-81000-291
Stripe tape side center(black)
|
77612-81000-291 |
— | ||
|
1
|
1
77610-81000-168
Tape assy, side lh
|
77610-81000-168 |
— | ||
|
2
|
2
77620-81000-291
Tape assy, side rh
|
77620-81000-291 |
— | ||
| replacement | |||||
|
2
|
2
77612-81000-291
Stripe tape side center(black)
|
77612-81000-291 |
— | ||
|
2
|
2
77620-81000-16B
Tape assy, side lh
|
77620-81000-16B |
— | ||
|
3
|
3
78111-81100-893
Head lining, roof
|
78111-81100-893 |
— | ||
| replacement | |||||
|
3
|
3
78111-81000-893
HEADLINING,ROOF
|
78111-81000-893 |
— | ||
|
4
|
4
78121-81100-896
TRIM,ROOF SIDE
|
78121-81100-896 |
— | ||
|
5
|
5
77650-81110-60K
Stripe tape, side window rh
PURE WHITE/BLACK |
77650-81110-60K |
— | ||
|
5
|
5
77650-81110-7SC
Stripe tape, side window rh
PURE WHITE/SHARK SILVER |
77650-81110-7SC |
— | ||
|
6
|
6
77660-81110-60K
Stripe tape, side window lh
PURE WHITE/BLACK |
77660-81110-60K |
— | ||
|
6
|
6
77660-81110-7SC
Stripe tape, side window lh
PURE WHITE/SHARK SILVER |
77660-81110-7SC |
— | ||
|
7
|
7
78650-81100-000
MOLDING,DECK SIDE
|
78650-81100-000 |
— | ||
|
8
|
8
78660-81100-000
Molding comp,deck gate
|
78660-81100-000 |
— | ||
|
9
|
9
72210-81110-000
Flap, rear mud rh
|
72210-81110-000 |
— | ||
|
10
|
10
72220-81110-000
Flap, rear mud lh
|
72220-81110-000 |
— | ||
|
11
|
11
09148-05003-000 NUT |
09148-05003-000 |
US $1.28 |
||
|
12
|
12
03141-05163-000
Screw
|
03141-05163-000 |
— | ||
| replacement | |||||
|
12
|
12
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
13
|
13
77813-80010-23D
Emblem, suzuki
|
77813-80010-23D |
— | ||
| replacement | |||||
|
13
|
13
77813-80010-019 EMBLEM,TAIL |
77813-80010-019 |
US $63.84 |
||
|
13
|
13
77813-80010-23E
Emblem, suzuki
|
77813-80010-23E |
— | ||
| replacement | |||||
|
13
|
13
77813-80010-019 EMBLEM,TAIL |
77813-80010-019 |
US $63.84 |
||
