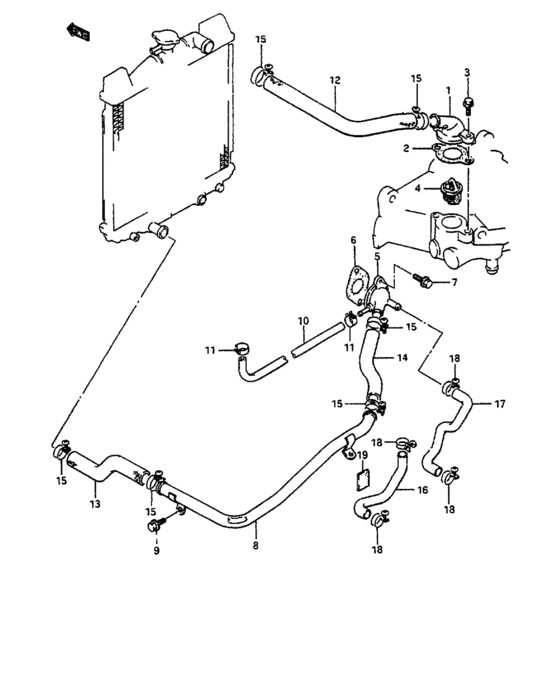

Water hose (WATER HOSE) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17561-78100-000 CAP,WATER THERMOSTAT |
17561-78100-000 |
US $21.34 |
||
|
2
|
2
17569-78101-000
Gasket, water thermostat cap
|
17569-78101-000 |
— | ||
| replacement | |||||
|
2
|
2
17569-82001-H17 GASKET,WTR THERMO CAP |
17569-82001-H17 |
US $2.24 |
||
|
3
|
3
01517-08253-000
ボルト
|
01517-08253-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
3
|
3
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
4
|
4
17670-82000-000
Thermostat, water
|
17670-82000-000 |
— | ||
| replacement | |||||
|
4
|
4
17600-85811-000 THERMOSTAT SET,WATER 82 DEG |
17600-85811-000 |
from US $19.53 |
||
|
5
|
5
17551-78101-000
キャップ,ウォータインレット
|
17551-78101-000 |
— | ||
| replacement | |||||
|
5
|
5
17550-781V0-000 CASE,THERMOSTATSTAT |
17550-781V0-000 |
US $60.80 |
||
|
6
|
6
17559-73000-000
ガスケット,ウォータインレット
|
17559-73000-000 |
— | ||
| replacement | |||||
|
6
|
6
17559-73010-000 GASKET,WATER INLET PIPE |
17559-73010-000 |
from US $1.52 |
||
|
7
|
7
01517-06203-000
Bolt
|
01517-06203-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
7
|
7
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
8
|
8
17840-78100-000
Pipe,radiator outlet
MT |
17840-78100-000 |
— | ||
|
9
|
9
01537-06103-000
Bolt
|
01537-06103-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
9
|
9
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
10
|
10
09343-07011-000 HoseL:1130->180 |
09343-07011-000 |
from US $20.53 |
||
| replacement | |||||
|
10
|
10
09352-70121-00B HOSE(7X12.1X2000)Hose, silencer L:1130->180 |
09352-70121-00B |
from US $21.60 |
||
|
11
|
11
09401-11404-000
クリップ
|
09401-11404-000 |
— | ||
| replacements | |||||
|
11
|
11
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
|
11
|
11
09401-11407-000
CLIP
|
09401-11407-000 |
— | ||
|
12
|
12
17852-78120-000 HOSE,RADIATOR INLET |
17852-78120-000 |
US $36.80 |
||
|
13
|
13
17854-78101-000
Hose, radiator dutlet
MT |
17854-78101-000 |
— | ||
| replacement | |||||
|
13
|
13
17854-78121-000 HOSE,RADIATOR OUTLETMT |
17854-78121-000 |
US $27.36 |
||
|
14
|
14
17855-78100-000
Hose, water inlet
MT |
17855-78100-000 |
— | ||
| replacement | |||||
|
14
|
14
17856-50F10-000 HOSE,RADIATORMT |
17856-50F10-000 |
US $11.25 |
||
|
15
|
15
09400-34311-000 CLAMPCollier |
09400-34311-000 |
from US $1.92 |
||
|
16
|
16
17871-78101-000
HOSE,HEATER INLET
|
17871-78101-000 |
— | ||
|
17
|
17
17872-78102-000
HOSE,HEATER OUTLET
|
17872-78102-000 |
— | ||
|
18
|
18
09400-22312-000 CLAMP |
09400-22312-000 |
from US $1.82 |
||
|
19
|
19
17821-72100-000
Protector, heater hose
|
17821-72100-000 |
— | ||
