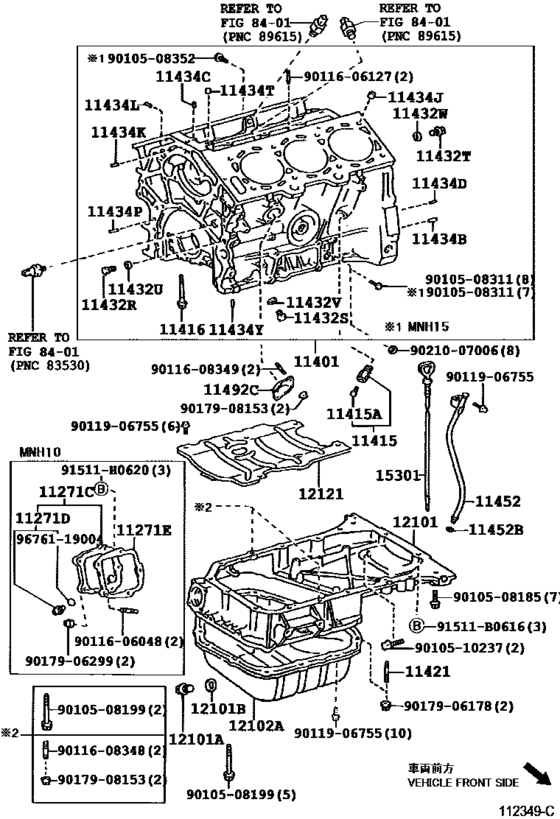

Cylinder Block ([05.2002 - ] (0205- )1MZFE) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2005 - 2008
- Sales region
- Japan
- Frame
- MNH15
- grade
- MZ
- ENGINE
- 1MZFE
- Model
- Alphard I
- From
- 04.2005
- To
- 04.2008
- Gear Shift Type
- 5FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard G/V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-29566 Block Sub-Assy, Cylinder[04.2005 -] 1MZFE..MNH15 |
11401-29566 |
US $3,276 |
||
|
11415
|
11415
90910-09095 Cock Sub-Assy, Water Drain(For Cylinder Block)[04.2005 -] 1MZFE..MNH15 |
90910-09095 |
from US $9.07 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[04.2005 -] 1MZFE..MNH15 |
90910-09087 |
from US $3.02 |
||
|
11416
|
11416
90910-02114 Bolt(For Crankshaft Bearing Cap Set)[04.2005 -] 1MZFE..MNH1# |
90910-02114 |
US $4.84 |
||
|
11421
|
11421
90116-06098 Bolt, Stud(For Oil Pan)[04.2005 -] 1MZFE..MNH1# |
90116-06098 |
US $2.51 |
||
|
11432R
|
11432R
90341-16013 Plug, W/head Straight Screw, No.1(For Cylinder Block)[04.2005 -] 1MZFE..MNH1# |
90341-16013 |
US $2.97 |
||
|
11432S
|
11432S
90341-16013 Plug, W/head Straight Screw, No.1(For Cylinder Block)[04.2005 -] 1MZFE..MNH1# |
90341-16013 |
US $2.97 |
||
|
11432T
|
11432T
90341-20013 Plug, W/head Straight Screw, No.3(For Cylinder Block)[04.2005 -] 1MZFE..MNH1# |
90341-20013 |
from US $4.89 |
||
|
11432U
|
11432U
90430-16009 Gasket, Straight Screw Plug No.1(For Cylinder Block)[04.2005 -] 1MZFE..MNH1# |
90430-16009 |
US $1.43 |
||
|
11432V
|
11432V
90430-16009 Gasket, Straight Screw Plug No.1(For Cylinder Block)[04.2005 - 04.2008] 1MZFE..MNH1# |
90430-16009 |
US $1.43 |
||
|
11432W
|
11432W
90430-20004 Gasket(For Cylinder Head Screw Plug)[04.2005 - 04.2008] 1MZFE..MNH1# |
90430-20004 |
from US $0.98 |
||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[04.2005 -] 2AZFE..ANH1# 長さ＝２２，外径＝１０; 1MZFE..MNH1# 長さ＝２２，外径＝１０ |
90250-10113 |
from US $1.17 |
||
|
11434C
|
11434C
90250-04097 Pin, Straight(For Camshaft Housing Rh)[04.2005 -] 1MZFE..MNH1# 長さ＝１２，外径＝４．０ |
90250-04097 |
US $0.90 |
||
|
11434D
|
11434D
90250-04097 Pin, Straight(For Camshaft Housing Rh)[04.2005 -] 1MZFE..MNH1# 長さ＝１２，外径＝４．０ |
90250-04097 |
US $0.90 |
||
|
11434J
|
11434J
90253-16001 Pin, Straight (For Cylinder Head Set)[04.2005 -] 1MZFE..MNH1# |
90253-16001 |
US $5.20 |
||
|
11434K
|
11434K
90250-04097 Pin, Straight(For Camshaft Housing Rh)[04.2005 -] 1MZFE..MNH1# |
90250-04097 |
US $0.90 |
||
|
11434L
|
11434L
90250-04097 Pin, Straight(For Camshaft Housing Rh)[04.2005 -] 1MZFE..MNH1# |
90250-04097 |
US $0.90 |
||
|
11434P
|
11434P
90250-04097 Pin, Straight(For Camshaft Housing Rh)[04.2005 -] 1MZFE..MNH1# 長さ＝１２，外径＝４．０ |
90250-04097 |
US $0.90 |
||
|
11434T
|
11434T
90253-11021 Pin, Ring[04.2005 -] 1MZFE..MNH1# |
90253-11021 |
from US $1.44 |
||
|
11434Y
|
11434Y
90250-04097 Pin, Straight(For Camshaft Housing Rh)[04.2005 -] 1MZFE..MNH1# |
90250-04097 |
US $0.90 |
||
|
11452
|
11452
11452-20020 Guide, Oil Level Gage[04.2005 -] 1MZFE..MNH1# |
11452-20020 |
US $22.28 |
||
|
11452B
|
11452B
96721-19010 Ring, O(For Oil Level Gage Guide)[04.2005 - 04.2008] 2AZFE..ANH1#; 1MZFE..MNH1# |
96721-19010 |
from US $1.60 |
||
|
11492C
|
11492C
11492-20010 Plate, Water Seal[04.2005 -] 1MZFE..MNH1# |
11492-20010 |
from US $6.81 |
||
|
12101
|
12101
12111-20032 Pan Sub-Assy, Oil[04.2005 -] 1MZFE..MNH1# |
12111-20032 |
US $698.88 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[04.2005 -] 2AZFE..ANH1#; 1MZFE..MNH1# |
90341-12012 |
from US $2.87 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[04.2005 -] 2AZFE..ANH1#; 1MZFE..MNH1# |
90341-T0004 |
US $3.59 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[04.2005 - 04.2008] 2AZFE..ANH1#; 1MZFE..MNH1# |
90430-12031 |
from US $0.84 |
||
|
12102A
|
12102A
12102-20010 Pan Sub-Assy, Oil, No.2[04.2005 -] 1MZFE..MNH1# |
12102-20010 |
from US $157.76 |
||
|
12121
|
12121
12121-20021 Plate, Oil Pan Baffle, No.1[04.2005 -] 1MZFE..MNH1# |
12121-20021 |
US $39.75 |
||
|
15301
|
15301
15301-20021 Gage Sub-Assy, Oil Level[04.2005 -] 1MZFE..MNH1# |
15301-20021 |
from US $10.49 |
||
|
91511B0616
|
91511B0616
91511-B0616 BOLTFLANGE |
91511-B0616 |
from US $0.86 |
||
| replacement | |||||
|
91511B0616
|
91511B0616
90080-10164 New Genuine Part |
90080-10164 |
US $2.67 |
||
|
91511H0620
|
91511H0620
91511-H0620 Bolt (For Transaxle Case Upper Cover) |
91511-H0620 |
US $1.97 |
||
|
9010508185
|
9010508185
90105-08185 New Genuine Part |
90105-08185 |
US $1.51 |
||
|
9010508199
|
9010508199
90105-08199 New Genuine Part |
90105-08199 |
US $2.87 |
||
|
9010508311
|
9010508311
90105-08311 Bolt, Crankshaft Bearing Cap, No.2 |
90105-08311 |
US $1.05 |
||
|
9010508352
|
9010508352
90105-08352 New Genuine Part |
90105-08352 |
US $1.75 |
||
|
9010510237
|
9010510237
90105-10237 New Genuine Part |
90105-10237 |
US $1.46 |
||
|
9011606048
|
9011606048
90116-06048 Bolt, Stud(For Oil Pan) |
90116-06048 |
from US $0.66 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.94 |
||
|
9011608348
|
9011608348
90116-08348 Bolt, Stud(For Water Outlet) |
90116-08348 |
from US $1.65 |
||
|
9011608349
|
9011608349
90116-08349 New Genuine Part |
90116-08349 |
US $0.61 |
||
|
9011906755
|
9011906755
90119-06755 BOLT WWASHER |
90119-06755 |
US $1.25 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.78 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.66 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.78 |
||
|
9021007006
|
9021007006
90210-07006 WASHER SEAL |
90210-07006 |
from US $0.90 |
||
|
9676119004
|
9676119004
96761-19004 Ring, O(For Water Inlet Union Drain Cock Plug) |
96761-19004 |
US $3.05 |
||
