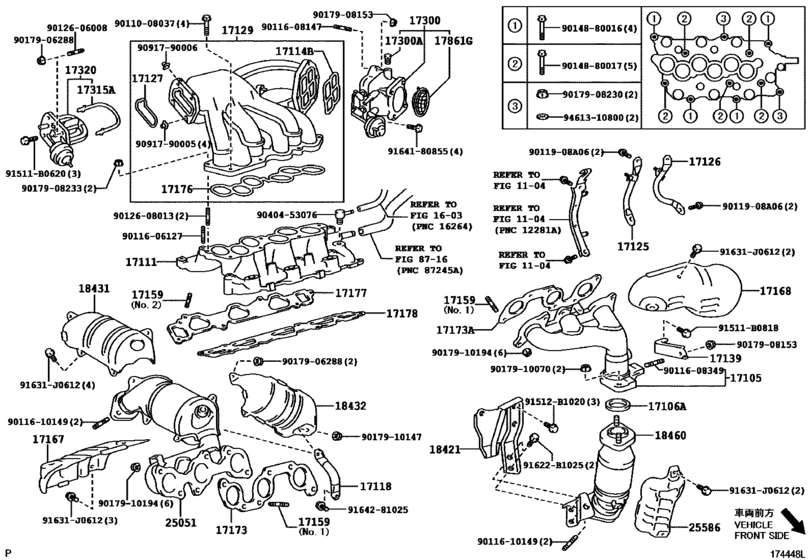

Manifold ([04.2005 - 06.2007] (0504-0706)1MZFE) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2005 - 2008
- Sales region
- Japan
- Frame
- MNH15
- grade
- MZ
- ENGINE
- 1MZFE
- Model
- Alphard I
- From
- 04.2005
- To
- 04.2008
- Gear Shift Type
- 5FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard G/V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17105
|
17105
17142-20041 Manifold Sub-Assy, Exhaust, Lh[04.2005 - 06.2007] 1MZFE..MNH1# |
17142-20041 |
US $292.66 |
||
|
17106A
|
17106A
90917-06075 Gasket, Exhaust Pipe[04.2005 - 06.2007] 1MZFE..MNH1# |
90917-06075 |
from US $9.07 |
||
|
17111
|
17111
17101-20050 Manifold, Intake[04.2005 - 04.2008] 1MZFE..MNH1# |
17101-20050 |
US $435.34 |
||
|
17114B
|
17114B
17116-20010 Gasket, Intake Flange[04.2005 - 04.2008] 1MZFE..MNH1# |
17116-20010 |
from US $5.79 |
||
|
17118
|
17118
17118-20050 Stay, Manifold[04.2005 - 06.2007] 1MZFE..MNH1# |
17118-20050 |
US $38.73 |
||
|
17118
|
17118
17118-20060 Stay, Manifold[06.2007 -] 1MZFE..MNH1# |
17118-20060 |
US $38.73 |
||
|
17125
|
17125
17125-20030 Stay, Surge Tank, No.1[04.2005 -] 1MZFE..MNH1# |
17125-20030 |
US $42.37 |
||
|
17126
|
17126
17126-20050 Stay, Surge Tank, No.2[04.2005 -] 1MZFE..MNH1# |
17126-20050 |
US $51.40 |
||
|
17127
|
17127
17127-20010 Gasket, Surge Tank Cover[04.2005 - 04.2008] 1MZFE..MNH1# |
17127-20010 |
from US $5.89 |
||
|
17129
|
17129
17109-20100 Tank, Intake Air Surge[04.2005 -] 1MZFE..MNH1# |
17109-20100 |
US $454.27 |
||
|
17139
|
17139
17139-20010 Stay, Manifold, No.2[04.2005 - 06.2007] 1MZFE..MNH1# |
17139-20010 |
US $16.89 |
||
|
17139
|
17139
17139-20060 Stay, Manifold, No.2[06.2007 -] 1MZFE..MNH1# |
17139-20060 |
US $25.19 |
||
|
17159
|
17159
90126-08013 Bolt, Stud(For Manifold To Cylinder Head)[04.2005 -] 1MZFE..MNH1# ＮＯ．２ |
90126-08013 |
US $3.79 |
||
|
17159
|
17159
90126-10030 Bolt, Stud(For Manifold To Cylinder Head)[04.2005 -] 1MZFE..MNH1# ＮＯ．１ |
90126-10030 |
US $4.12 |
||
|
17167
|
17167
17167-20030 Insulator, Exhaust Manifold Heat, No.1[04.2005 - 06.2007] 1MZFE..MNH1# |
17167-20030 |
US $32.18 |
||
|
17167
|
17167
17167-20100 Insulator, Exhaust Manifold Heat, No.1[06.2007 -] 1MZFE..MNH1# |
17167-20100 |
US $53 |
||
|
17168
|
17168
17168-20030
Insulator, Exhaust Manifold Heat, No.2
[04.2005 - 06.2007] 1MZFE..MNH1# |
17168-20030 |
— | ||
|
17168
|
17168
17168-20070 Insulator, Exhaust Manifold Heat, No.2[06.2007 -] 1MZFE..MNH1# |
17168-20070 |
US $45.72 |
||
|
17173
|
17173
17173-20020 Gasket, Exhaust Manifold To Head[04.2005 - 06.2007] 1MZFE..MNH1# |
17173-20020 |
from US $12.81 |
||
|
17173
|
17173
17173-20030 Gasket, Exhaust Manifold To Head[06.2007 - 04.2008] 1MZFE..MNH1# |
17173-20030 |
from US $12.60 |
||
|
17173A
|
17173A
17173-20020 Gasket, Exhaust Manifold To Head[04.2005 - 06.2007] 1MZFE..MNH1# |
17173-20020 |
from US $12.81 |
||
|
17173A
|
17173A
17173-20030 Gasket, Exhaust Manifold To Head[06.2007 - 04.2008] 1MZFE..MNH1# |
17173-20030 |
from US $12.60 |
||
|
17176
|
17176
17176-20010 Gasket, Air Surge Tank To Intake Manifold[04.2005 - 04.2008] 1MZFE..MNH1# |
17176-20010 |
from US $13.53 |
||
|
17177
|
17177
17177-20020 Gasket, Intake Manifold To Head, No.1[04.2005 - 04.2008] 1MZFE..MNH1# |
17177-20020 |
from US $25.76 |
||
|
17178
|
17178
17178-20020 Gasket, Intake Manifold To Head, No.2[04.2005 - 04.2008] 1MZFE..MNH1# |
17178-20020 |
from US $25.49 |
||
|
17300
|
17300
17300-20040 Valve Assy, Intake Air Control[04.2005 - 04.2008] 1MZFE..MNH1# |
17300-20040 |
US $562.02 |
||
|
17300A
|
17300A
90345-51006 Plug, W/head Taper Screw, No.2[04.2005 -] 1MZFE..MNH1# |
90345-51006 |
from US $0.87 |
||
|
17315A
|
17315A
17315-20010 Gasket, Intake Air Control Valve[04.2005 - 04.2008] 1MZFE..MNH1# |
17315-20010 |
US $14.69 |
||
|
17320
|
17320
17320-20011 Valve Assy, Intake Air Control, No.2[04.2005 - 04.2008] 1MZFE..MNH1# |
17320-20011 |
US $189.28 |
||
|
17861G
|
17861G
22271-20040 Gasket, Intake Air Connector[04.2005 - 04.2008] 1MZFE..MNH1# |
22271-20040 |
from US $4.78 |
||
|
18421
|
18421
18421-20010 Stay, Converter Protector, Lh[04.2005 - 06.2007] 1MZFE..MNH1# |
18421-20010 |
US $36.98 |
||
|
18431
|
18431
18431-20010 Insulator, Catalytic Converter, Upper[04.2005 - 06.2007] 1MZFE..MNH1# |
18431-20010 |
US $44.99 |
||
|
18432
|
18432
18432-20011 Insulator, Catalytic Converter, Lower[04.2005 - 06.2007] 1MZFE..MNH1# |
18432-20011 |
US $64.21 |
||
|
18460
|
18460
18460-20020 Converter Assy, Monolithic, Lh[04.2005 - 06.2007] 1MZFE..MNH1# |
18460-20020 |
US $1,170.62 |
||
|
25051
|
25051
25051-20030 Converter Sub-Assy, Exhaust Manifold[04.2005 - 06.2007] 1MZFE..MNH1# |
25051-20030 |
US $949.31 |
||
|
25051
|
25051
25051-20040 Converter Sub-Assy, Exhaust Manifold[06.2007 -] 1MZFE..MNH1# ＊１１５＝ＴＯＹＯＴＡ／０３−／Ｙ |
25051-20040 |
US $1,193.92 |
||
|
25586
|
25586
25586-20020 Insulator, Manifold Converter, No.1[04.2005 - 06.2007] 1MZFE..MNH1# |
25586-20020 |
US $35.67 |
||
|
25586
|
25586
25586-20060 Insulator, Manifold Converter, No.1[06.2007 -] 1MZFE..MNH1# |
25586-20060 |
US $55.62 |
||
|
91511B0620
|
91511B0620
91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) |
91511-B0620 |
from US $0.72 |
||
|
91511B0818
|
91511B0818
91511-B0818 BOLT FLANGE |
91511-B0818 |
US $2.51 |
||
|
91512B1020
|
91512B1020
91512-B1020 Bolt(For Front Transaxle Case Cover) |
91512-B1020 |
US $1.89 |
||
| replacement | |||||
|
91512B1020
|
91512B1020
90105-A0050 Bolt(For Front Transaxle Case Cover) |
90105-A0050 |
US $3.96 |
||
|
91622B1025
|
91622B1025
91622-B1025 Bolt(For Front Transaxle Case Cover) |
91622-B1025 |
US $3.05 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
9011908A06
|
9011908A06
90119-08A06 BOLT WWASHER |
90119-08A06 |
from US $0.92 |
||
|
9011008037
|
9011008037
90110-08037 New Genuine Part |
90110-08037 |
US $1.31 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.94 |
||
|
9011608147
|
9011608147
90116-08147 Bolt, Stud(For Timing Chain Cover Set) |
90116-08147 |
US $1.49 |
||
|
9011608349
|
9011608349
90116-08349 New Genuine Part |
90116-08349 |
US $0.61 |
||
|
9011610149
|
9011610149
90116-10149 Bolt, Stud(For Manifold To Exhaust Pipe) |
90116-10149 |
from US $1.85 |
||
|
9012606008
|
9012606008
90126-06008 STUD HEX LOBULAR |
90126-06008 |
from US $1.33 |
||
|
9012608013
|
9012608013
90126-08013 Bolt, Stud(For Manifold To Cylinder Head) |
90126-08013 |
US $3.79 |
||
|
9014880016
|
9014880016
90148-80016 New Genuine Part |
90148-80016 |
US $9.17 |
||
|
9014880017
|
9014880017
90148-80017 New Genuine Part |
90148-80017 |
US $1.49 |
||
|
9017906288
|
9017906288
90179-06288 NUT |
90179-06288 |
from US $0.86 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.78 |
||
|
9017908230
|
9017908230
90179-08230 New Genuine Part |
90179-08230 |
US $2.33 |
||
|
9017908233
|
9017908233
90179-08233 NUT |
90179-08233 |
from US $1.31 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.35 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $44.70 |
||
|
9017910147
|
9017910147
90179-10147 New Genuine Part |
90179-10147 |
US $2.33 |
||
|
9017910194
|
9017910194
90179-10194 NUT |
90179-10194 |
US $6.45 |
||
|
9040453076
|
9040453076
90404-53076 New Genuine Part |
90404-53076 |
US $6.55 |
||
|
9091790005
|
9091790005
90917-90005 New Genuine Part |
90917-90005 |
US $2.04 |
||
|
9091790006
|
9091790006
90917-90006 New Genuine Part |
90917-90006 |
US $3.06 |
||
|
9164180855
|
9164180855
91641-80855
Bolt
|
91641-80855 |
— | ||
|
9164281025
|
9164281025
91642-81025 BOLT WWASHER |
91642-81025 |
from US $0.98 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
