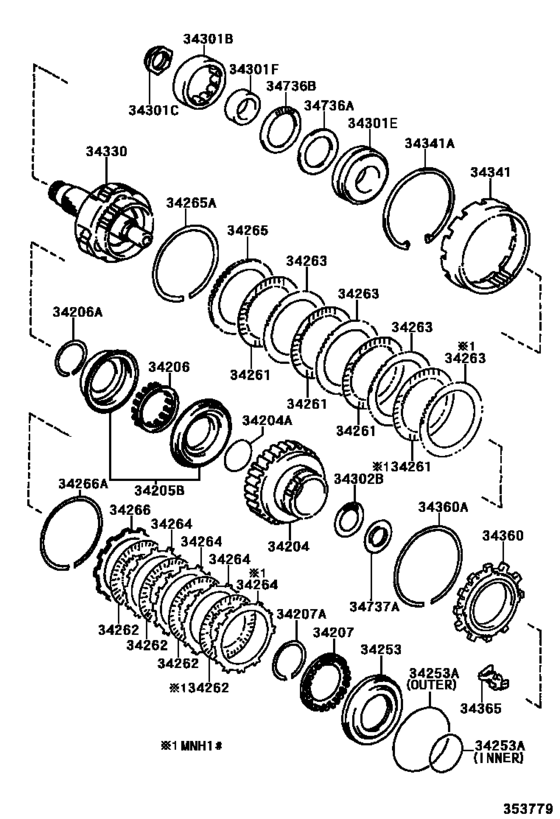

Overdrive Gear (Atm) ([05.2002 - ] U140E,U140F,U241E,U151E,U151F (0205- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2005 - 2008
- Sales region
- Japan
- Frame
- MNH15
- grade
- MZ
- ENGINE
- 1MZFE
- Model
- Alphard I
- From
- 04.2005
- To
- 04.2008
- Gear Shift Type
- 5FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard G/V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34204
|
34204
34204-28010 Drum Sub-Assy, Underdrive Clutch[04.2005 - 08.2006] MNH1# |
34204-28010 |
US $521.25 |
||
|
34204
|
34204
34204-28011 Drum Sub-Assy, Underdrive Clutch[08.2006 -] MNH1# |
34204-28011 |
US $361.09 |
||
|
34204A
|
34204A
90301-49007 Ring, O (For Underdrive Clutch Drum)[04.2005 -] ANH15,MNH1# |
90301-49007 |
US $1.43 |
||
|
34205B
|
34205B
34205-28010
Piston Set, Underdrive Clutch
[04.2005 -] ANH15,MNH1# |
34205-28010 |
— | ||
| replacement | |||||
|
34205B
|
34205B
34205-21010 Piston Set, Underdrive Clutch[04.2005 -] ANH15,MNH1# |
34205-21010 |
from US $54.59 |
||
|
34206
|
34206
34206-21010 Spring Sub-Assy, Underdrive Clutch Return[04.2005 -] ANH15,MNH1# |
34206-21010 |
US $8.01 |
||
|
34206A
|
34206A
90520-50009 Ring, Shaft Snap (For Underdrive Return Spring)[04.2005 -] ANH15,MNH1# |
90520-50009 |
US $1.89 |
||
|
34207
|
34207
34207-21010 Spring Sub-Assy, Underdrive Brake Return[04.2005 -] ANH1#,MNH1# |
34207-21010 |
US $10.47 |
||
|
34207A
|
34207A
90520-59004 Ring, Snap (For Underdrive Brake Return Spring)[04.2005 -] ANH1#,MNH1# |
90520-59004 |
from US $1.51 |
||
|
34253
|
34253
34253-28010 Piston, Underdrive Brake[04.2005 -] MNH1# |
34253-28010 |
US $17.47 |
||
|
34253A
|
34253A
90301-62007 Ring, O (For Underdrive Brake Piston)[04.2005 -] ANH1#,MNH1# 内側 |
90301-62007 |
US $2.80 |
||
|
34253A
|
34253A
90301-99084 Ring, O (For Underdrive Brake Piston)[04.2005 -] ANH15,MNH1# 外側 |
90301-99084 |
from US $2.62 |
||
|
34261
|
34261
34261-28010 Disc, Underdrive Clutch, No.1[04.2005 - 11.2006] MNH1# |
34261-28010 |
US $28.68 |
||
| replacement | |||||
|
34261
|
34261
34261-28030
Disc, Underdrive Clutch, No.1
[04.2005 - 11.2006] MNH1# |
34261-28030 |
— | ||
|
34261
|
34261
34261-28030
Disc, Underdrive Clutch, No.1
[11.2006 -] MNH1# |
34261-28030 |
— | ||
|
34262
|
34262
34262-33010 Disc, Underdrive Clutch, No.2[04.2005 -] MNH1# |
34262-33010 |
US $26.21 |
||
|
34263
|
34263
34263-28010 Plate, Underdrive Clutch, No.1[04.2005 -] MNH1# |
34263-28010 |
US $13.25 |
||
|
34264
|
34264
34264-28010 Plate, Underdrive Clutch, No.2[04.2005 -] MNH1# |
34264-28010 |
from US $10.48 |
||
|
34265
|
34265
34265-21020 Flange, Underdrive Clutch, No.1[04.2005 -] ANH15,MNH1# 厚さ＝３．０ マーク １ |
34265-21020 |
US $24.98 |
||
|
34265
|
34265
34265-21030 Flange, Underdrive Clutch, No.1[04.2005 -] ANH15,MNH1# 厚さ＝３．２ マーク ２ |
34265-21030 |
US $22.42 |
||
|
34265
|
34265
34265-21040 Flange, Underdrive Clutch, No.1[04.2005 -] ANH15,MNH1# 厚さ＝３．４ マーク ３ |
34265-21040 |
from US $33.55 |
||
|
34265
|
34265
34265-21050 Flange, Underdrive Clutch, No.1[08.2006 -] ANH15,MNH1# 厚さ＝３．６ マーク ６ |
34265-21050 |
from US $25.33 |
||
|
34265
|
34265
34265-21060 Flange, Underdrive Clutch, No.1[08.2006 -] MNH1# 厚さ＝２．８ マーク ０ |
34265-21060 |
US $21.40 |
||
|
34265
|
34265
34265-28070 Flange, Underdrive Clutch, No.1[08.2006 -] ANH15,MNH1# 厚さ＝２．９ マーク ７ |
34265-28070 |
US $21.40 |
||
|
34265
|
34265
34265-28080 Flange, Underdrive Clutch, No.1[08.2006 -] ANH15,MNH1# 厚さ＝３．５ マーク ８ |
34265-28080 |
US $24.32 |
||
|
34265
|
34265
34265-33010 Flange, Underdrive Clutch, No.1[04.2005 -] MNH1# 厚さ＝３．１ マーク ４ |
34265-33010 |
US $21.84 |
||
|
34265
|
34265
34265-33020 Flange, Underdrive Clutch, No.1[04.2005 -] MNH1# 厚さ＝３．３ マーク ５ |
34265-33020 |
US $23 |
||
|
34265A
|
34265A
90520-99029 Ring, Hole Snap (For Underdrive Clutch Flange No.1)[04.2005 -] ANH15,MNH1# |
90520-99029 |
US $2.77 |
||
|
34266
|
34266
34266-21010 Flange, Underdrive Clutch, No.2[04.2005 -] ANH15,MNH1# 厚さ＝３．０ |
34266-21010 |
US $19.93 |
||
|
34266
|
34266
34266-21020 Flange, Underdrive Clutch, No.2[04.2005 -] ANH15,MNH1# 厚さ＝３．２ |
34266-21020 |
from US $21.40 |
||
|
34266
|
34266
34266-21030 Flange, Underdrive Clutch, No.2[04.2005 -] ANH15,MNH1# 厚さ＝３．４ |
34266-21030 |
US $22.42 |
||
|
34266A
|
34266A
90520-99032 Ring, Hole Snap (For Underdrive Clutch Flange No.2)[04.2005 -] ANH15,MNH1# |
90520-99032 |
US $2.77 |
||
|
34301B
|
34301B
90365-53001 Bearing, Cylindrical Roller, No.1 (For Underdrive)[04.2005 -] ANH15,MNH1# |
90365-53001 |
US $58.24 |
||
|
34301C
|
34301C
90179-32002 Nut (For Underdrive Input Shaft)[04.2005 -] ANH1#,MNH1# |
90179-32002 |
from US $1.40 |
||
|
34301E
|
34301E
90363-43002 Bearing, Tapered Roller (For Underdrive)[04.2005 -] MNH1# |
90363-43002 |
US $59.70 |
||
|
34301F
|
34301F
34733-21010 Race, Cylindrical Roller Bearing, Inner[04.2005 -] ANH15,MNH1# |
34733-21010 |
US $21.40 |
||
|
34302B
|
34302B
90374-40003 Bearing, Needle Roller(For Underdrive Planetary Sun Gear)[04.2005 -] ANH15,MNH1# |
90374-40003 |
from US $13.61 |
||
|
34330
|
34330
34330-33020
Gear Assy, Underdrive Planetary
[04.2005 -] MNH1# |
34330-33020 |
— | ||
|
34341
|
34341
34341-33020
Gear, Underdrive Planetary Ring
[04.2005 -] MNH1# |
34341-33020 |
— | ||
|
34341A
|
34341A
90521-99120 Ring, Hole Snap (For Underdrive Planetary Ring)[04.2005 -] ANH15,MNH1# |
90521-99120 |
US $3.64 |
||
|
34360
|
34360
34360-28010
Clutch Assy, Underdrive 1 Way
[04.2005 -] ANH15,MNH1# |
34360-28010 |
— | ||
|
34360A
|
34360A
90520-99031 Ring, Shaft Snap (For Underdrive 1 Way Clutch)[04.2005 -] ANH15,MNH1# |
90520-99031 |
US $3.64 |
||
|
34365
|
34365
34365-48011 Retainer, Outer Race[04.2005 -] ANH15,MNH1# |
34365-48011 |
US $0.58 |
||
|
34736A
|
34736A
34736-21010 Race, Thrust Bearing Underdrive, No.2[04.2005 -] ANH15,MNH1# 厚さ＝３．５ |
34736-21010 |
US $28.83 |
||
|
34736A
|
34736A
34736-21020
Race, Thrust Bearing Underdrive, No.2
[04.2005 -] ANH15,MNH1# 厚さ＝３．８ |
34736-21020 |
— | ||
|
34736B
|
34736B
90374-67001 Bearing, Thrust Needle Roller[04.2005 -] ANH15,MNH1# |
90374-67001 |
US $17.47 |
||
|
34737A
|
34737A
34737-21010 Race, Thrust Bearing Underdrive, No.3[04.2005 -] ANH1#,MNH1# |
34737-21010 |
US $11.07 |
||
