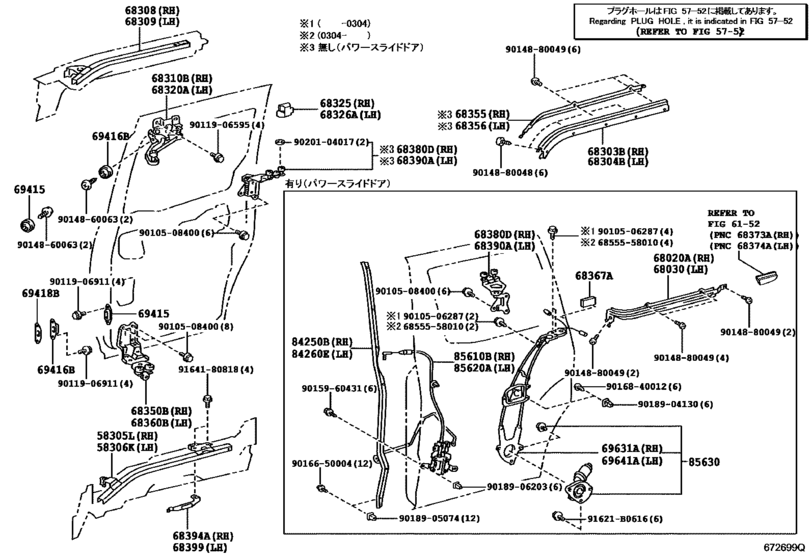

Slide Roller & Rail ([05.2002 - ] (0205- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2005 - 2008
- Sales region
- Japan
- Frame
- MNH15
- grade
- MZ
- ENGINE
- 1MZFE
- Model
- Alphard I
- From
- 04.2005
- To
- 04.2008
- Gear Shift Type
- 5FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard G/V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58305L
|
58305L
58305-58010 Guide Sub-Assy, Slide Door Lower Roller, Rh[04.2005 - 04.2008] ANH1#,MNH1# |
58305-58010 |
US $54.89 |
||
|
58306K
|
58306K
58306-58010 Guide Sub-Assy, Slide Door Lower Roller, Lh[04.2005 - 04.2008] ANH1#,MNH1# |
58306-58010 |
US $54.89 |
||
|
68020A
|
68020A
68020-58010 Guide Assy, Slide Door Cable, Rh[04.2005 -] MNH1#..MZ; ANH1#,MNH1#..AS,AX,MS,MX パワースライドドア（運転席側，助手席側）有り |
68020-58010 |
from US $38.62 |
||
|
68030
|
68030
68030-58010 Guide Assy, Slide Door Cable[04.2005 -] MNH1#..MZ; ANH1#,MNH1#..AX,MX パワースライドドア（助手席側）有り; ANH10..AX;MNH10..07S..MX パワースライドドア（助手席側）＆バックドアクローザ有り; ANH1#,MNH1#..AS,AX,MS,MX パワースライドドア（運転席側，助手席側）有り |
68030-58010 |
US $97.84 |
||
|
68303B
|
68303B
68303-58012 Rail Sub-Assy, Slide Door, Center Rh[04.2005 -] ANH1#,MNH1# |
68303-58012 |
US $152.88 |
||
|
68304B
|
68304B
68304-58012 Rail Sub-Assy, Slide Door, Center Lh[04.2005 -] ANH1#,MNH1# |
68304-58012 |
US $152.88 |
||
|
68308
|
68308
68308-58011 Rail Sub-Assy, Slide Door, Upper Rh[04.2005 - 04.2008] ANH1#,MNH1# |
68308-58011 |
US $49.80 |
||
|
68309
|
68309
68309-58011 Rail Sub-Assy, Slide Door, Upper Lh[04.2005 - 04.2008] ANH1#,MNH1# |
68309-58011 |
US $49.80 |
||
|
68310B
|
68310B
68310-58010 Roller Assy, Slide Door, Upper Rh[04.2005 -] ANH1#,MNH1# |
68310-58010 |
US $72.80 |
||
|
68320A
|
68320A
68320-58010 Roller Assy, Slide Door, Upper, Lh[04.2005 -] ANH1#,MNH1# |
68320-58010 |
US $72.80 |
||
|
68325
|
68325
68325-58014
Cushion, Slide Door Upper Rail, Rh
[04.2005 - 03.2006] ANH1#,MNH1# |
68325-58014 |
— | ||
| replacement | |||||
|
68325
|
68325
68325-58015 Cushion, Slide Door Upper Rail, Rh[04.2005 - 03.2006] ANH1#,MNH1# |
68325-58015 |
US $12.23 |
||
|
68325
|
68325
68325-58015 Cushion, Slide Door Upper Rail, Rh[04.2006 -] ANH1#,MNH1# |
68325-58015 |
US $12.23 |
||
|
68326A
|
68326A
68326-58014
Cushion, Slide Door Upper Rail, Lh
[04.2005 - 03.2006] ANH1#,MNH1# |
68326-58014 |
— | ||
| replacement | |||||
|
68326A
|
68326A
68326-58015 Cushion, Slide Door Upper Rail, Lh[04.2005 - 03.2006] ANH1#,MNH1# |
68326-58015 |
US $12.23 |
||
|
68326A
|
68326A
68326-58015 Cushion, Slide Door Upper Rail, Lh[04.2006 -] ANH1#,MNH1# |
68326-58015 |
US $12.23 |
||
|
68350B
|
68350B
68350-58010 Roller Assy, Slide Door, Lower Rh[04.2005 -] ANH1#,MNH1# |
68350-58010 |
US $174.08 |
||
|
68360B
|
68360B
68360-58010 Roller Assy, Slide Door, Lower Lh[04.2005 -] ANH1#,MNH1# |
68360-58010 |
from US $186.37 |
||
|
68367A
|
68367A
68367-58010 Pad, Slide Door Center Rail[04.2005 - 04.2008] MNH1#..MZ; ANH1#,MNH1#..AS,AX,MS,MX パワースライドドア（運転席側，助手席側）有り |
68367-58010 |
US $1.10 |
||
|
68380D
|
68380D
68380-58021 Hinge Assy, Slide Door, Center Rh[04.2005 -] MNH1#..MZ; ANH1#,MNH1#..AS,AX,MS,MX パワースライドドア（運転席側，助手席側）有り |
68380-58021 |
US $56.38 |
||
|
68390A
|
68390A
68390-58021 Hinge Assy, Slide Door, Center Lh[04.2005 -] MNH1#..MZ; ANH1#,MNH1#..AX,MX パワースライドドア（助手席側）有り; ANH10..AX;MNH10..07S..MX パワースライドドア（助手席側）＆バックドアクローザ有り; ANH1#,MNH1#..AS,AX,MS,MX パワースライドドア（運転席側，助手席側）有り |
68390-58021 |
US $56.38 |
||
|
68394A
|
68394A
68394-28020 Plate, Slide Door Lower Rail, Rh[04.2005 -] ANH1#,MNH1# |
68394-28020 |
US $3.20 |
||
|
68399
|
68399
68399-28030 Plate, Slide Door Lower Rail, Lh[04.2005 -] ANH1#,MNH1# |
68399-28030 |
US $3.20 |
||
|
69415
|
69415
69415-26020 Stopper, Slide Door Down Female[04.2005 -] ANH1#,MNH1# 下側 |
69415-26020 |
from US $11.60 |
||
|
69415
|
69415
69415-58010
Stopper, Slide Door Down Female
[04.2005 - 04.2006] ANH1#,MNH1# 上側 |
69415-58010 |
— | ||
| replacement | |||||
|
69415
|
69415
69415-58011 Stopper, Slide Door Down Female[04.2005 - 04.2006] ANH1#,MNH1# 上側 |
69415-58011 |
US $12.19 |
||
|
69415
|
69415
69415-58011 Stopper, Slide Door Down Female[05.2006 -] ANH1#,MNH1# 上側 |
69415-58011 |
US $12.19 |
||
|
69416B
|
69416B
69046-58010
Stopper, Slide Door Down Male
[10.2005 -] ANH1#,MNH1# 下側 |
69046-58010 |
— | ||
| replacement | |||||
|
69416B
|
69416B
69046-28020 Stopper, Slide Door Down MaleSLIDE DOOR DOWN MALE [10.2005 -] ANH1#,MNH1# 下側 |
69046-28020 |
from US $4.66 |
||
|
69416B
|
69416B
69416-26020 Stopper, Slide Door Down Male[04.2005 - 10.2005] ANH1#,MNH1# 下側 |
69416-26020 |
from US $10.12 |
||
|
69416B
|
69416B
69416-58010 Stopper, Slide Door Down Male[04.2005 -] ANH1#,MNH1# 上側 |
69416-58010 |
US $7.43 |
||
|
69418B
|
69418B
69418-28060 Shim, Slide Door Down Stop Male[04.2005 -] ANH1#,MNH1# |
69418-28060 |
US $6.45 |
||
|
69631A
|
69631A
69631-58010 Control, Slide Door Attachment, RhSLIDE DOOR ATTACHMENT, RH [04.2005 - 04.2008] MNH1#..MZ; ANH1#,MNH1#..AS,AX,MS,MX パワースライドドア（運転席側，助手席側）有り |
69631-58010 |
US $182.40 |
||
|
69641A
|
69641A
69641-58010 Control, Slide Door Attachment, LhSLIDE DOOR ATTACHMENT, LH [04.2005 - 04.2008] MNH1#..MZ; ANH1#,MNH1#..AX,MX パワースライドドア（助手席側）有り; ANH10..AX;MNH10..07S..MX パワースライドドア（助手席側）＆バックドアクローザ有り; ANH1#,MNH1#..AS,AX,MS,MX パワースライドドア（運転席側，助手席側）有り |
69641-58010 |
from US $182.40 |
||
|
84250B
|
84250B
84250-58010 Sensor Assy, Power Slide Door, Rh[04.2005 -] MNH1#..MZ; ANH1#,MNH1#..AS,AX,MS,MX パワースライドドア（運転席側，助手席側）有り |
84250-58010 |
US $458.64 |
||
|
84260E
|
84260E
84260-58010 Sensor Assy, Power Slide Door[04.2005 -] MNH1#..MZ; ANH1#,MNH1#..AX,MX パワースライドドア（助手席側）有り; ANH10..AX;MNH10..07S..MX パワースライドドア（助手席側）＆バックドアクローザ有り; ANH1#,MNH1#..AS,AX,MS,MX パワースライドドア（運転席側，助手席側）有り |
84260-58010 |
US $445.54 |
||
|
85610B
|
85610B
85610-58010
Motor Assy, Slide Door Lock Release, Rh
[04.2005 - 03.2007] MNH1#..MZ; ANH1#,MNH1#..AS,AX,MS,MX パワースライドドア（運転席側，助手席側）有り |
85610-58010 |
— | ||
| replacement | |||||
|
85610B
|
85610B
85610-58011 Motor Assy, Slide Door Lock Release, Rh[04.2005 - 03.2007] MNH1#..MZ; ANH1#,MNH1#..AS,AX,MS,MX パワースライドドア（運転席側，助手席側）有り |
85610-58011 |
US $408.72 |
||
|
85610B
|
85610B
85610-58011 Motor Assy, Slide Door Lock Release, Rh[04.2007 -] MNH1#..MZ; ANH1#,MNH1#..AS,AX,MS,MX パワースライドドア（運転席側，助手席側）有り; ANH1#,MNH1#..08S..(AS,MS) パワースライドドア（運転席側，助手席側）＆パワーバックドア有り |
85610-58011 |
US $408.72 |
||
|
85620A
|
85620A
85620-58020
Motor Assy, Slide Door Lock Release, Lh
[04.2005 - 03.2007] MNH1#..MZ; ANH1#,MNH1#..AX,MX パワースライドドア（助手席側）有り; ANH10..AX;MNH10..07S..MX パワースライドドア（助手席側）＆バックドアクローザ有り; ANH1#,MNH1#..AS,AX,MS,MX パワースライドドア（運転席側，助手席側）有り |
85620-58020 |
— | ||
| replacement | |||||
|
85620A
|
85620A
85620-58021 Motor Assy, Slide Door Lock Release, Lh[04.2005 - 03.2007] MNH1#..MZ; ANH1#,MNH1#..AX,MX パワースライドドア（助手席側）有り; ANH10..AX;MNH10..07S..MX パワースライドドア（助手席側）＆バックドアクローザ有り; ANH1#,MNH1#..AS,AX,MS,MX パワースライドドア（運転席側，助手席側）有り |
85620-58021 |
US $408.72 |
||
|
85620A
|
85620A
85620-58021 Motor Assy, Slide Door Lock Release, Lh[04.2007 -] MNH1#..MZ; ANH1#,MNH1#..AX,MX パワースライドドア（助手席側）有り; ANH10..AX;MNH10..07S..MX パワースライドドア（助手席側）＆バックドアクローザ有り; ANH1#,MNH1#..AS,AX,MS,MX パワースライドドア（運転席側，助手席側）有り; ANH1#,MNH1#..08S..(AS,MS) パワースライドドア（運転席側，助手席側）＆パワーバックドア有り |
85620-58021 |
US $408.72 |
||
|
85630
|
85630
85005-58012
Motor Assy, Slide Door
[04.2005 - 06.2007] MNH1#..MZ 右側; ANH1#,MNH1#..AS,AX,MS,MX パワースライドドア（運転席側，助手席側）有り,右側 |
85005-58012 |
— | ||
| replacement | |||||
|
85630
|
85630
85005-58013 Motor Assy, Slide Door (Rh)[04.2005 - 06.2007] MNH1#..MZ 右側; ANH1#,MNH1#..AS,AX,MS,MX パワースライドドア（運転席側，助手席側）有り,右側 |
85005-58013 |
US $1,196.24 |
||
|
85630
|
85630
85005-58013 Motor Assy, Slide Door (Rh)[07.2007 - 04.2008] MNH1#..MZ 右側; ANH1#,MNH1#..AS,AX,MS,MX パワースライドドア（運転席側，助手席側）有り,右側; ANH1#,MNH1#..08S..(AS,MS) パワースライドドア（運転席側，助手席側）＆パワーバックドア有り,右側; ANH1#,MNH1#..08S..(AS,MS) パワースライドドア（運転席側，助手席側）＆バックドアクローザ有り,右側 |
85005-58013 |
US $1,196.24 |
||
|
85630
|
85630
85006-58012
Motor Assy, Slide Door
[04.2005 - 06.2007] MNH1#..MZ 左側; ANH1#,MNH1#..AX,MX パワースライドドア（助手席側）有り,左側; ANH10..AX;MNH10..07S..MX パワースライドドア（助手席側）＆バックドアクローザ有り,左側; ANH1#,MNH1#..AS,AX,MS,MX パワースライドドア（運転席側，助手席側）有り,左側 |
85006-58012 |
— | ||
| replacement | |||||
|
85630
|
85630
85006-58013 Motor Assy, Slide Door (Lh)[04.2005 - 06.2007] MNH1#..MZ 左側; ANH1#,MNH1#..AX,MX パワースライドドア（助手席側）有り,左側; ANH10..AX;MNH10..07S..MX パワースライドドア（助手席側）＆バックドアクローザ有り,左側; ANH1#,MNH1#..AS,AX,MS,MX パワースライドドア（運転席側，助手席側）有り,左側 |
85006-58013 |
US $1,196.24 |
||
|
85630
|
85630
85006-58013 Motor Assy, Slide Door (Lh)[07.2007 - 04.2008] MNH1#..MZ 左側; ANH1#,MNH1#..AX,MX パワースライドドア（助手席側）有り,左側; ANH10..AX;MNH10..07S..MX パワースライドドア（助手席側）＆バックドアクローザ有り,左側; ANH1#,MNH1#..AS,AX,MS,MX パワースライドドア（運転席側，助手席側）有り,左側; ANH1#,MNH1#..08S..(AS,MS) パワースライドドア（運転席側，助手席側）＆パワーバックドア有り,左側; ANH1#,MNH |
85006-58013 |
US $1,196.24 |
||
|
91621B0616
|
91621B0616
91621-B0616 Bolt |
91621-B0616 |
from US $0.78 |
||
|
6855558010
|
6855558010
68555-58010 Bolt, Door Stay |
68555-58010 |
US $1.24 |
||
|
9010506287
|
9010506287
90105-06287 BOLT FLANGE |
90105-06287 |
US $0.44 |
||
|
9010508400
|
9010508400
90105-08400 New Genuine Part |
90105-08400 |
US $1.97 |
||
|
9011906595
|
9011906595
90119-06595 BOLT WWASHER |
90119-06595 |
US $3.94 |
||
|
9011906911
|
9011906911
90119-06911 BOLT WWASHER |
90119-06911 |
from US $0.92 |
||
|
9014860063
|
9014860063
90148-60063 New Genuine Part |
90148-60063 |
US $1.08 |
||
|
9014880048
|
9014880048
90148-80048 New Genuine Part |
90148-80048 |
US $5.82 |
||
|
9014880049
|
9014880049
90148-80049 New Genuine Part |
90148-80049 |
US $1.08 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.74 |
||
|
9016650004
|
9016650004
90166-50004 Screw Hex Lobular |
90166-50004 |
from US $0.60 |
||
|
9016840012
|
9016840012
90168-40012 SCREW |
90168-40012 |
US $2.15 |
||
|
9018904130
|
9018904130
90189-04130 GROMMET SCREW |
90189-04130 |
from US $1.46 |
||
|
9018905074
|
9018905074
90189-05074 New Genuine Part |
90189-05074 |
US $1.61 |
||
|
9018906203
|
9018906203
90189-06203 GROMMET SCREW |
90189-06203 |
from US $0.74 |
||
|
9020104017
|
9020104017
90201-04017 New Genuine Part |
90201-04017 |
US $1.60 |
||
|
9164180818
|
9164180818
91641-80818 BOLT WWASHER |
91641-80818 |
from US $0.78 |
||
