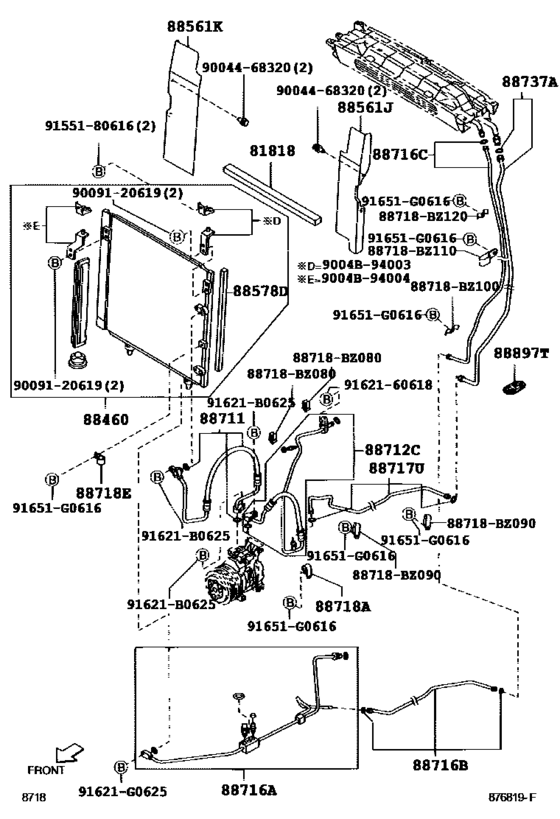

Heating & Air Conditioning - Cooler Piping ([10.2004 - 08.2006] DUAL A/C (0410-0608)MA) Diagram Toyota AVANZA
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- F601
- grade
- GL
- body
- VAN
- ENGINE
- K3VE
- DESTINATION
- MA
- From
- 10.2004
- To
- 08.2006
- Gear Shift Type
- 5F
- Model Mark
- PS1
- Driver's Position
- RHD
- Fuel Induction
- WVVT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81818
|
81818
81818-BZ010
Packing
[12.2003 - 08.2006] F601 |
81818-BZ010 |
— | ||
|
88460
|
88460
88460-BZ030
Condenser Assy, Cooler
[10.2004 - 08.2006] F601..MA |
88460-BZ030 |
— | ||
| replacement | |||||
|
88460
|
88460
88460-BZ090
Condenser Assy, Cooler
[10.2004 - 08.2006] F601..MA |
88460-BZ090 |
— | ||
|
88561J
|
88561J
88561-BZ010
Grille, Air Inlet No.1
[12.2003 - 08.2006] F601..5F..(IDN,MA) |
88561-BZ010 |
— | ||
|
88561K
|
88561K
88561-BZ020
Grille, Air Inlet No.2
[12.2003 - 08.2006] F601..5F..(IDN,MA) |
88561-BZ020 |
— | ||
|
88578D
|
88578D
9004B-54001
Packing, Cooler Pipe, No.1
[12.2003 - 08.2006] F601..4AT..MA;F601..5F..(IDN,MA) |
9004B-54001 |
— | ||
|
88711
|
88711
88711-BZ050
Hose, Cooler Refrigerant Discharge, No.1
[10.2004 - 08.2006] F601..5F..MA |
88711-BZ050 |
— | ||
|
88712C
|
88712C
88712-BZ040
Hose, Suction
[10.2004 - 08.2006] F601..MA |
88712-BZ040 |
— | ||
|
88716A
|
88716A
88716-BZ060
Pipe, Cooler Refrigerant Liquid, A
[10.2004 - 08.2006] F601..5F..MA |
88716-BZ060 |
— | ||
|
88716B
|
88716B
88716-BZ090
Pipe, Cooler Refrigerant Liquid, B
[10.2004 - 08.2006] F601..MA |
88716-BZ090 |
— | ||
|
88716C
|
88716C
88716-BZ100
Pipe, Cooler Refrigerant Liquid, C
[10.2004 - 08.2006] F601..MA |
88716-BZ100 |
— | ||
|
88717U
|
88717U
88717-BZ040
Tube, Suction, No.1
[10.2004 - 08.2006] F601..MA |
88717-BZ040 |
— | ||
|
88718A
|
88718A
88718-BZ060
Clamp(For Cooler Refrigerant Pipe), No.1
[10.2004 - 08.2006] F601..MA |
88718-BZ060 |
— | ||
|
88718E
|
88718E
88718-BZ070
Clamp(For Cooler Refrigerant Pipe), No.5
[10.2004 - 08.2006] F601..MA |
88718-BZ070 |
— | ||
|
88737A
|
88737A
88717-BZ050
Tube, Suction, A(For Cool Box)
[10.2004 - 08.2006] F601..MA |
88717-BZ050 |
— | ||
|
88897T
|
88897T
88897-BZ020
Grommet, Cooler
[10.2004 - 08.2006] F601..MA |
88897-BZ020 |
— | ||
|
9004B94003
|
9004B94003
9004B-94003
New Genuine Part
|
9004B-94003 |
— | ||
|
9004B94004
|
9004B94004
9004B-94004
New Genuine Part
|
9004B-94004 |
— | ||
|
88718BZ080
|
88718BZ080
88718-BZ080
Pipe, Cooler Refrigerant Suction, No.2
|
88718-BZ080 |
— | ||
|
88718BZ090
|
88718BZ090
88718-BZ090
Pipe, Cooler Refrigerant Suction, No.2
|
88718-BZ090 |
— | ||
|
88718BZ100
|
88718BZ100
88718-BZ100
Pipe, Cooler Refrigerant Suction, No.2
|
88718-BZ100 |
— | ||
|
88718BZ110
|
88718BZ110
88718-BZ110
Pipe, Cooler Refrigerant Suction, No.2
|
88718-BZ110 |
— | ||
|
88718BZ120
|
88718BZ120
88718-BZ120
Clamp(For Cooler Refrigerant Pipe), No.4
|
88718-BZ120 |
— | ||
|
91621B0625
|
91621B0625
91621-B0625 New Genuine Part |
91621-B0625 |
US $1.08 |
||
|
91621G0625
|
91621G0625
91621-G0625 New Genuine Part |
91621-G0625 |
US $0.73 |
||
|
91651G0616
|
91651G0616
91651-G0616 BOLT WWASHER |
91651-G0616 |
US $1.43 |
||
|
9004468320
|
9004468320
90044-68320
Clip, Engine Under Cover, No.2
|
90044-68320 |
— | ||
| replacement | |||||
|
9004468320
|
9004468320
90044-68378 CLIP |
90044-68378 |
from US $0.57 |
||
|
9009120619
|
9009120619
90091-20619 BOLT |
90091-20619 |
US $0.28 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.63 |
||
|
9162160618
|
9162160618
91621-60618 New Genuine Part |
91621-60618 |
US $1.46 |
||
| replacement | |||||
|
9162160618
|
9162160618
91651-B0620 New Genuine Part |
91651-B0620 |
US $1.25 |
||
